1970 chrysler newport How many vents on stock gas tank?

[BAD69FURY]

anyone know how many vents a stock 383 1970 newport gas tank has?

thinking of ordering one of these below:

https://www.classiccarautoparts.com/product/1967-1973-plymouth-dodge-chrysler-gas-tank-3/



[Snotty]

Two on 49-State cars, 4 on California cars.



[Lilbluecoupe71]

Herb's Parts: 67-70 C BODY 23 GALLON, 2 VENT GAS TANK, Gas Tanks, CHCTNK200



[ayilar]

How about a 440HP (TNT) -- 2 or 4 vents? East Coast car from new.



[Snotty]

How about a 440HP (TNT) -- 2 or 4 vents? East Coast car from new.

According to the 1970 Service Manual, there are two vents on the CAS tank and four on the ECS tank. All from California had the latter. I would bet yours would be the former, and therefore, two vents. Your "Vapor Liquid Separator" will tell by how many tubes it has going into it, 2 or 4. I guess that might be three or five, one goes to the engine bay.

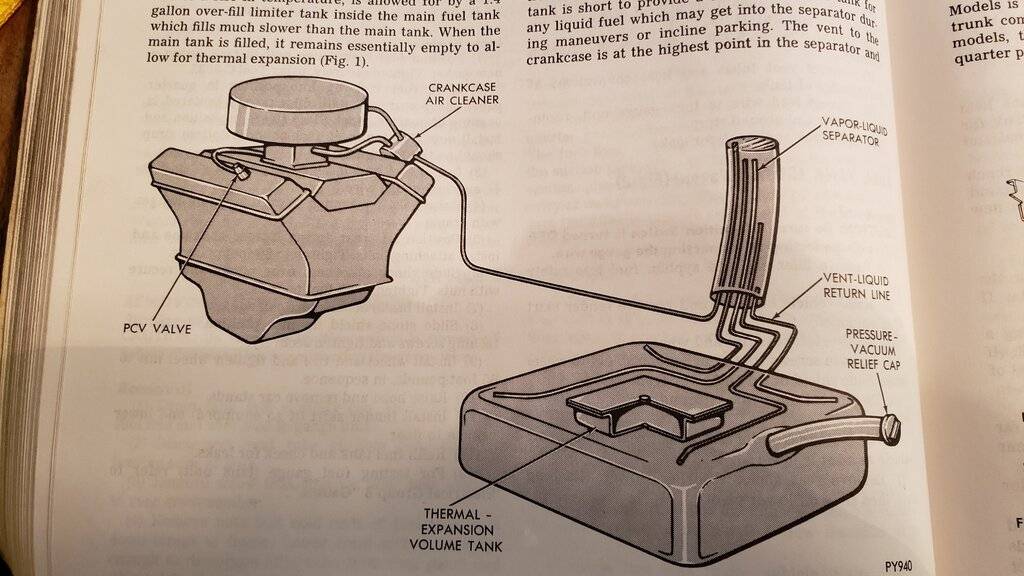

Here's a picture for the manual illustrating the ECS system with 4 vents.



[Snotty]

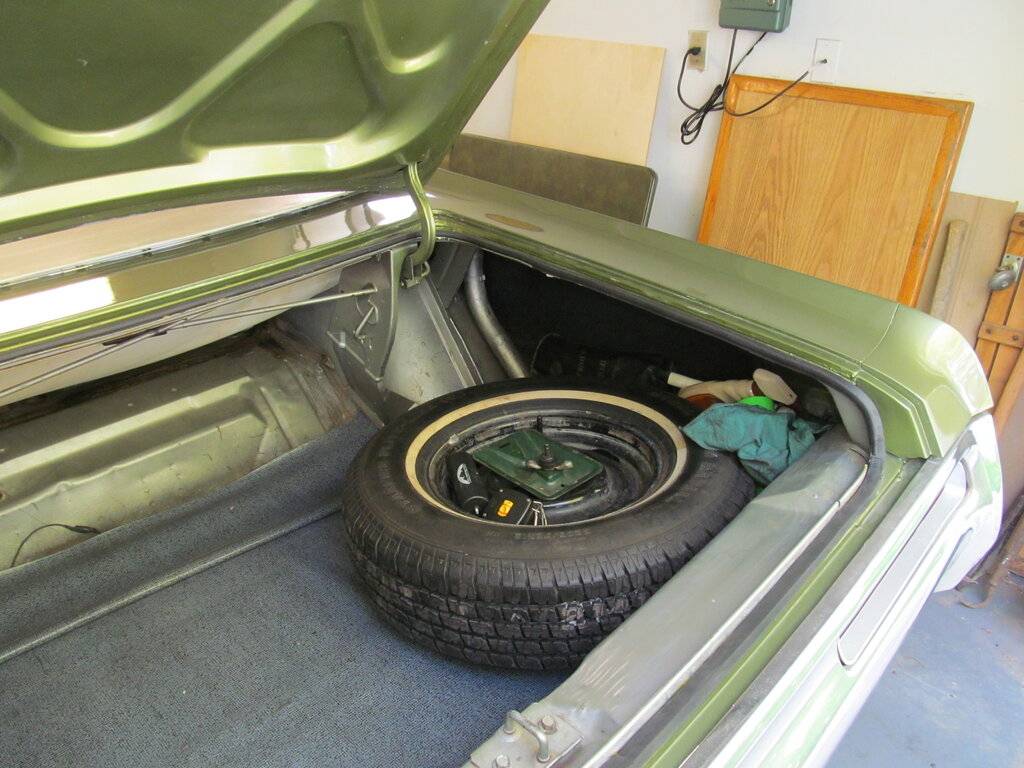

Of you have that separator, you will be able to see it in your trunk.
