1972 360 Rocker Shaft End Plugs

[1970FuryConv]

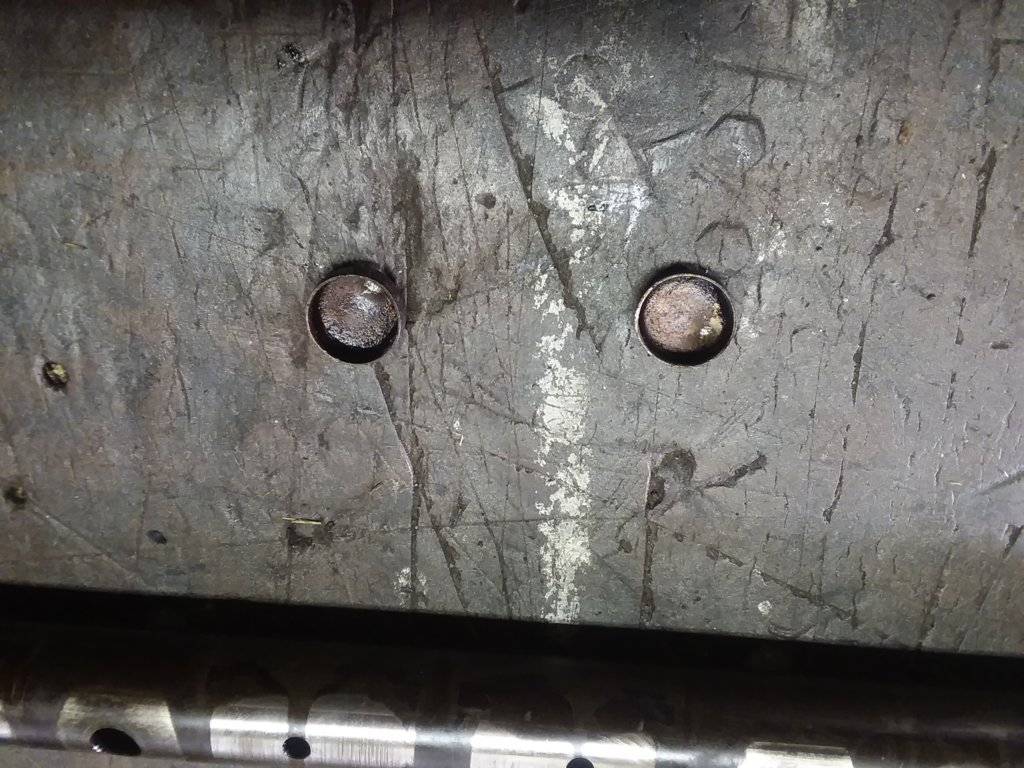

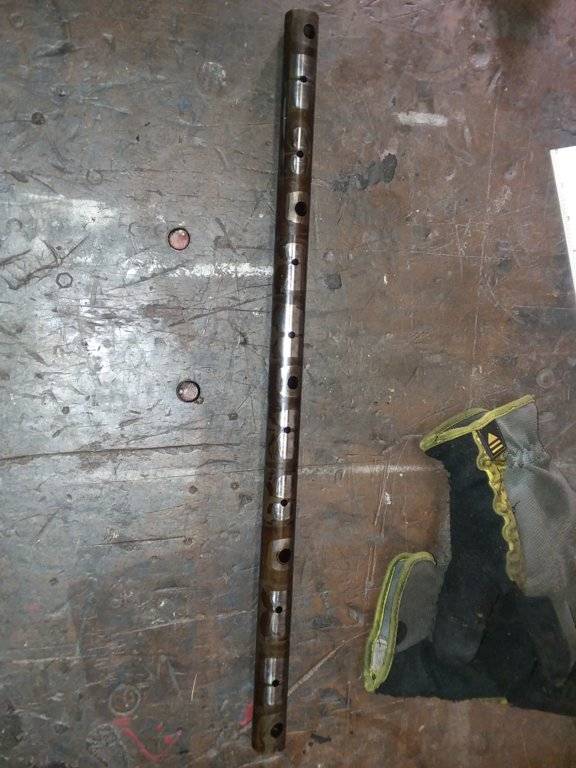

I replaced the valve seals on my 1972 Fury 360 V-8. Before reinstalling the rocker shaft, I thought it was a good idea to clean out the shaft, so I knocked the end plugs out of each end of the right side shaft and cleaned it out with brake cleaner and an engine brush.

I measured the end caps at about 5/8 inch in diameter, maybe slightly less. I found Mopar Performance P5249633 end caps, but they don’t give any specifications and I have to order by mail. Does anyone know what the correct diameter is for these end caps and whether NAPA, AutoZone, or Advance auto parts stocks them? Thanks

Mopar Performance Rocker Shaft End Plugs



[65sporty]

Did you take them to your local auto parts? Most have a large selection of sizes



[1970FuryConv]

I haven't taken them anywhere yet. At least in my area, auto parts store people have minimal knowledge, and I have to help them figure things out. I thought if I knew the size in advance, it would be easier.

I will probably try to take the plugs over to the store anyway and hope for the best



[Big_John]

I think the plugs are a little "beefier" and deeper than any of the standard freeze plugs that may or may not fit.

I'd play it safe and buy the MP plugs.



[1970FuryConv]

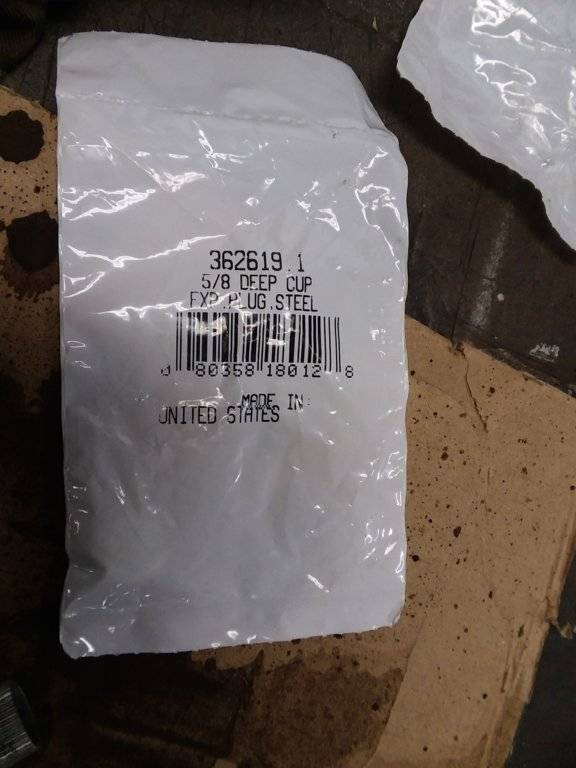

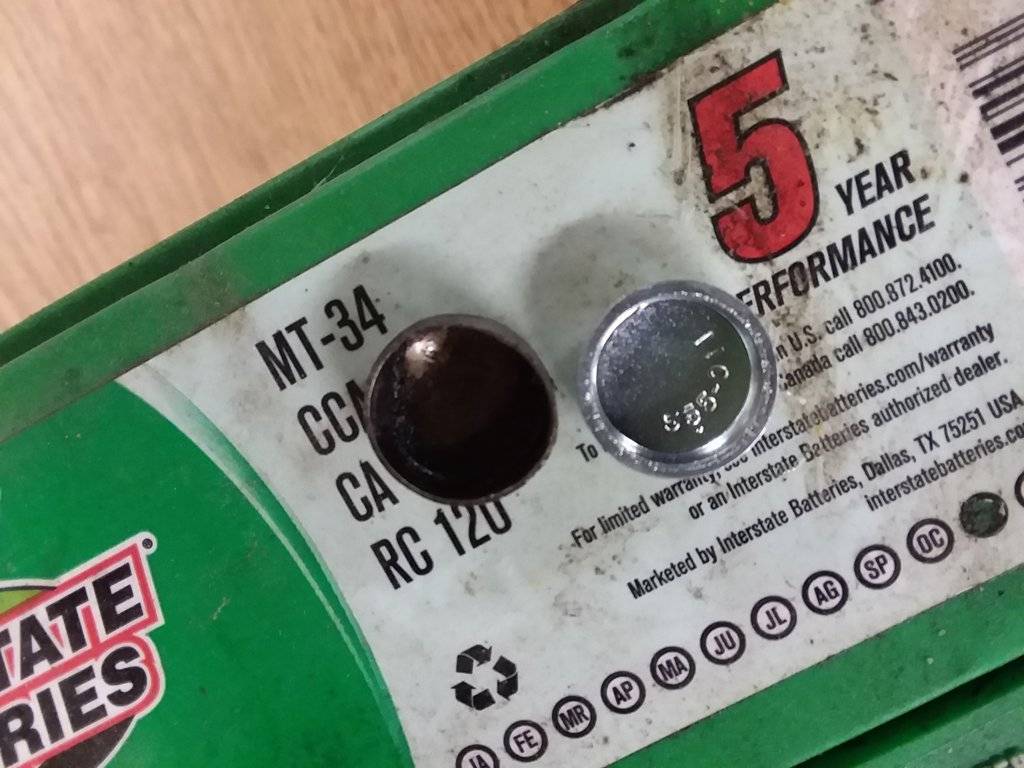

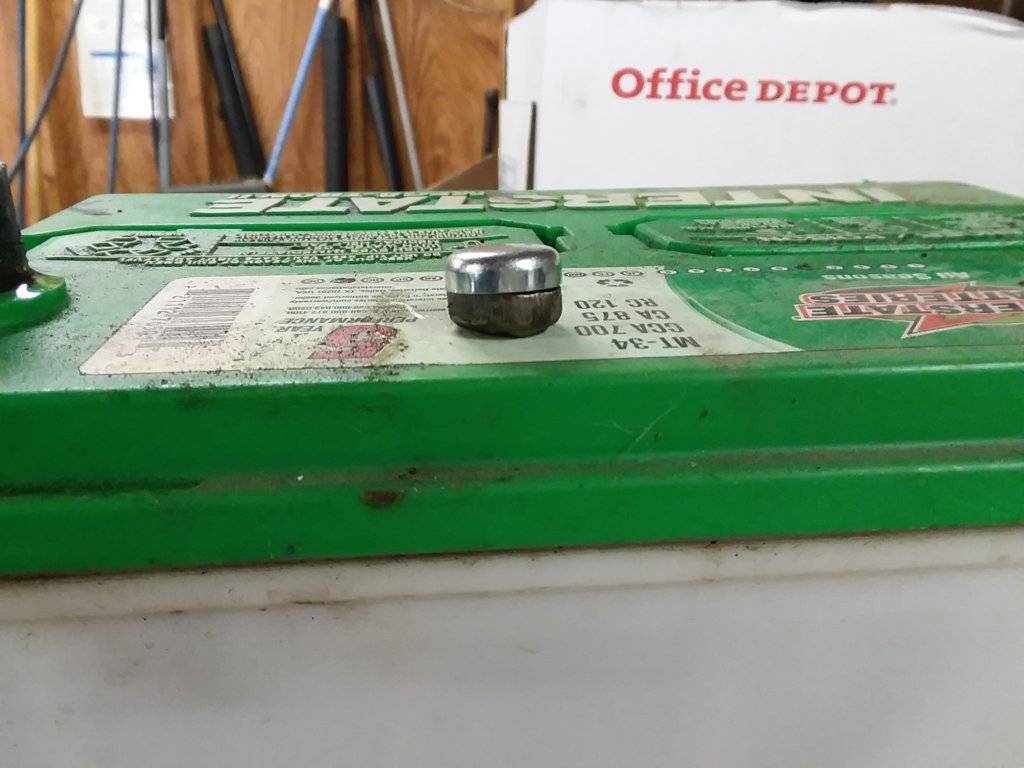

Thanks 65Sporty & Big John. Went to Advance: Andrew was knowledgeable and took me right to the 5/8 deep well plugs. 4 cost me $3.33 total. Made in USA, nice

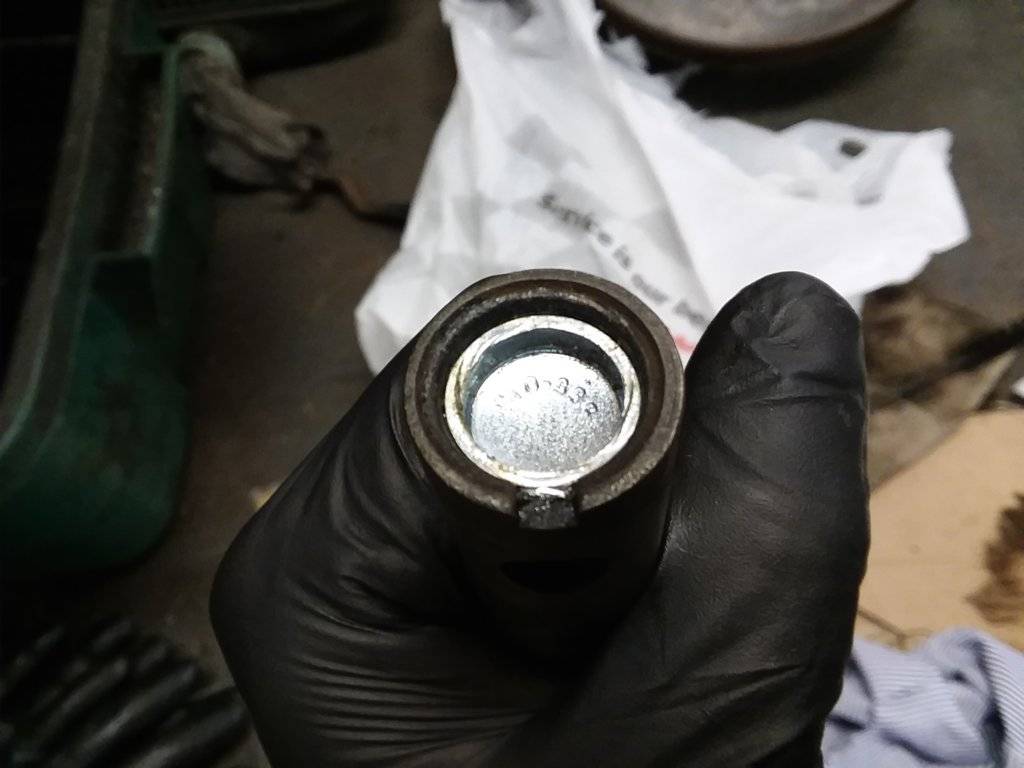

Installed with Permatex #2, 10 mm socket, and big hammer

Just need to do the other side.



[65sporty]

One step closer to a test drive
