383 starter same as 440 starter?

[blue88]

I just picked up a 67 newport with a 383 and the starter is bad. I have a few 440 starters laying around in the garage. Are they the same? Thanks in advance.



[patrick66]

Yes. And the same as a small block starter AND a /6 starter! The HEMI starter is different. Later-model Magnum V8 318 and 360 use a smaller starter, and it too will work.



[blue88]

Yes. And the same as a small block starter AND a /6 starter! The HEMI starter is different. Later-model Magnum V8 318 and 360 use a smaller starter, and it too will work.

Thanks Patrick.. that is what i was hoping to hear. I will slap one i have in ... and take the shot one to a place near me that rebuilds alternators and starters... they use good parts and i know who is doing the work



[Big_John]

The HEMI starter is different.

Actually, only the Hemi starter for a 4 speed is different.



[commando1]

Same design starter for /6 to BB. ORIGINAL units had different amp draw requirements, i.e.high compression BB starters had the most torque.



[1978 NYB]

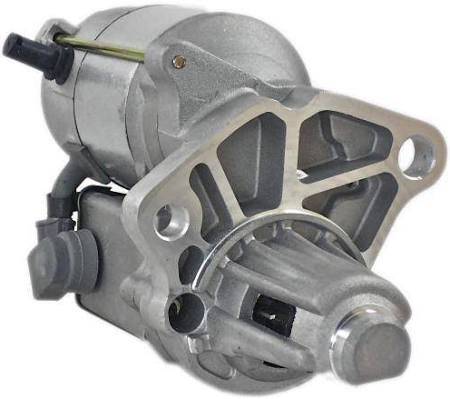

There is also the modern small gear reduction starter too.

picture of a gear reduction starter for a chrysler 440 - Google Search



[Big_John]

Same design starter for /6 to BB. ORIGINAL units had different amp draw requirements, i.e.high compression BB starters had the most torque.

Yes and no... Essentially, there were two different starters, there was a large "frame" starter and a small frame. This will explain the difference, although they all bolt up. There were also improvements over the years, like a gasket around the solenoid in 1970, that accounts for different part numbers, but they are really all the same.

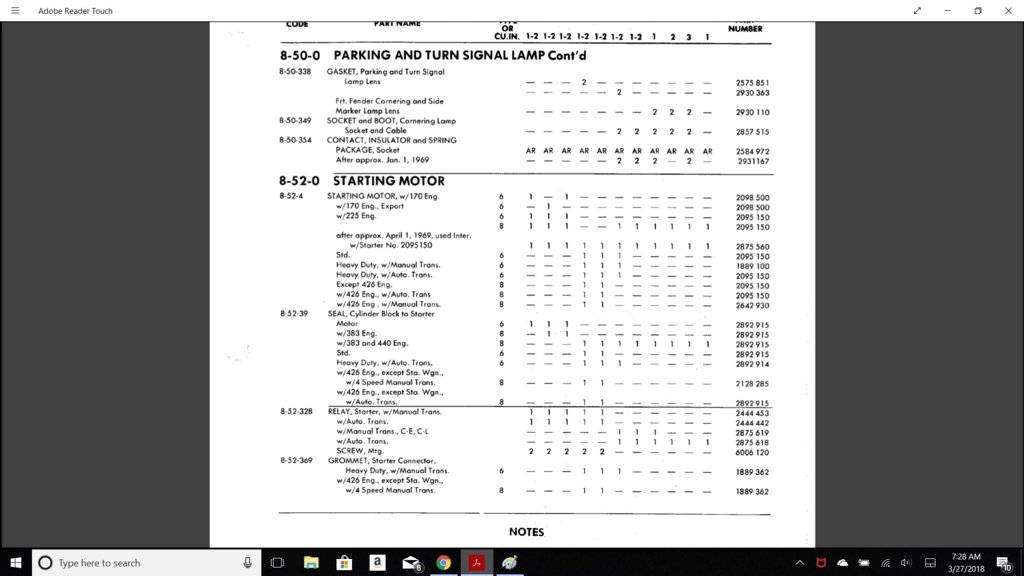

Here's a screen shot of the 1969 parts catalog. You'll see the 2095150/2875560 PN starter used in almost everything.

There was also a direct drive starter used in some slant six HD manual trans trucks and taxis that was similar to the hemi manual trans starter.



[Big_John]

More starter ID
