67 fury heater delete

[k-ams]

Bought a 67 fury about a month ago, has factory heater delete, Arizona car.
Did they just use the standard dash bezel for non AC?

I found 2 build sheets today under the back seat, how do I know if the cars supposed to have a radio or no radio? What's the number supposed to be on build sheet?

Thank you for any help.



[SportFury70]

Bought a 67 fury about a month ago, has factory heater delete, Arizona car.
Did they just use the standard dash bezel for non AC?

I found 2 build sheets today under the back seat, how do I know if the cars supposed to have a radio or no radio? What's the number supposed to be on build sheet?

Thank you for any help.

Hi Kurtis,

Yes they used a standard bezel for heater delete cars, they just had a block off plate there where the heater controls normally go. Those are VERY RARE pieces too. Regarding the radio, if the car is a radio delete there would be a "block off plate" or Plymouth medallion they just put over the spot where the radio normally goes that just snaps in. Our Turquoise '67 Fury II 440 stroker sedan I sent you pictures of has both of these, so I will get pictures for you so you can see what I am talking about. Whether to know if you do not have a radio, IF i remember correctly the code is R08.

Hope this helps you out.



[k-ams]

Thank you, pics would be great.



[LocuMob]

Thank you, pics would be great.

Any pictures of the fender tag?

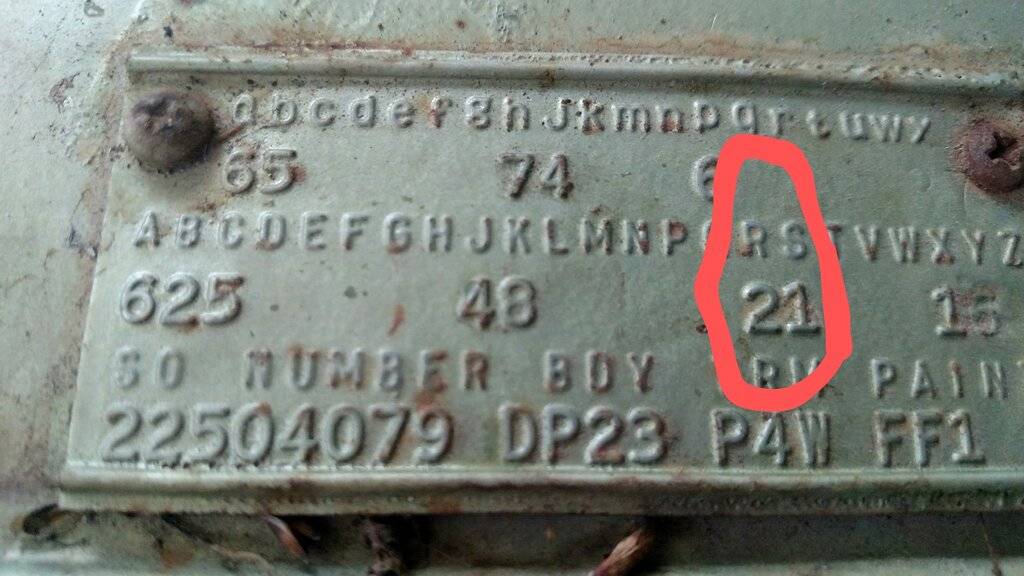

Here's an example from a car with the 5.5 watt radio, the 2 under the R is for the 422 code.

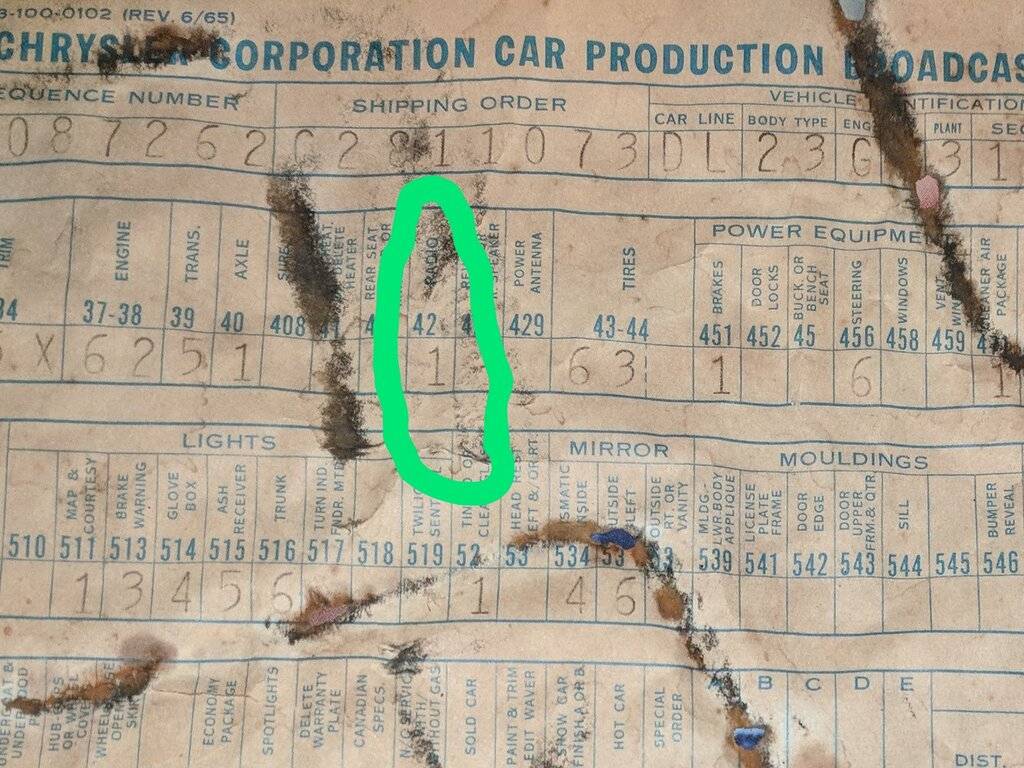

Here is the code on a broadcast sheet, this being for the standard 2 watt radio, code 421.

That was the two options for radios. No number if it didn't come with one .



[SportFury70]

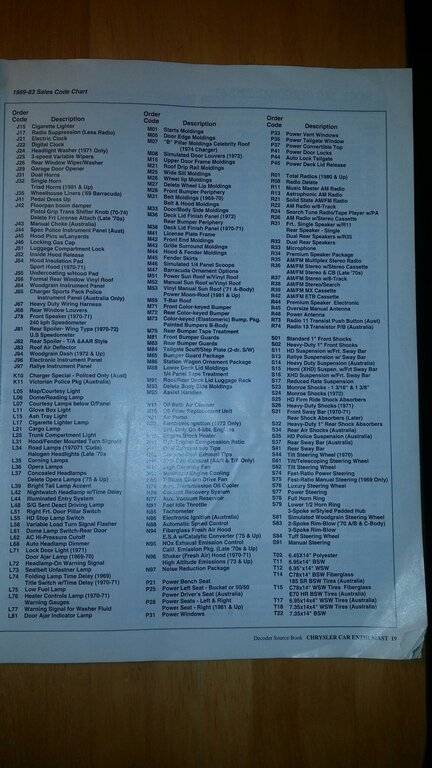

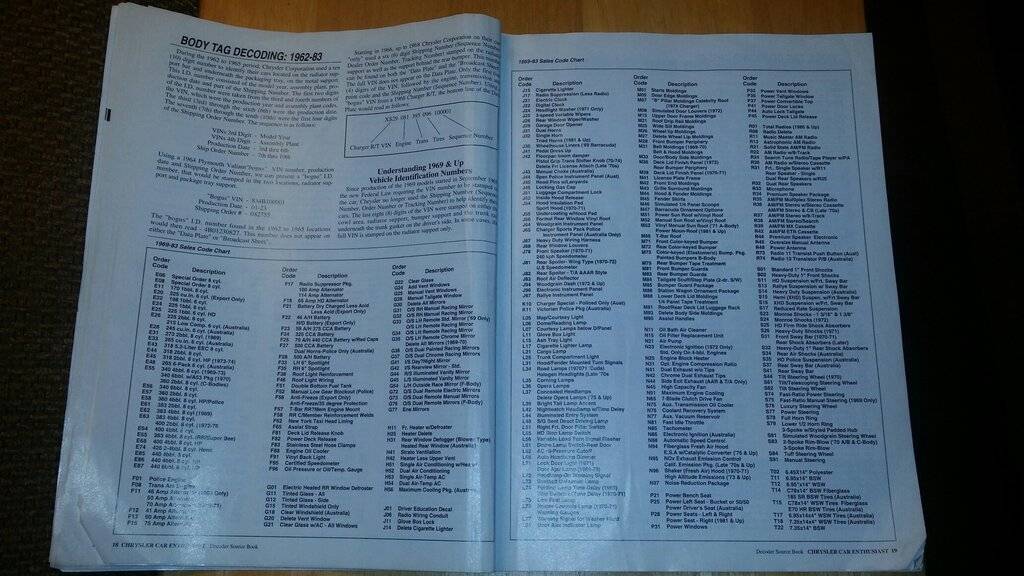

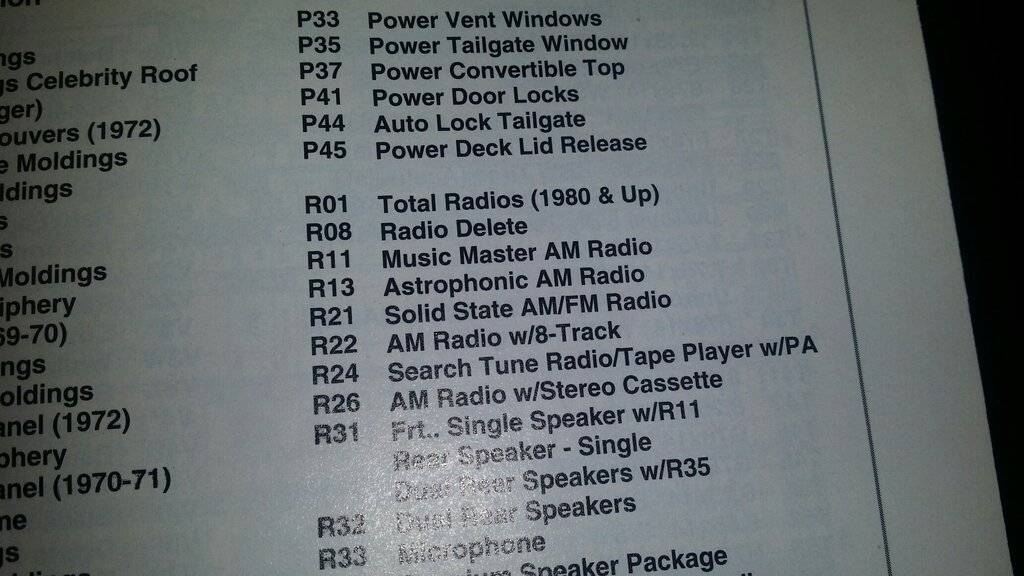

Here is my source to why I said what I said about the radio, don't know how accurate it is. I still have yet to get pictures of the stuff I am talking about too.



[k-ams]

Build sheet doesnt match the car,



[SportFury70]

Thank you, pics would be great.

Hi Kurtis,

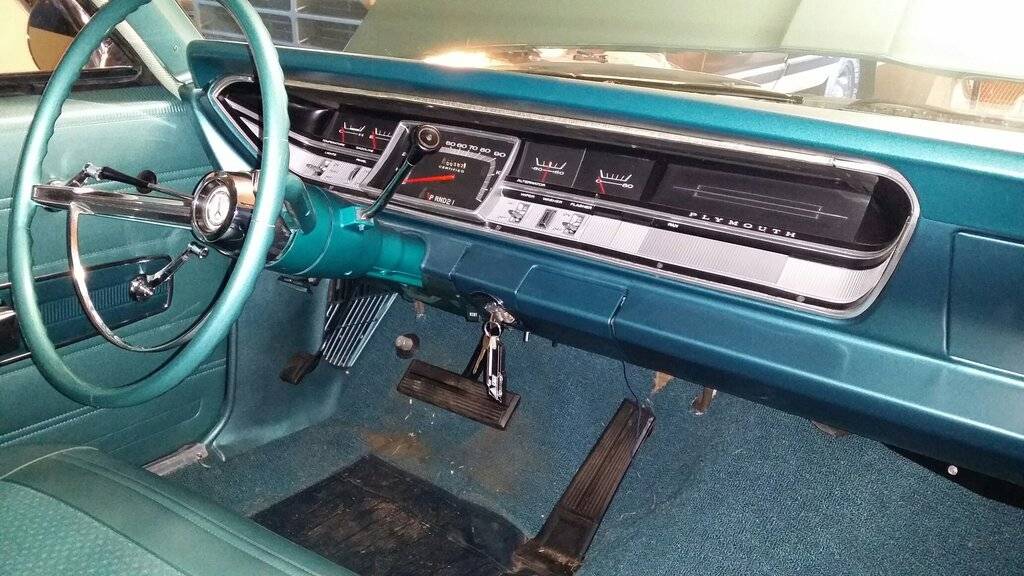

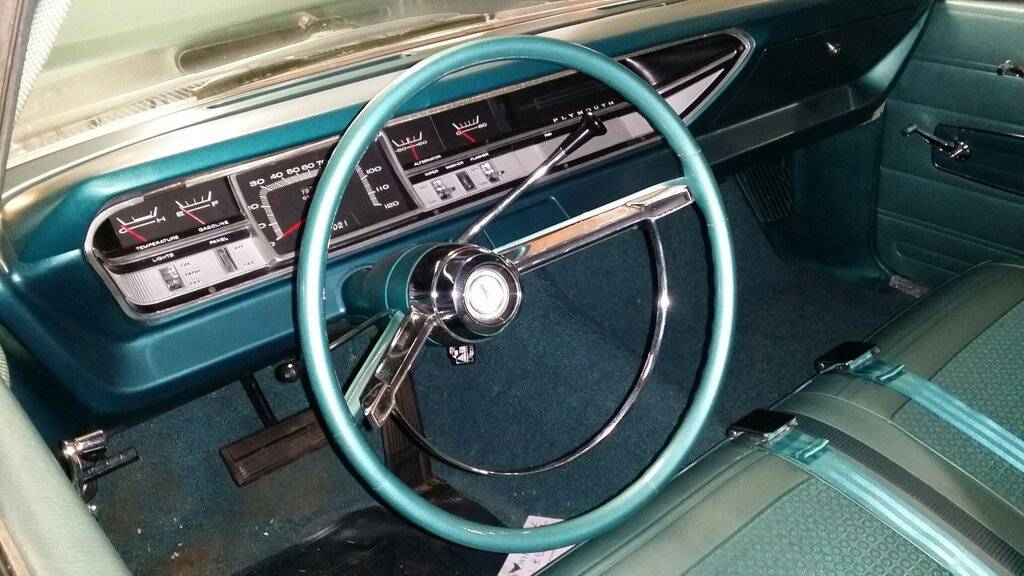

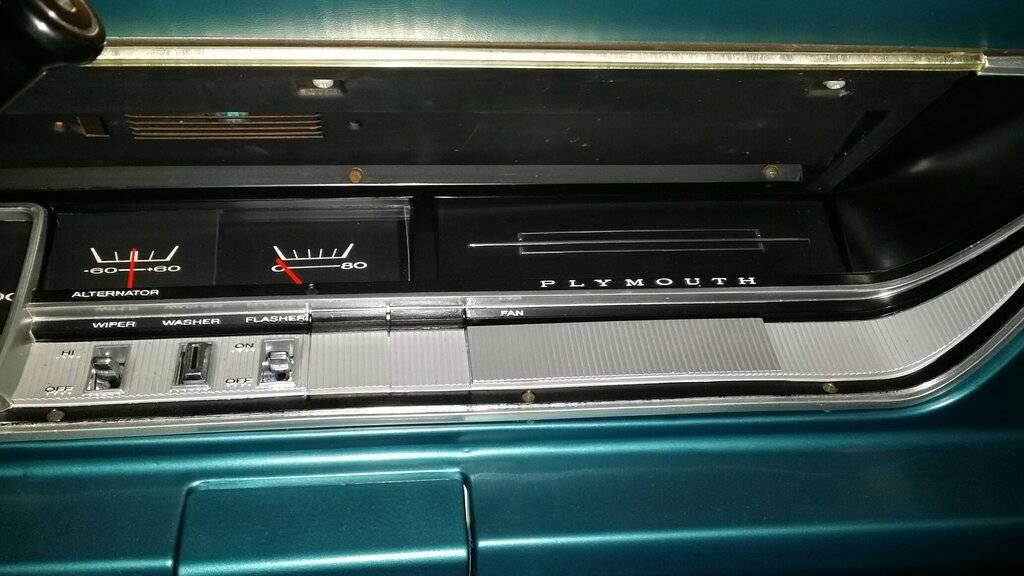

Here are the pictures I told you I would get for you. I made a mistake, I thought that the radio delete plate had a Plymouth medallion. It does not as you can see but that in the picture is correct.



[SportFury70]

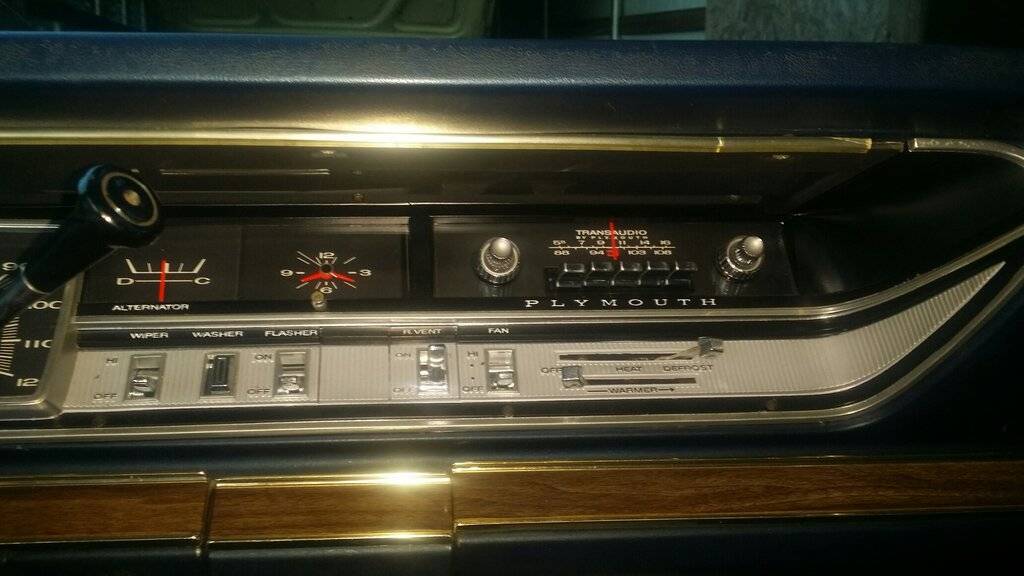

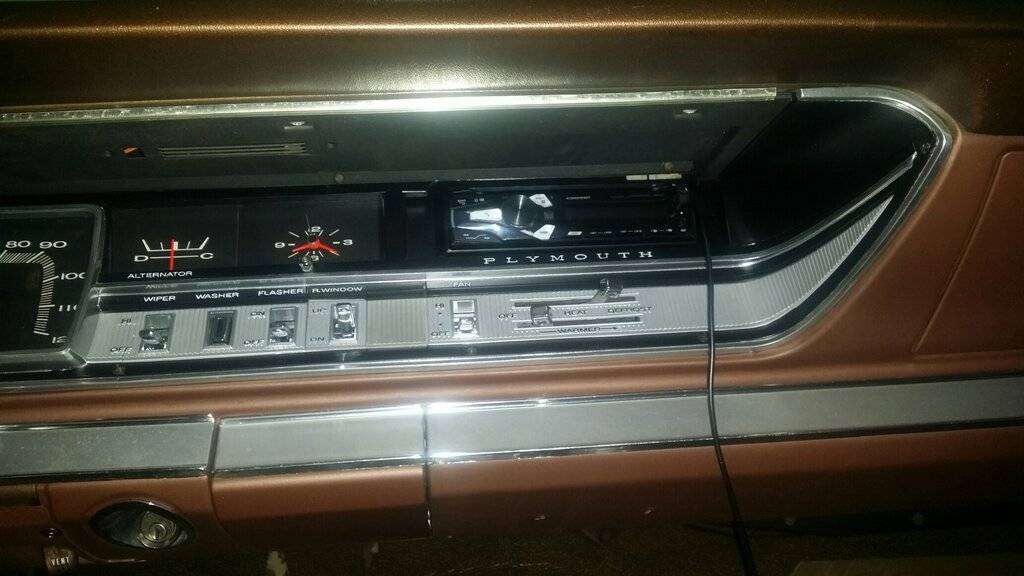

Here are 2 examples of "regular" non heater delete dashes



[69 300 vert]

IIRC, only cars sold in Hawaii and Puerto Rico were available with heater delete? Heater delete means no defroster either.
