Proper 69 Chrysler 440 fuel pump

[MJFUR]

The mechanical fuel pump was by-passed by the previous owner and a small electrical pump/fuel line was cobbled together. I am trying to undo all of those repairs.

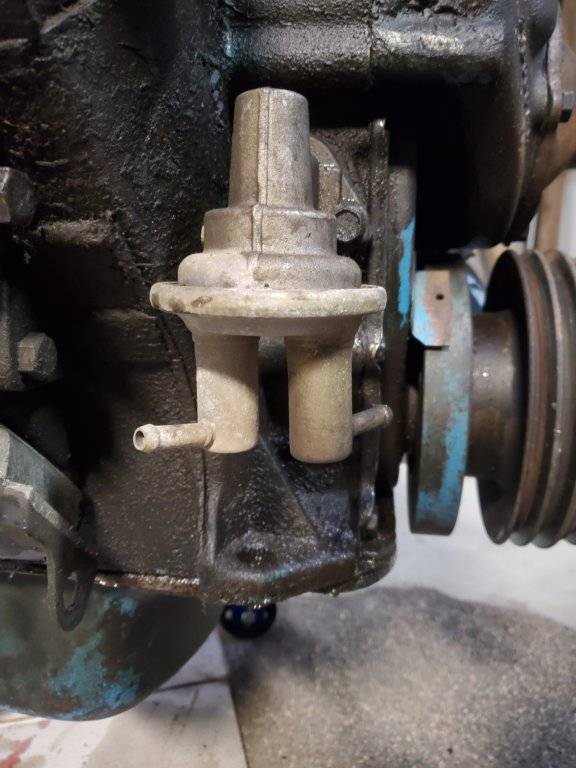

First photo is what is currently bolted to the engine. (No idea if original or not?)

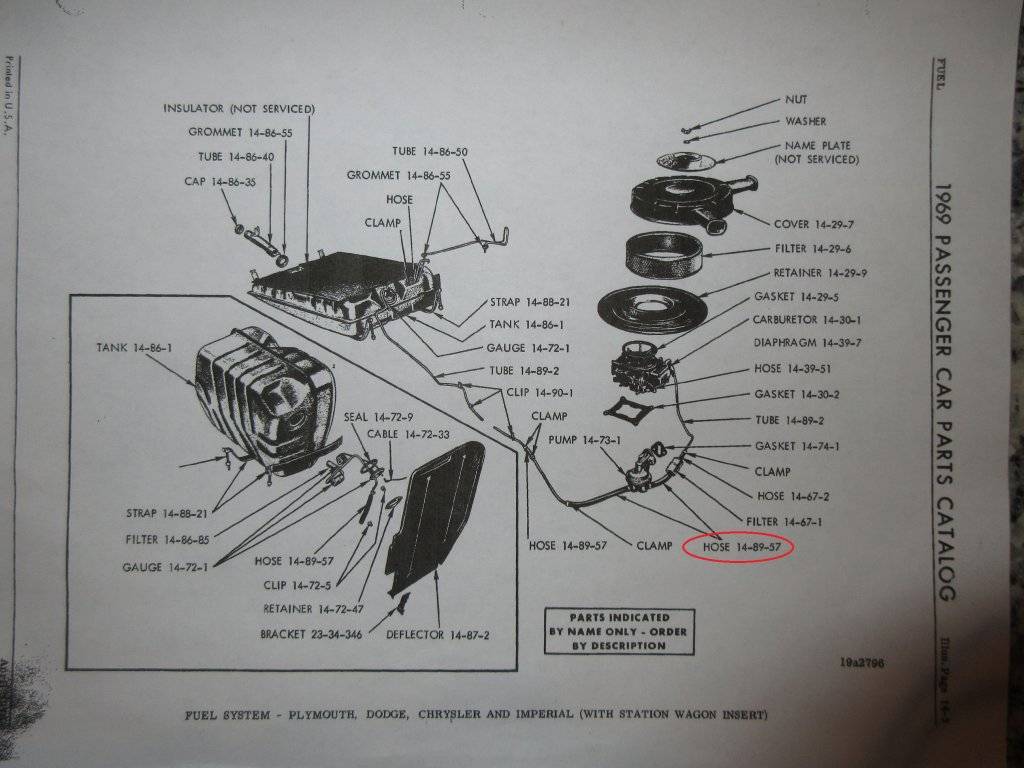

Second photo is the parts manual which shows that two sections of rubber hose connect to the fuel pump.

I picked up a pump from NAPA, but it had provisions for one rubber hose/one threaded steel line and the inlet-outlet pipes were facing different directions than what is currently on the car. https://www.napaonline.com/en/p/DFPMF0109?impressionRank=15

Anyone have photos or part number for a correct modern fuel pump? Photo of correct inlet/outlet pipe orientation?

Thx



[MrMoparCHP]

The one on your car is the correct style (at least for 69)

Alan



[1966newport]

so put a hose barb in the threaded port



[MJFUR]

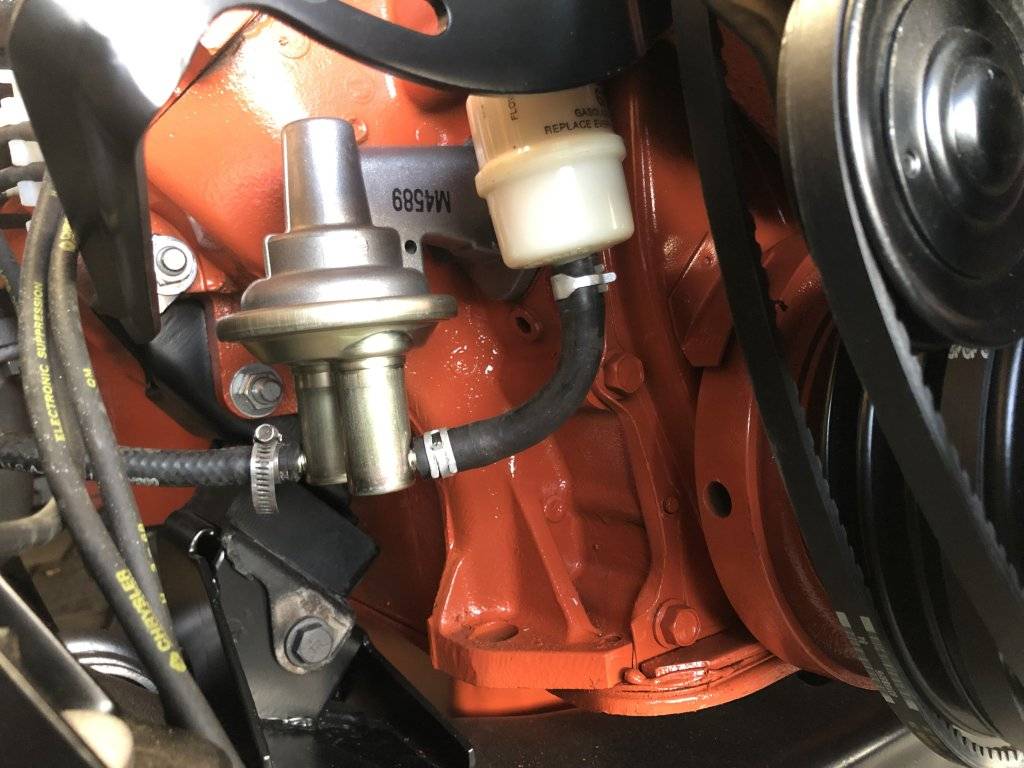

Thx for the photos @MrMoparCHP



[MJFUR]

so put a hose barb in the threaded port

If the correct part is available, I'd rather install the correct part and not cobble mismatched parts together.



[GOLDMYN]

this is what i use

Carter M4434 Carter Mechanical Fuel Pumps | Summit Racing



[1966newport]

that pump at summitt is same one he didnt want from napa



[MrMoparCHP]

so put a hose barb in the threaded port

Points the wrong way.


Alan



[MrMoparCHP]

From NAPA
https://www.napaonline.com/en/p/NNPB0092P


Alan



[Trace 300 Hurst]

Mopar Catalog



[MJFUR]

Thx for all the help!



[OKDart]

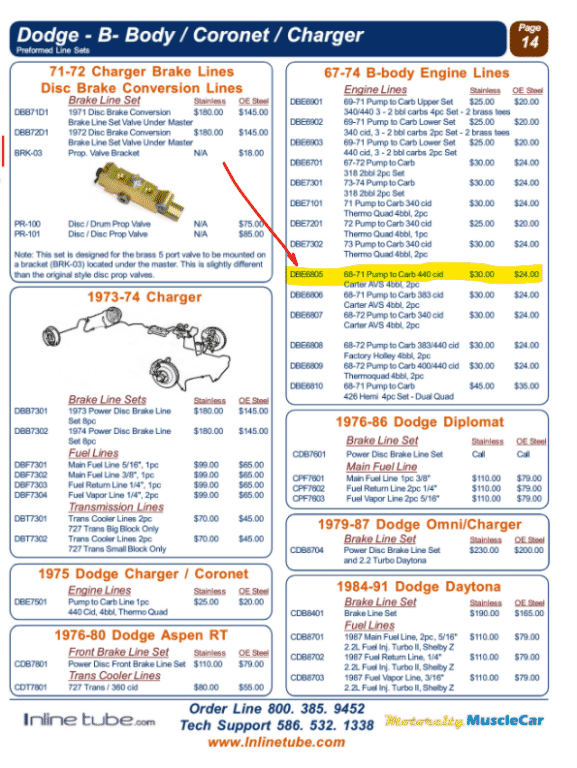

The reason the threaded fitting is facing the other direction is because the tube that goes in it is c-shaped and ends up in the same spot for the filter/vapor separator. Click link for pic:

MF595A - 1968-71 440 Carter Thermo-Quad 4 Bbl Pump To Carburetor Line; OE Material

I couldn't tell you if yours is supposed to have the threaded type or not.

Be aware that the reason they installed an electric pump could be because the fuel pump push rod is worn down. I would recommend taking it out and measuring it. Should be around 3.2", just eyeballing it, both machined ends should be the same length. There's been a bad run of aftermarket pushrods, so it's best to have OEM.



[david hill]

The dual nipple pump in the pic is for a 350 HP 440. The threaded pressure fitting as described is a 375HP pump. By the way plastic fuel filters are a fire just waiting to happen. Find my thread ( an then it caught fire ), will show what can happen. Always buy steel fuel filters.



[MrMoparCHP]

The dual nipple pump in the pic is for a 350 HP 440. The threaded pressure fitting as described is a 375HP pump. By the way plastic fuel filters area fire just waiting to happen. Find my thread ( an then it caught fire ), will show what can happen. Always buy steel fuel filters.

The 69 parts book has the double nipple one on c-bodies and the fitting one on b-bodies
The 70 parts book has the fitting one on all.


Alan



[MJFUR]

@MrMoparCHP

Where did you find the spring clamps for your fuel filter line?

Thanks



[MrMoparCHP]

@MrMoparCHP

Where did you find the spring clamps for your fuel filter line?

Thanks

Those came with the old school Fram gas filter


Alan



[garyh]

Why do all the replacement fuel Pumps (Big Block) come with Two gaskets ? I have noticed this for several years now,various brands too.



[HWYCRZR]

I am not sure, but I am glad they do. I was having fuel leaking issues when I put my new pump on. I took it back off so I could take a closer look at the fuel outlet fitting. Turns out it was a worn out flare on my fuel line, so made another, check for leaks and re-installed using the second gasket.



[Toolmanmike]

The mechanical fuel pump was by-passed by the previous owner and a small electrical pump/fuel line was cobbled together. I am trying to undo all of those repairs.

First photo is what is currently bolted to the engine. (No idea if original or not?)
Second photo is the parts manual which shows that two sections of rubber hose connect to the fuel pump.

I picked up a pump from NAPA, but it had provisions for one rubber hose/one threaded steel line and the inlet-outlet pipes were facing different directions than what is currently on the car. https://www.napaonline.com/en/p/DFPMF0109?impressionRank=15

Anyone have photos or part number for a correct modern fuel pump? Photo of correct inlet/outlet pipe orientation?

Thx

View attachment 511054

View attachment 511055

From what I can see it looks like a big block. The fuel pump should have a short arm and a pushrod to drive it. Often the pushrods are worn and are so short they won't operate the pump properly.
