1966 Dodge Polara Body Harness rebuild Videos

[mr. fix it]

As promised last week I am posting videos on rebuilding the body harness for the Polara

the videos may be a bit out of order but get the point across.

I have installed the harness but not quite completed just yet and will update this 1st post with more videos

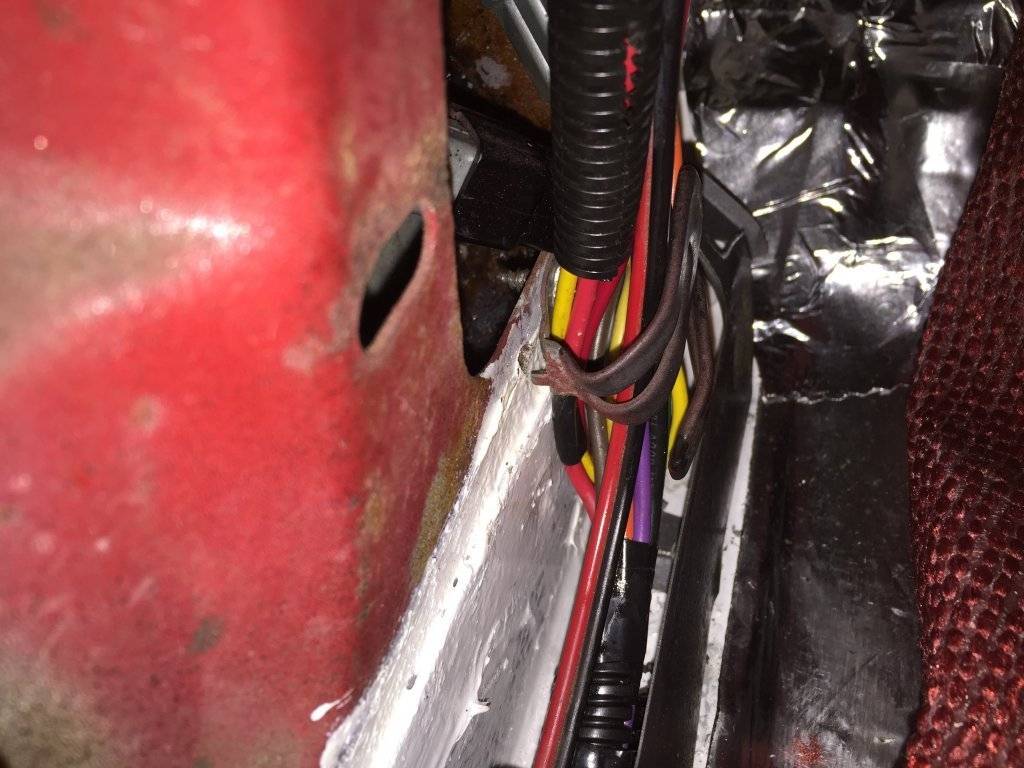

1966 Polara Door Jam wiring

Wire straightening Trick

1966 Polara Making the perfect Packard Crimp



[mr. fix it]



[vdk2010]

Looks good, nice work! I started the same process on my car, but stopped because it was to early in my build. I will add several systems, relais etc. and don't want to redo everything.



[Big_John]

Good stuff here.

When I redid the harness in my 53 Windsor, I laid the old harness out on a piece of plywood and used some finishing nails to lay the pattern of the harness out. I've seen this done in factories where they are building new wire harnesses. Then I replaced the wires one at a time.

When I was done, the harnesses fit just like the original. This is the dash harness.



[mr. fix it]

Good stuff here.

When I redid the harness in my 53 Windsor, I laid the old harness out on a piece of plywood and used some finishing nails to lay the pattern of the harness out. I've seen this done in factories where they are building new wire harnesses. Then I replaced the wires one at a time.

When I was done, the harnesses fit just like the original. This is the dash harness.

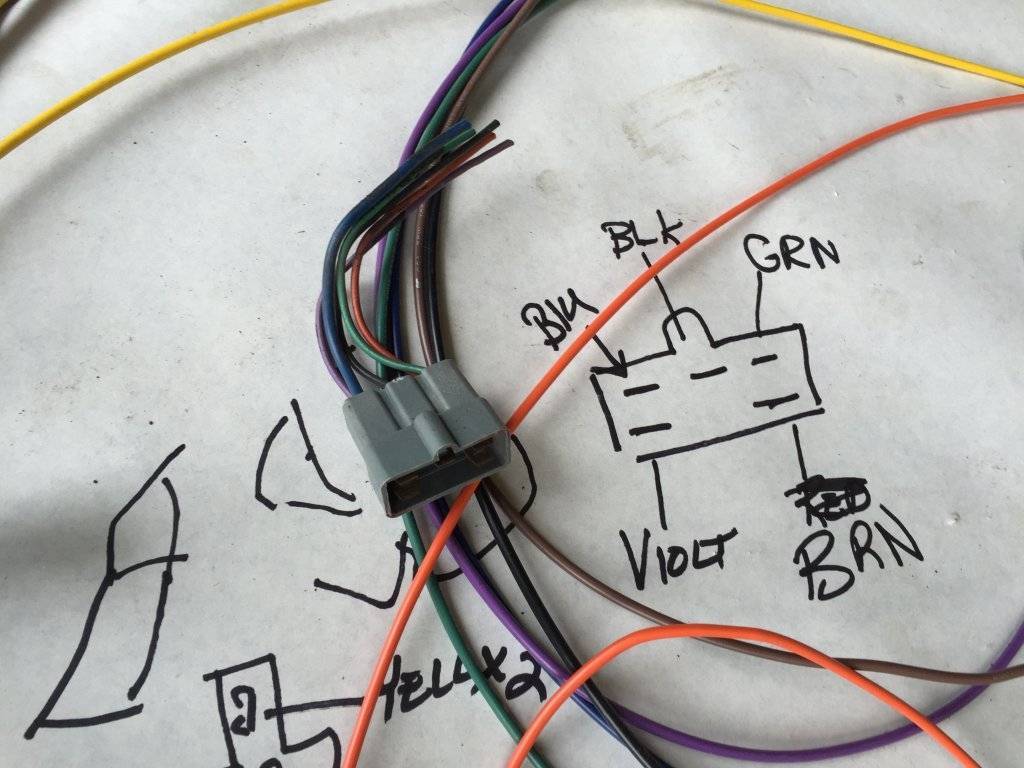

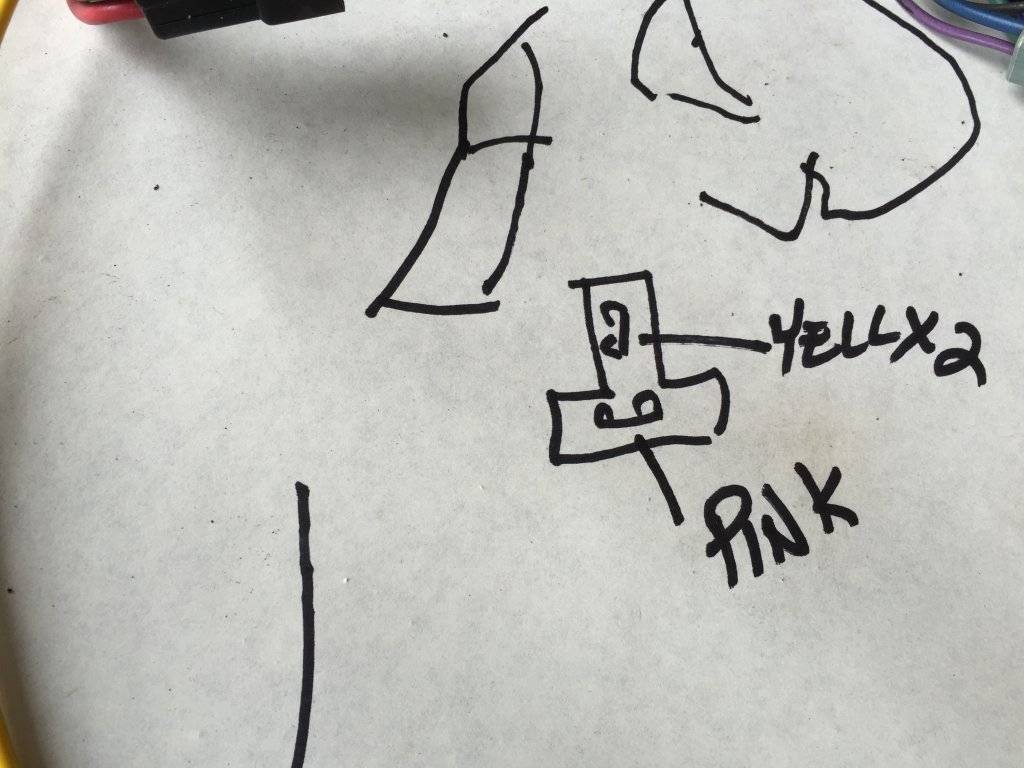

I done this too in the field. since I had such a long harness to rebuild the paper roll worked best for me since this was a one off project.
