1967 fury 383 pulley/alternator help

Adebrea · Mar 29, 2014

my Fury came with a 400 in it(the guy I bought it from put it in and stole all the parts off of it) and I'm using parts off my 383 to get the 400 running til I rebuild my 383. it's been a long time since I took the 383 apart and I'm trying to figure out how the alternator, pulleys, and belts go. does anyone have pictures of their big block front v-belt setups? any pictures would help. mine had the idler pulley on it. the fury has no a/c and the 383 came out of a newport that, i think, had a/c. really any pictures will help of the belts and pullies. side ones that show pulley groove

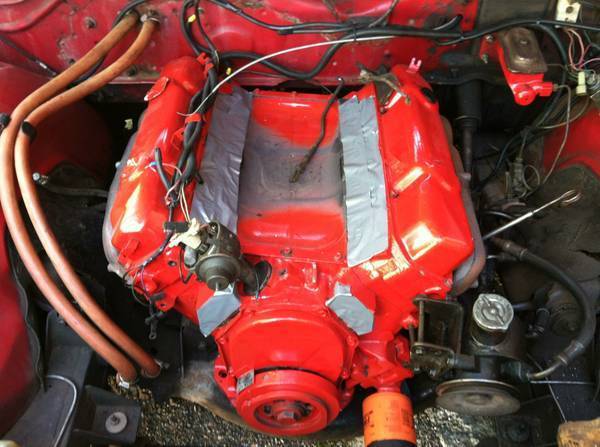

alignment. Thanks the picture is of the engine how I got it.
.

greasemonkeyman · Mar 29, 2014

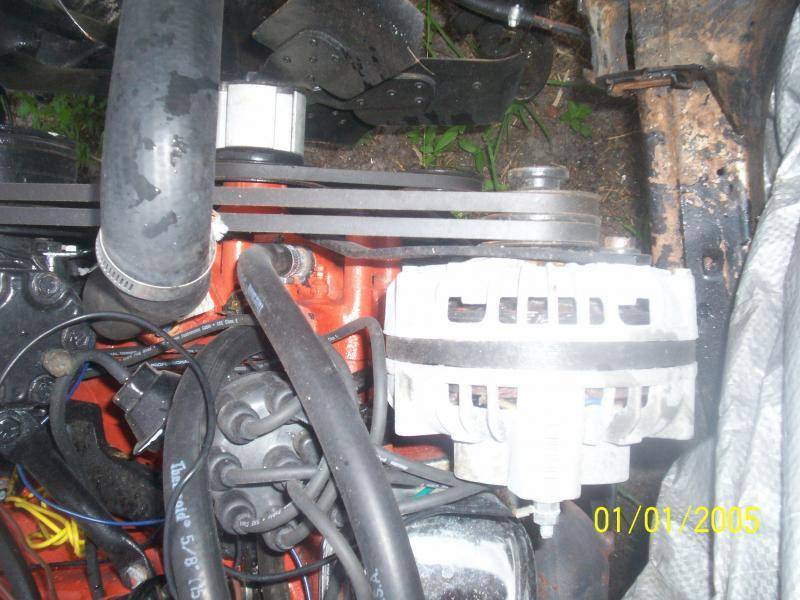

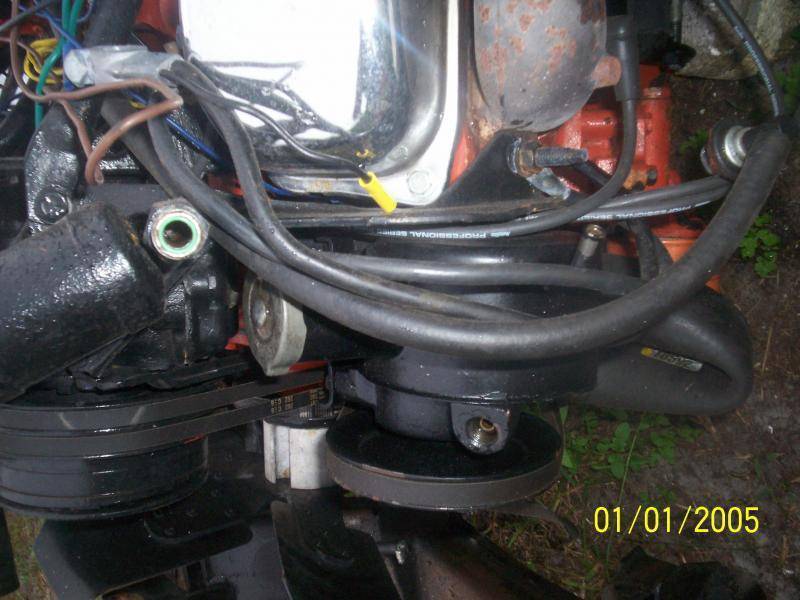

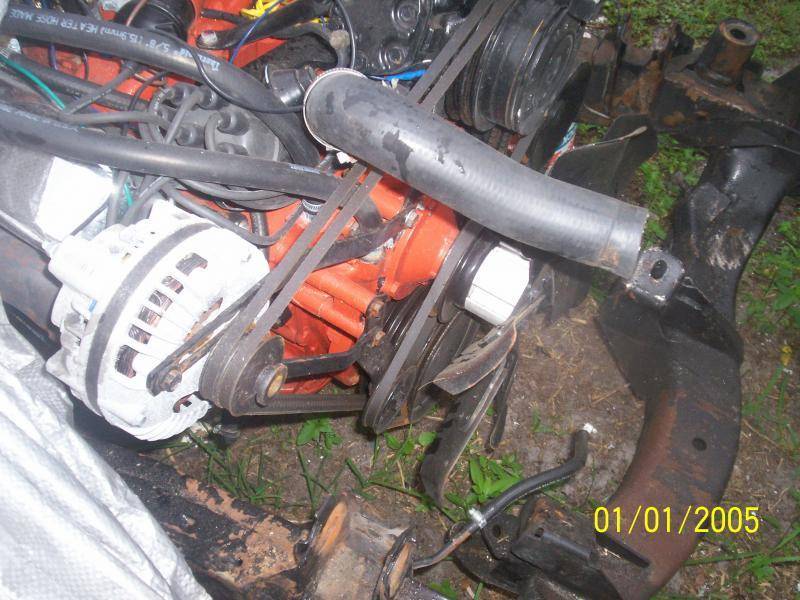

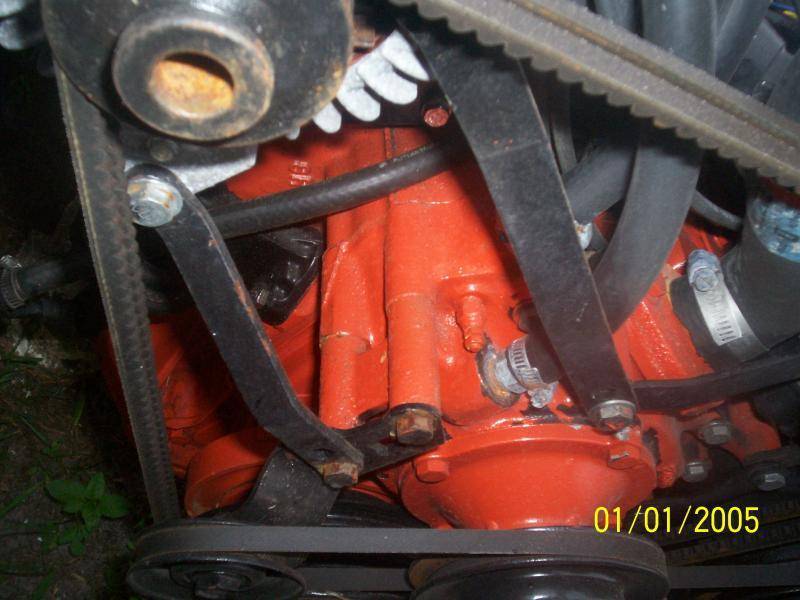

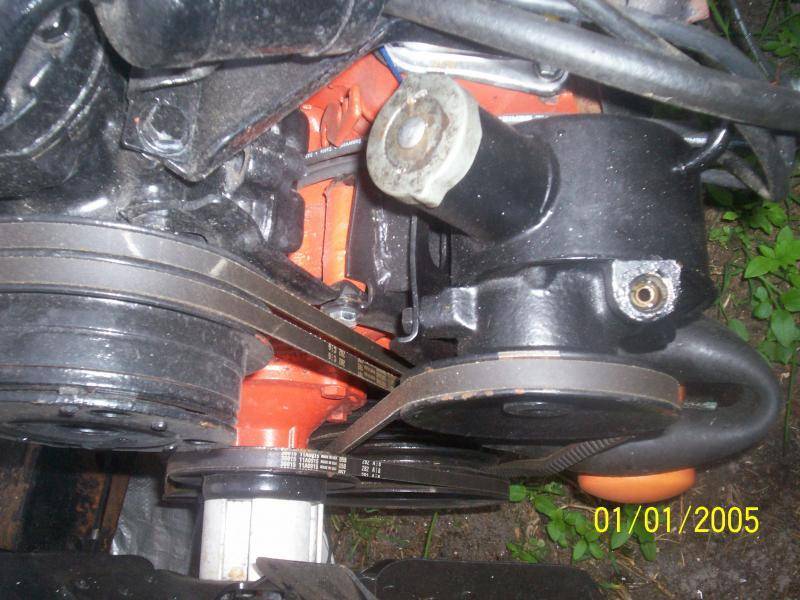

Hope these pics help you.It's from a 440 but 383 should be the same.

commando1 · Mar 30, 2014

All your barackets n stuff can be had here:
http://www.bouchillonperformance.com/bpe_home

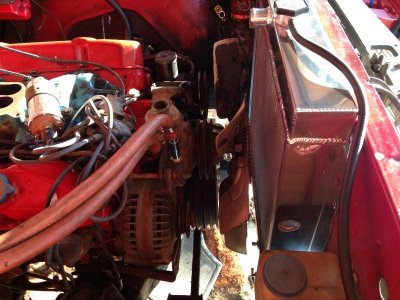

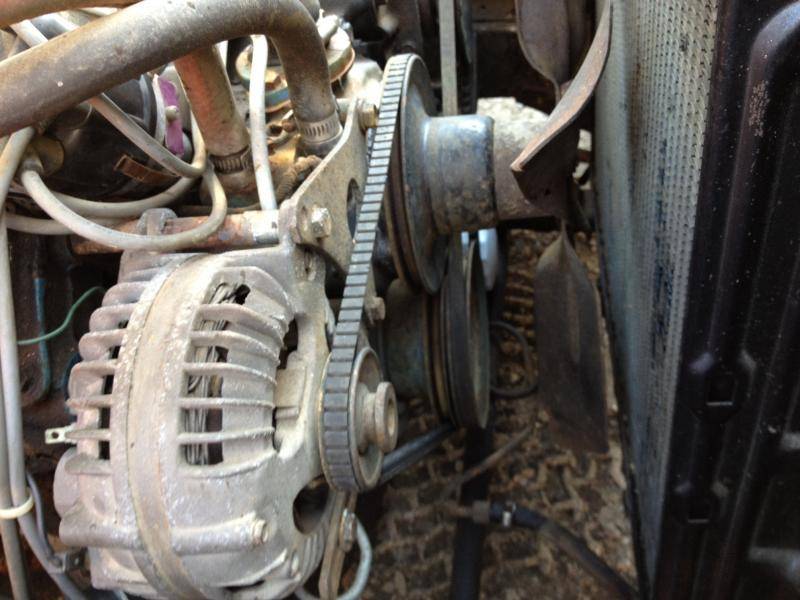

Also one more additional pic

Polara_500 · Mar 30, 2014

Thought he said the car didn't have A/C, so who has a good non-A/C front shot?

commando1 · Mar 30, 2014

To show the difference?

383 came out of a newport that, i think, had a/c.

Polara_500 · Mar 30, 2014

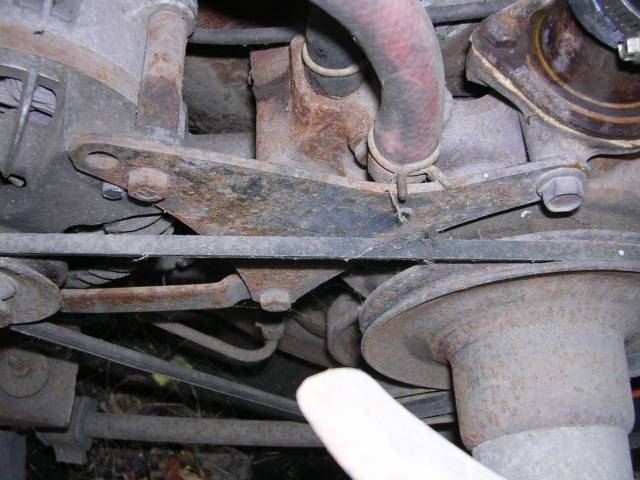

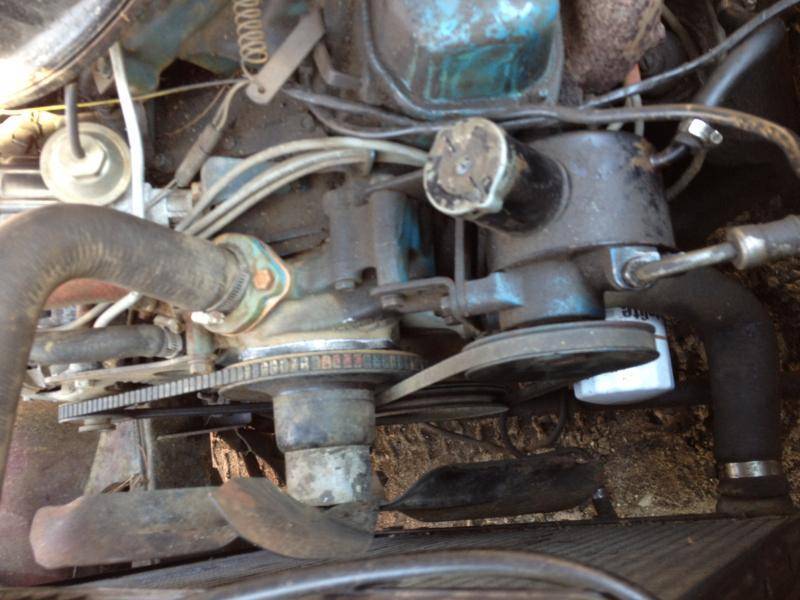

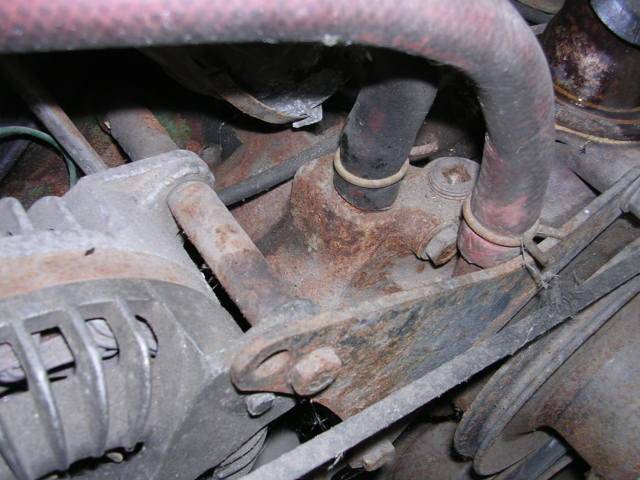

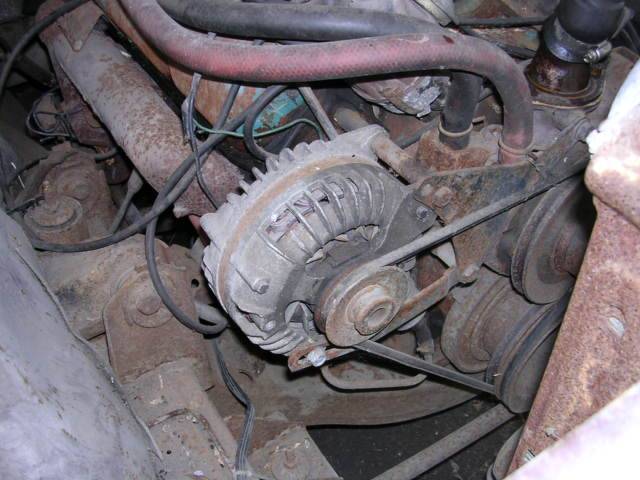

Here's a few shots I took of a parts car with a 383, non A/C car, 65 not 67 but I don't think a lot changed, may help some.

Badvert65 · Mar 30, 2014

Only problem I see that may cause you grief when using the 383 stuff on that 400 is the Harmonic damper is different (the 400 looks to have the cast crank damper). Anyways, see if the damper is thicker than the one on the 383, if it is then you may have some belt alignment problems because of the crank pulley being farther out. Also, I would mock things up without the idler (at first). I don't see why a non A/C car would have need of the idler, even with power steering.

commando1 · Mar 30, 2014

All pulleys are interchangeable between forged and cast cranks FWIW.

Adebrea · Apr 3, 2014

Thanks Everyone for the pics!!! It is non a/c and my 383 was an a/c car so thats part of my problem and because of that I have to wrong (smaller, not as deep) water pump pulley! guess I have to buy one. there goes another $50. Thanks guys!
