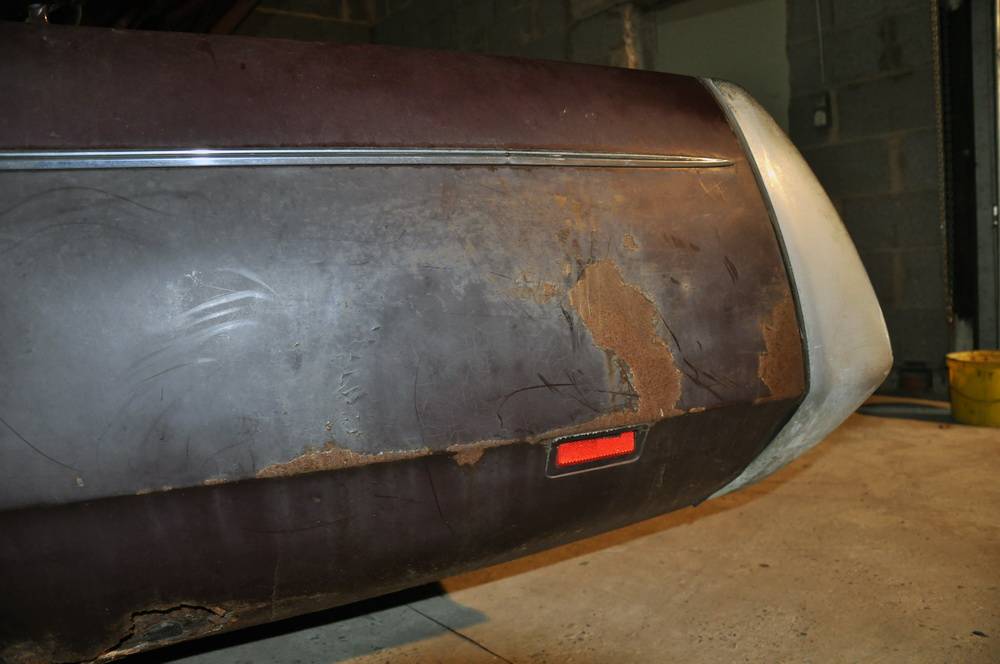

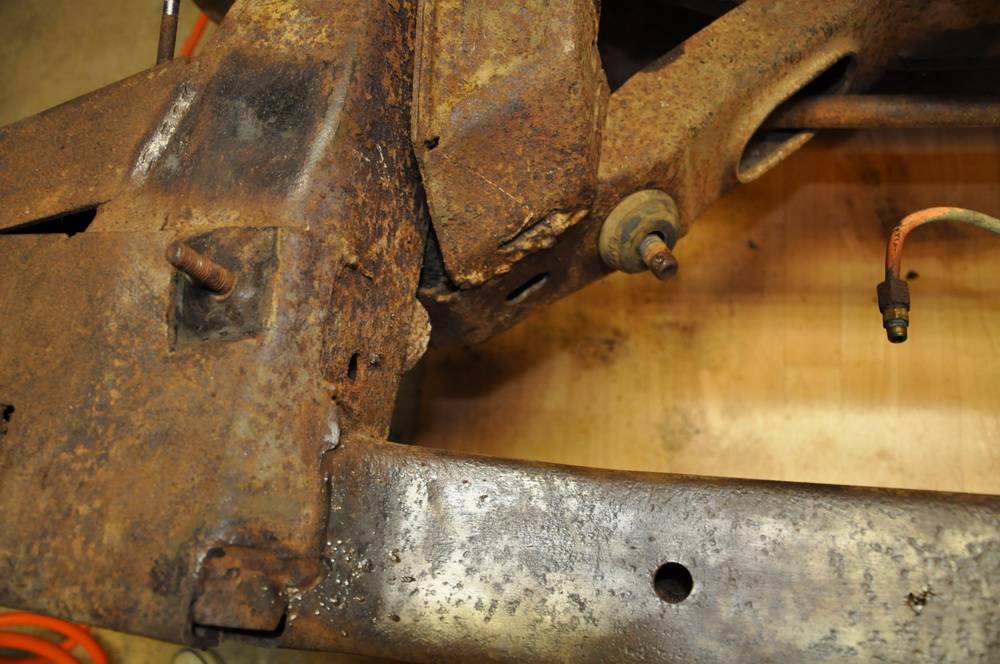

1969 Imperial progress thread

Are the upper control arm bushing meant to be a loose slip fit?!

The Originals were pressed on




Last edited:

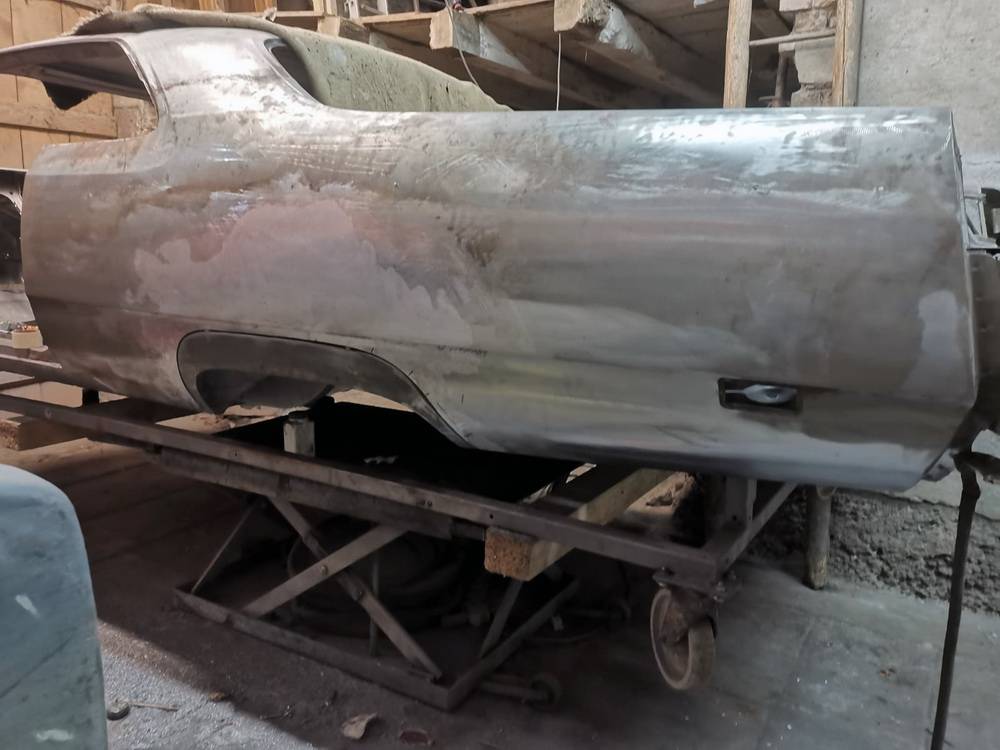

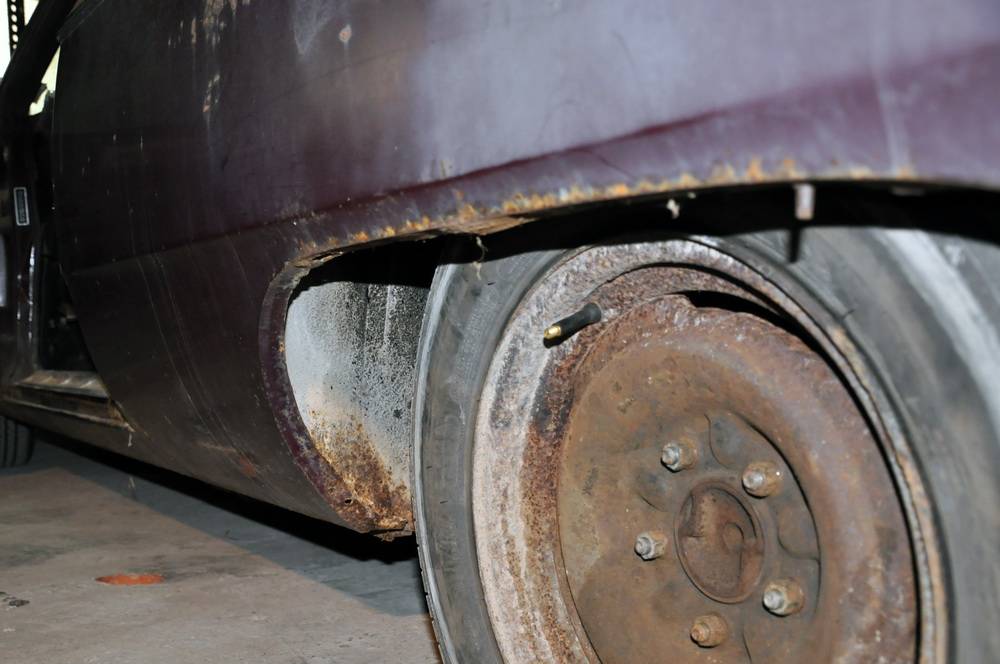

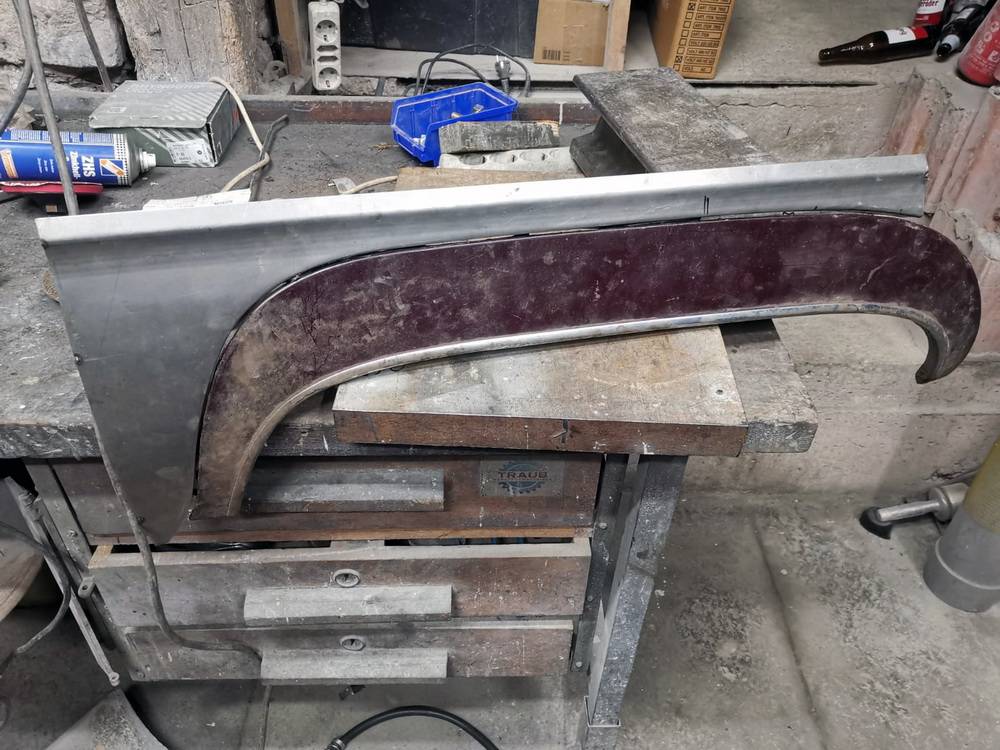

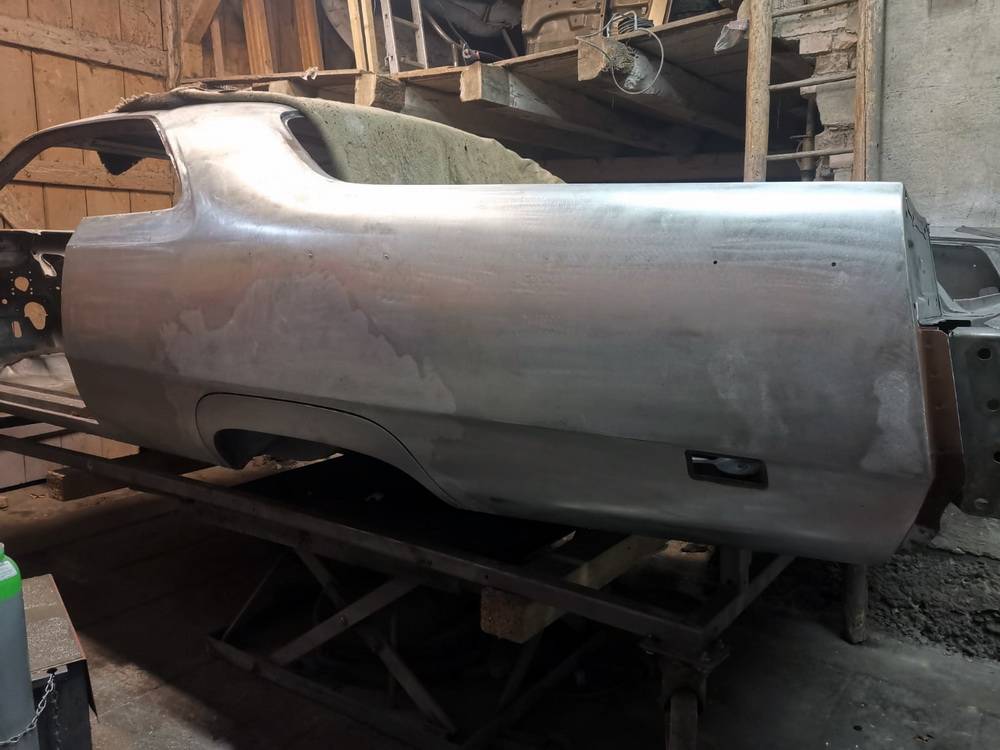

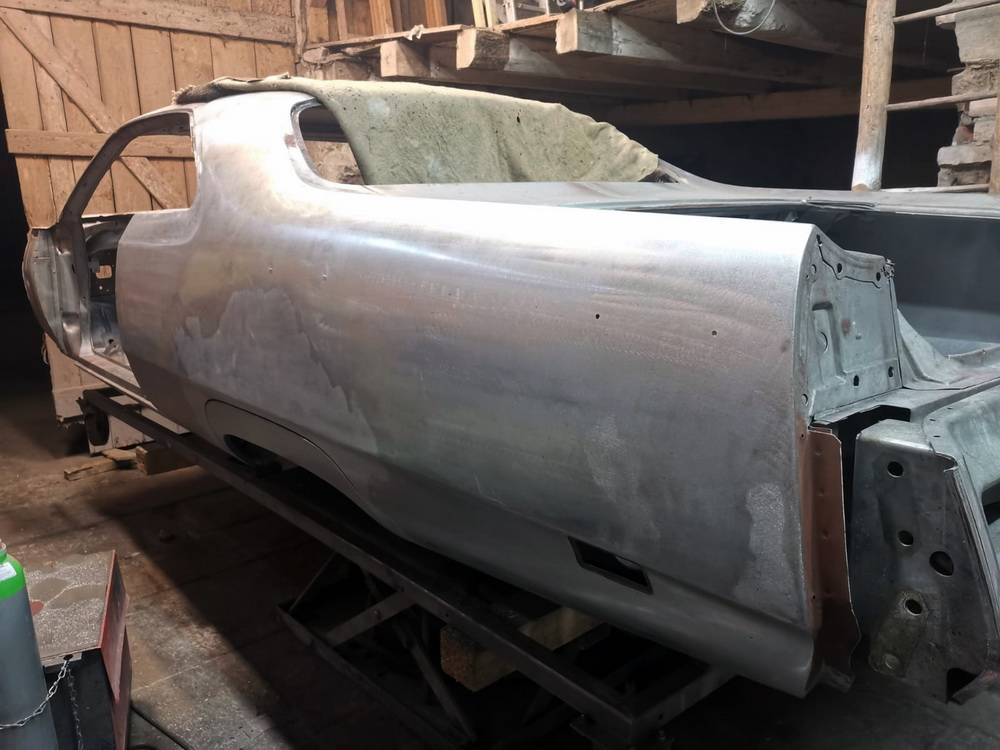

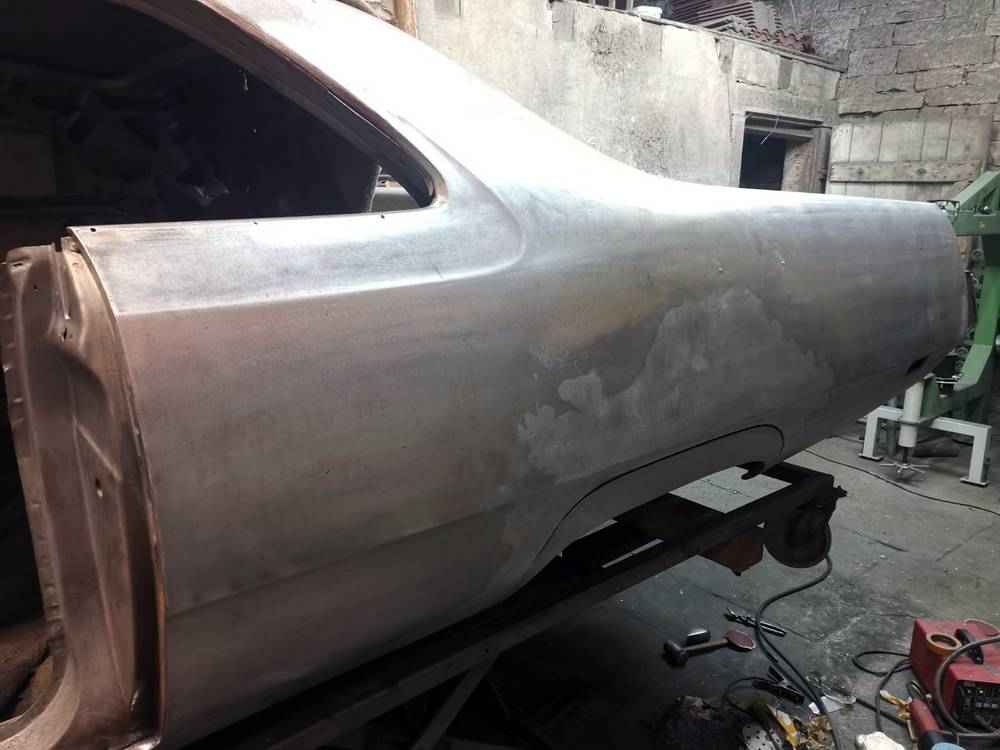

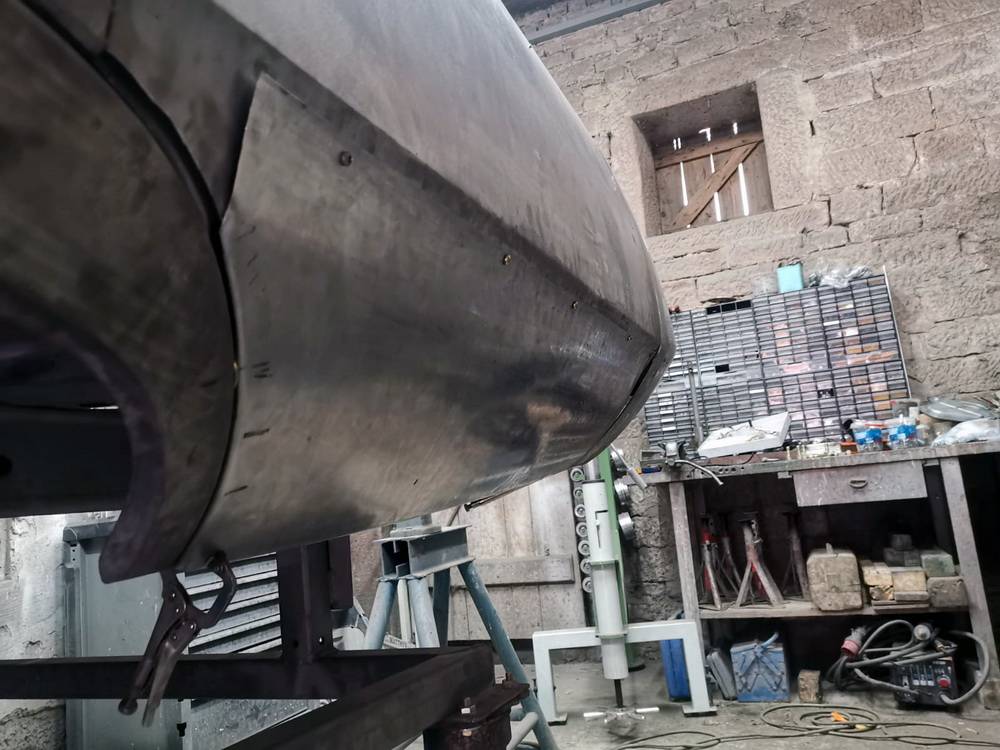

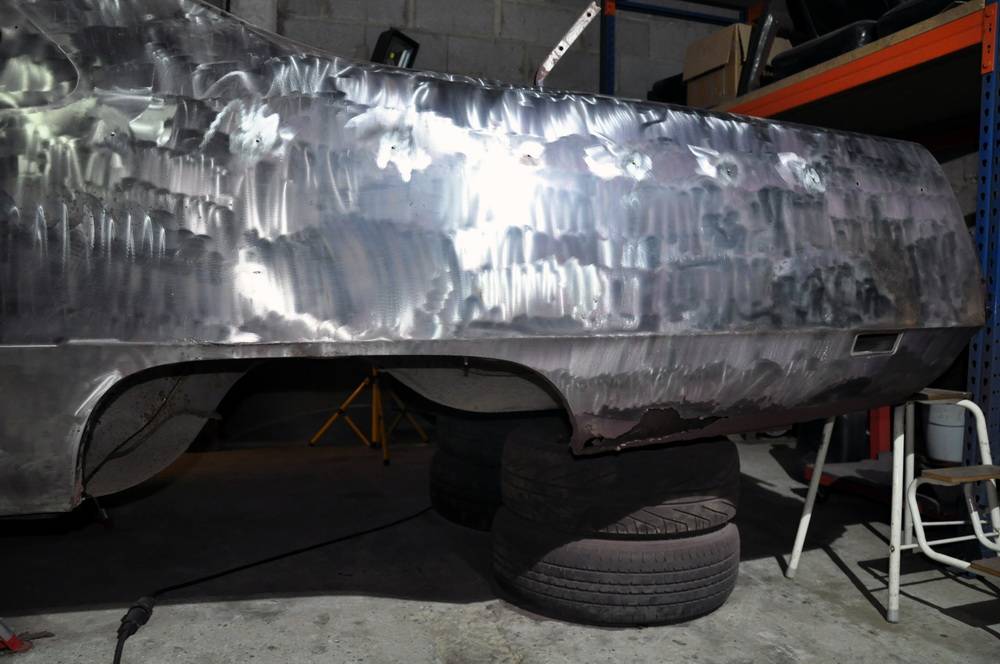

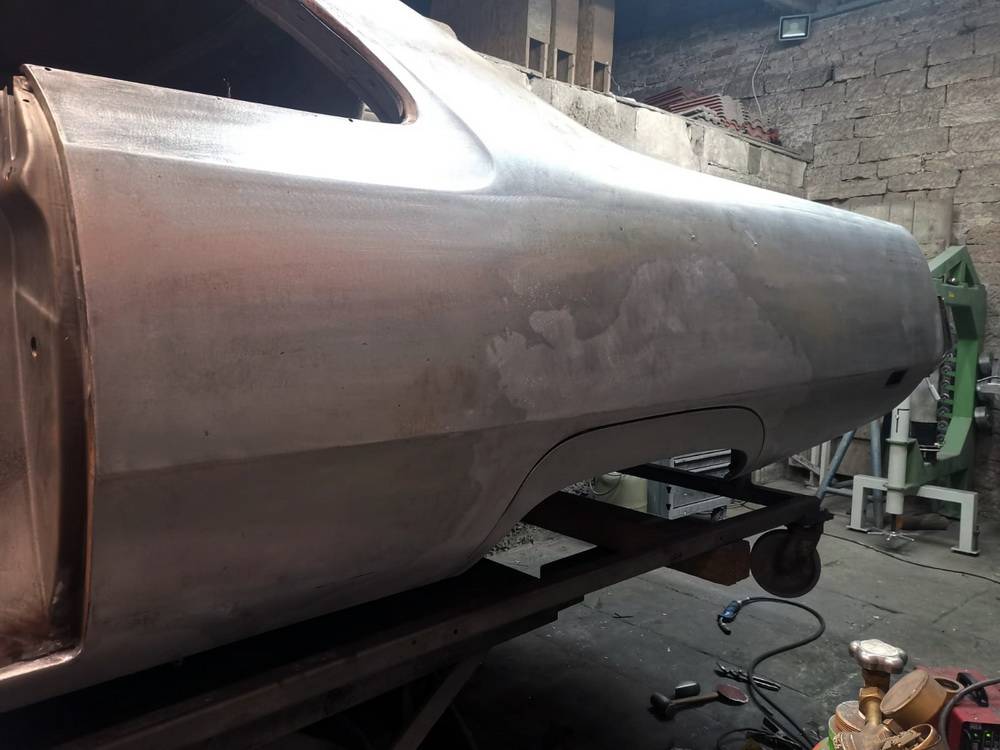

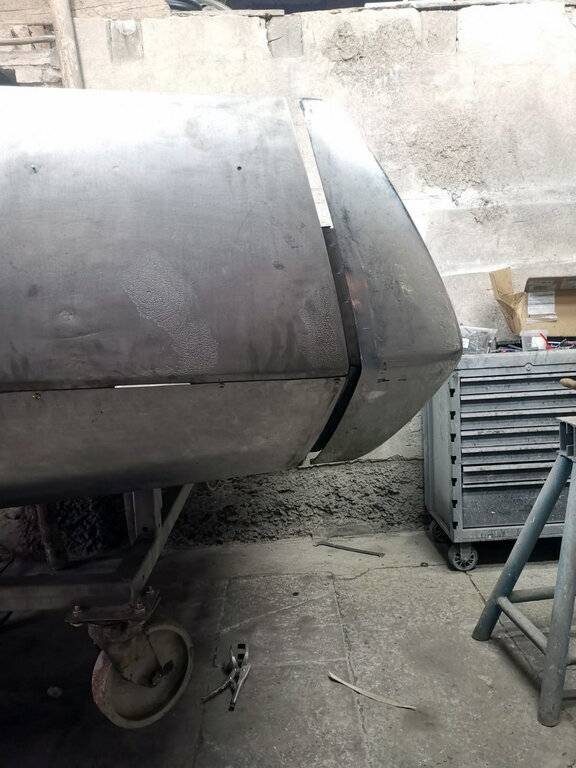

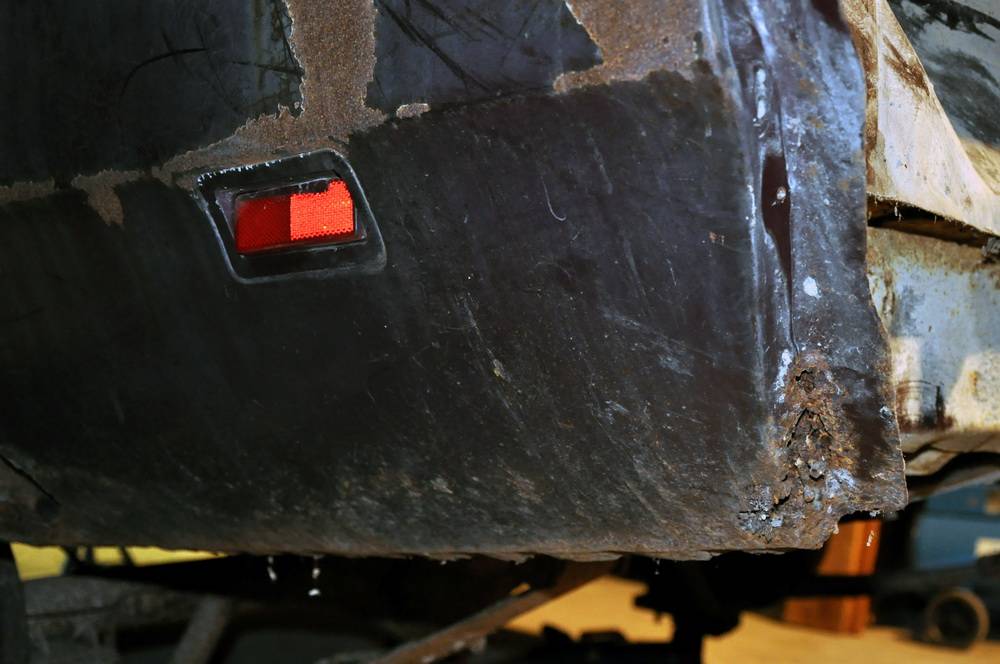

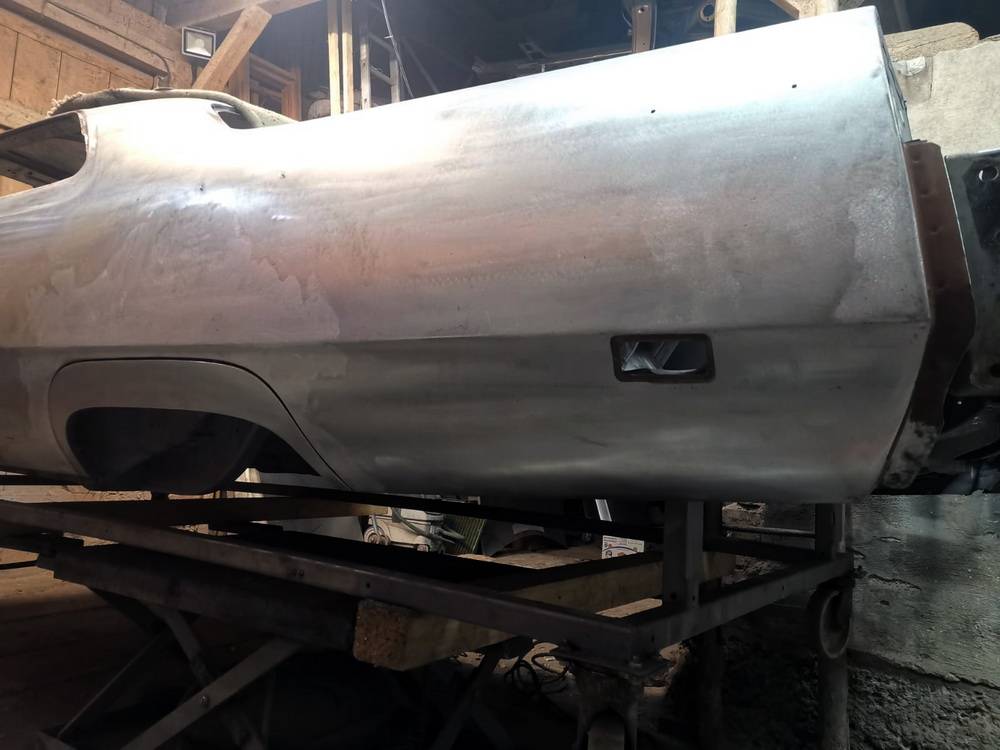

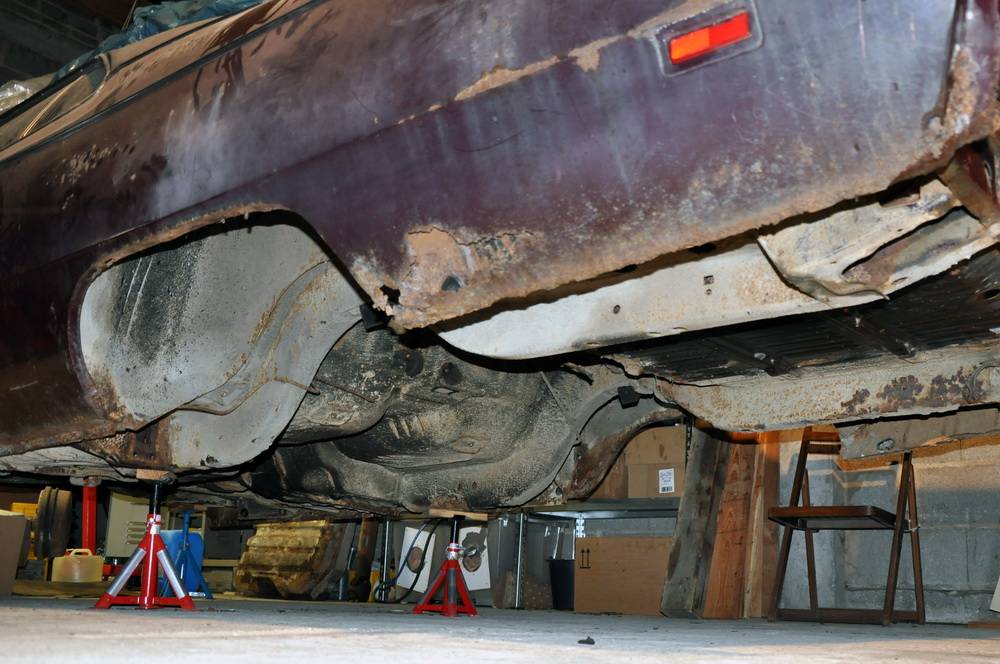

The Driver Side Wheel Well was made completely new from scratch because it was mangled pretty bad and was rusted thin.

Wheel Well, Driver Side - 01.JPG

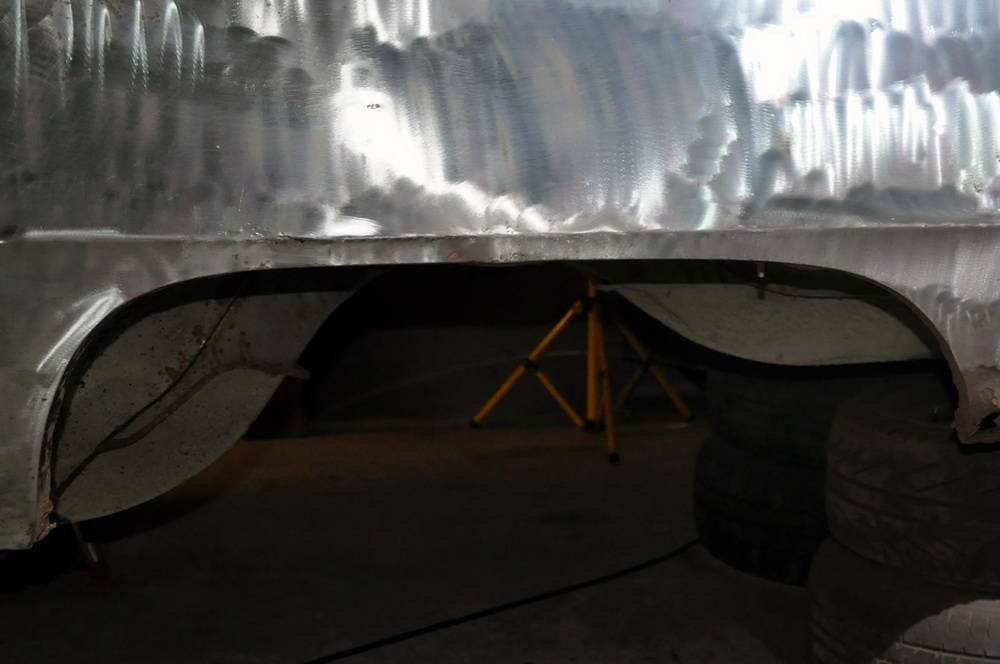

Wheel Well, Driver Side - 02.JPG

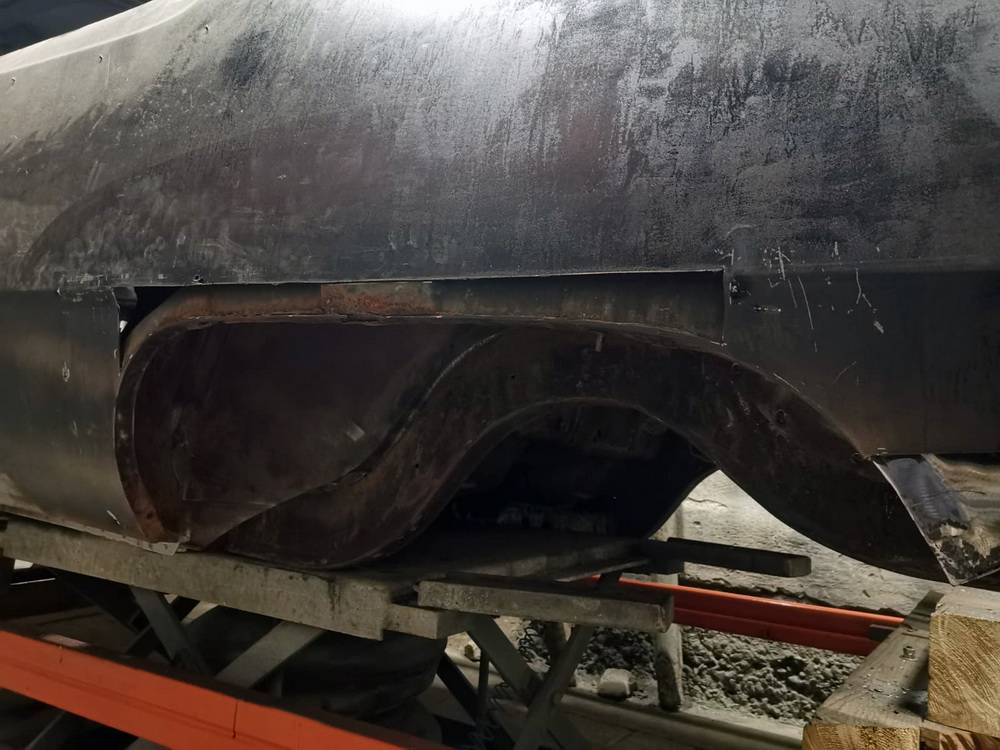

Wheel Well, Driver Side - 03.jpeg
Wheel Well, Driver Side - 04.jpeg
Wheel Well, Driver Side - 05.jpg

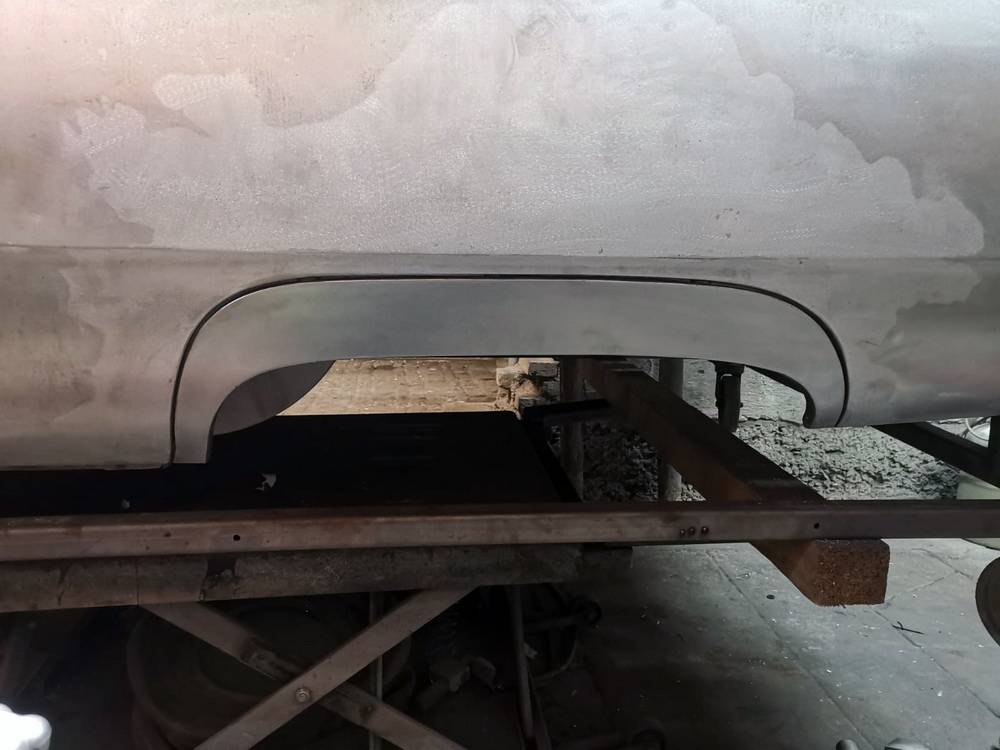

Wheel Well, Driver Side - 06.jpg

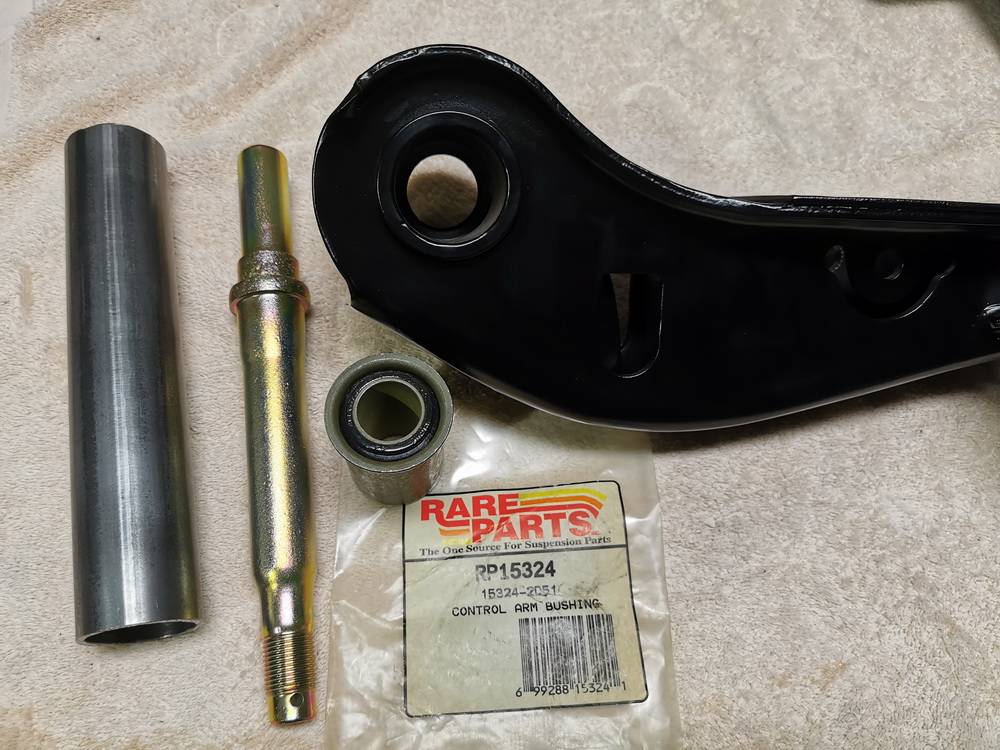

Are the upper control arm bushing meant to be a loose slip fit?!

The Originals were pressed on

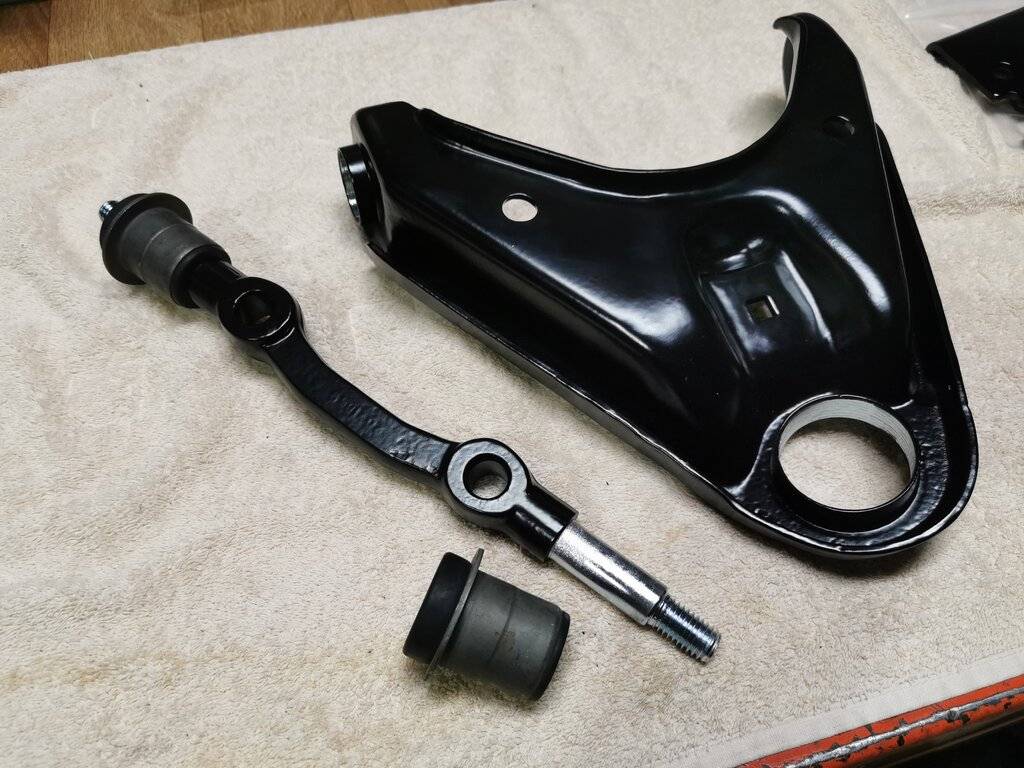

View attachment 409942


Just for whom this is interesting. It seems like its supposed to be "loose" like this. I managed to remove one of the old bushings from my old control arms intact and it fits exactly like the new one.

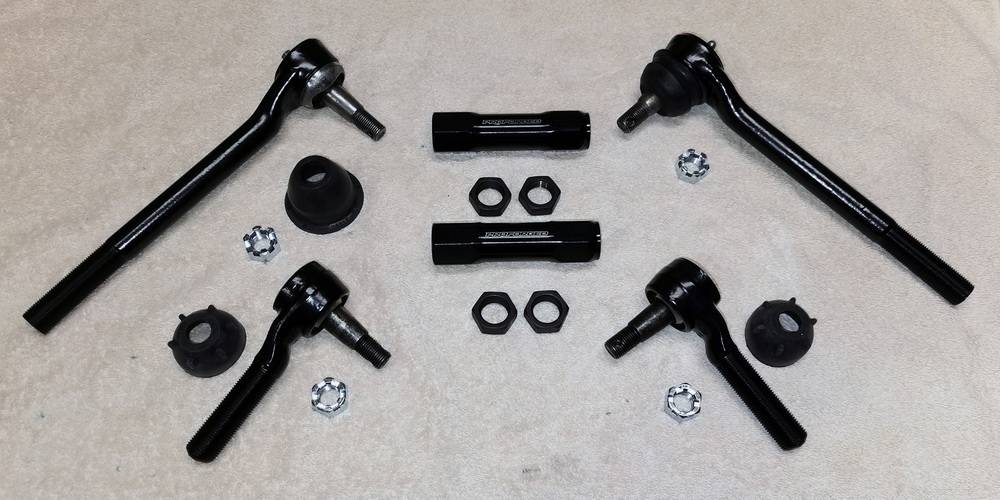

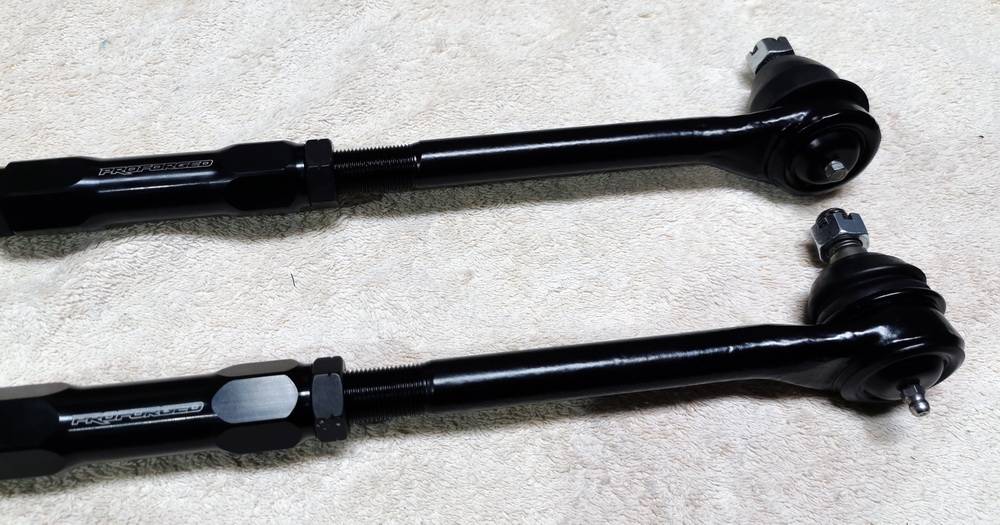

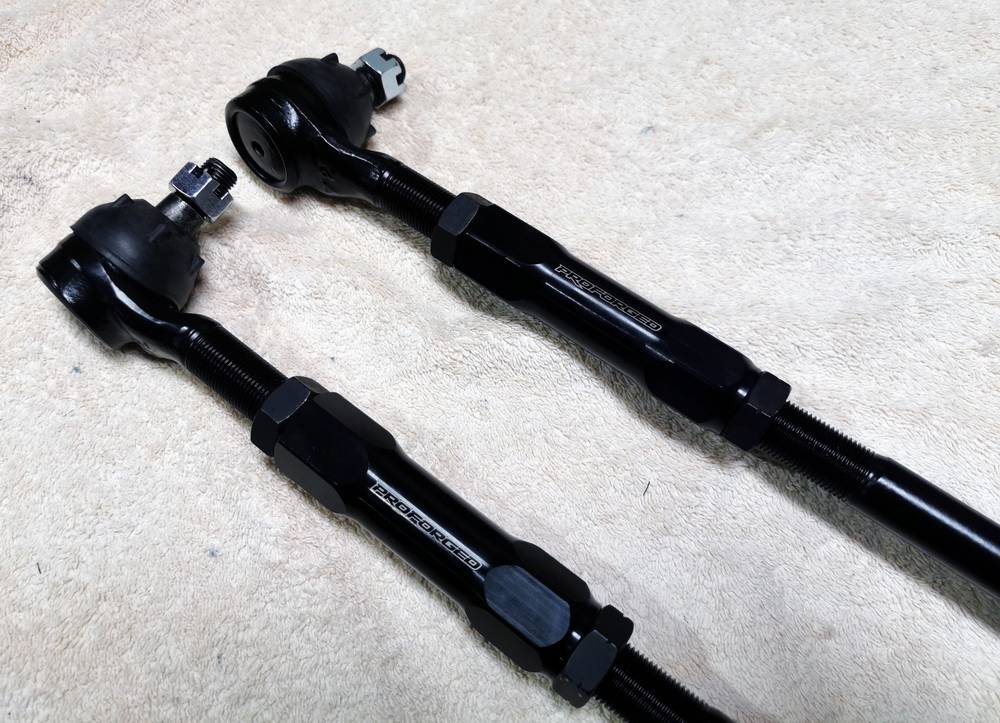

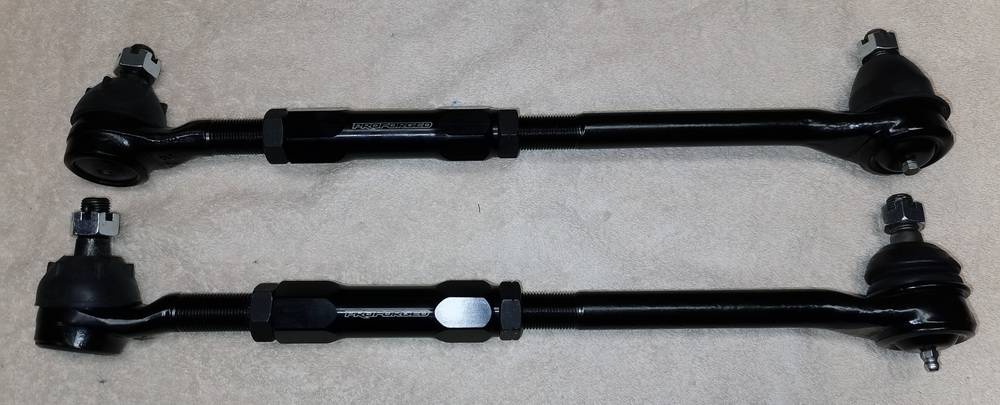

I bought brand new Inner (Rare Parts 25479) and outer (Rare Parts 25435) Tie Rod Ends from Rare Parts, got them painted and assemblem them with new Proforged billet adjustrment smeeves.

2020-10-26 17.21.13.jpg

2020-10-26 17.21.15.jpg

2020-10-26 17.33.40.jpg

2020-10-26 17.33.51.jpg

2020-10-26 17.33.54.jpg

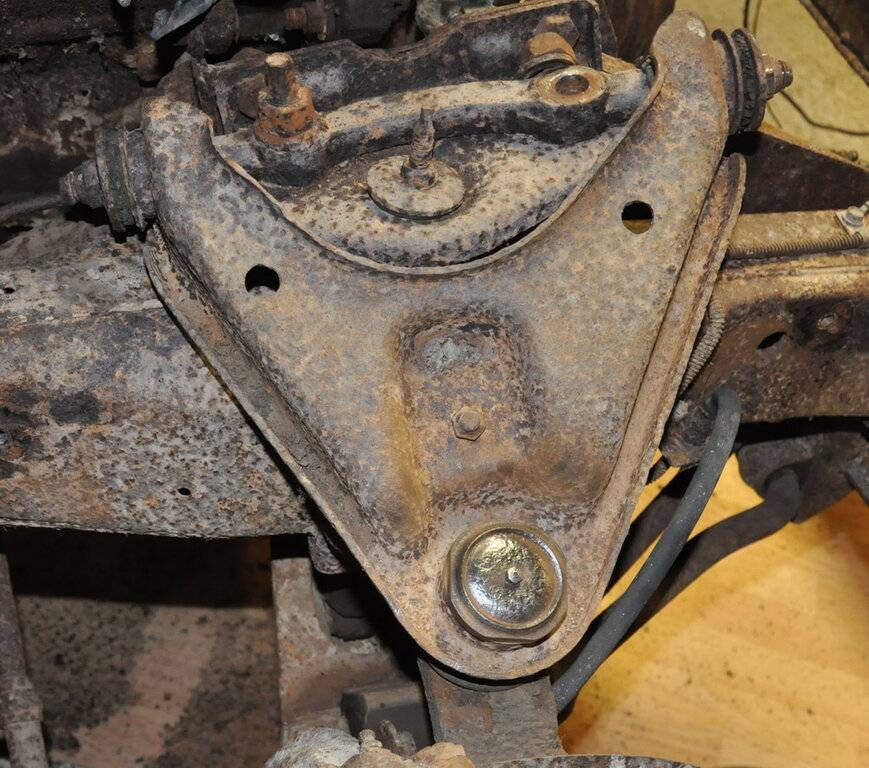

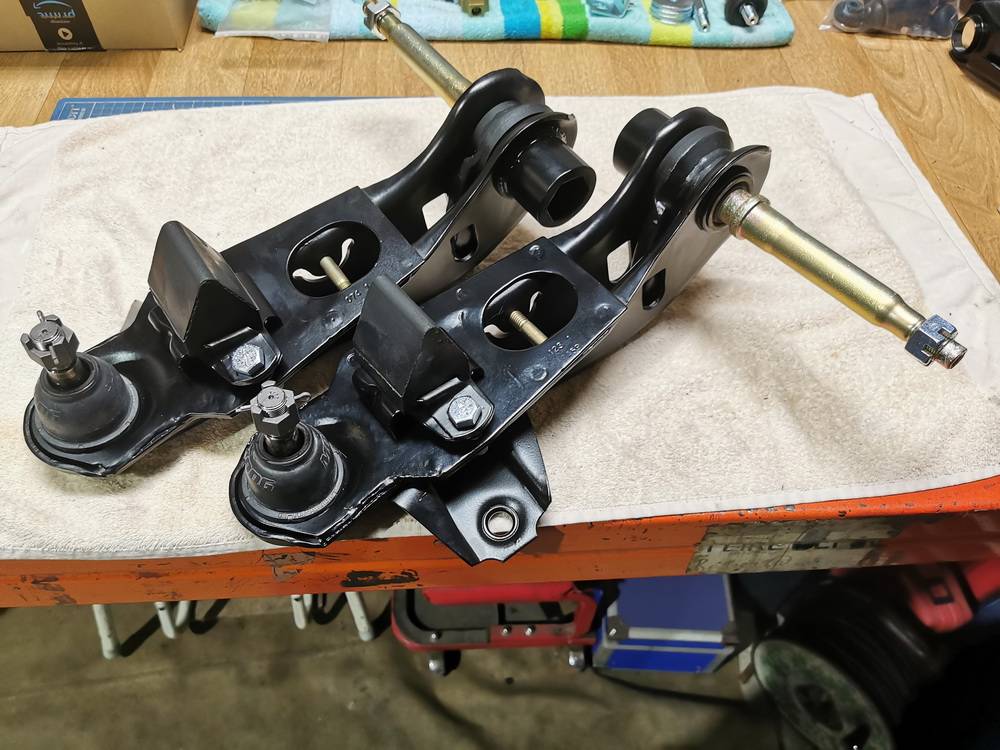

The Upper Control Arms were a bit more tedious to assemble, but in the end, everything went together pretty nice!

UCA - 001.JPG

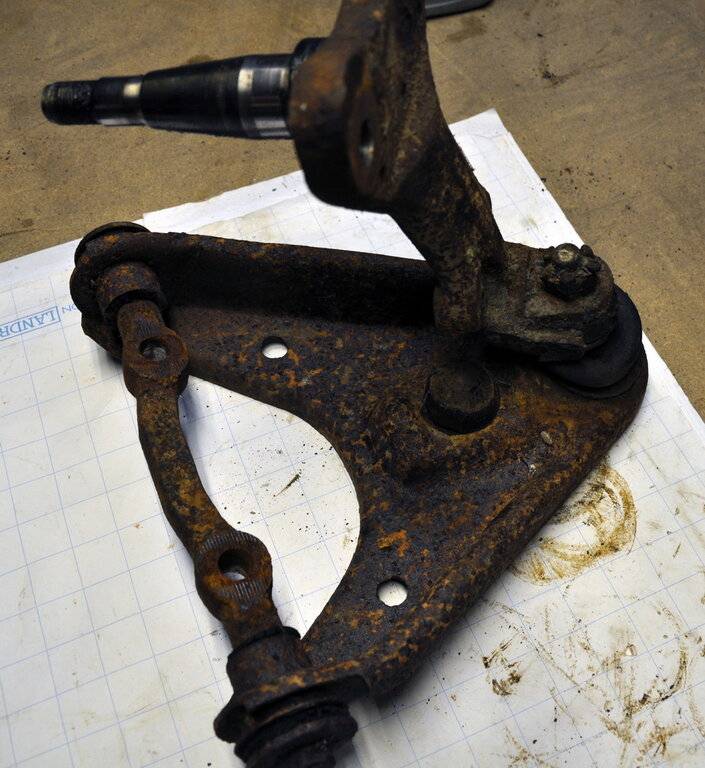

UCA - 002.JPG

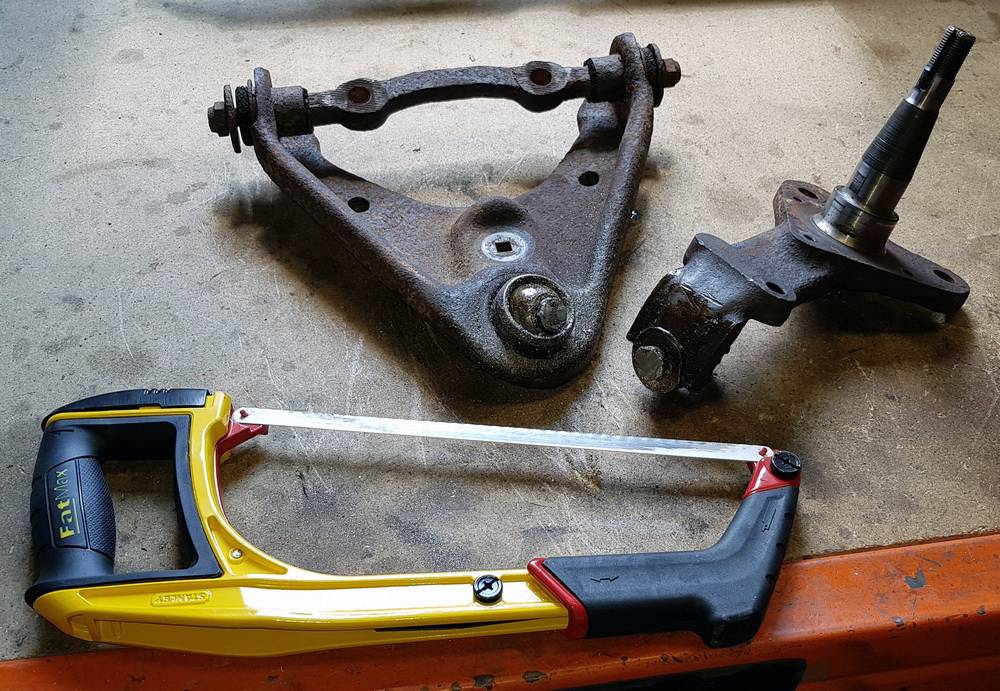

I tried everything to separate them from the spindles but in the end, the only way was to cut the ball joint off in order to be able to press them out of the spindles.
UCA - 003.jpg


After media blasting, I dumped them into an acid derusting bath for pore-deep derusting (like every single other part I restored)

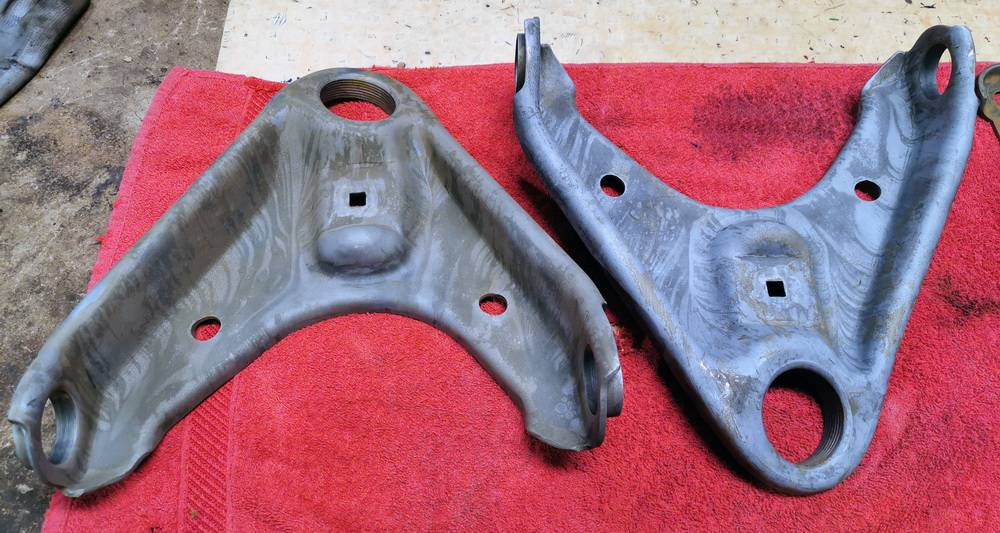

UCA - 004.jpg

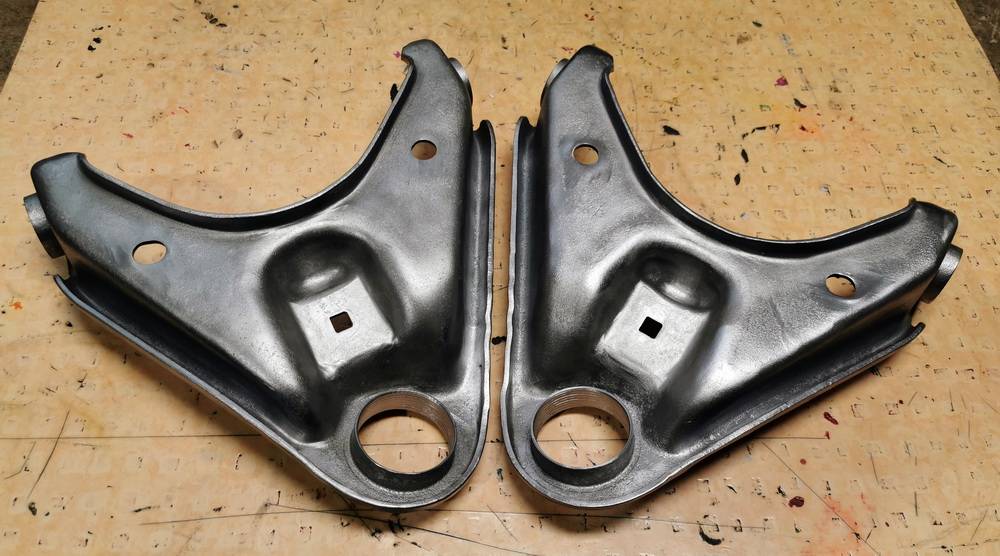

Then they got media blasted again...
UCA - 005.jpg

UCA - 006.jpg

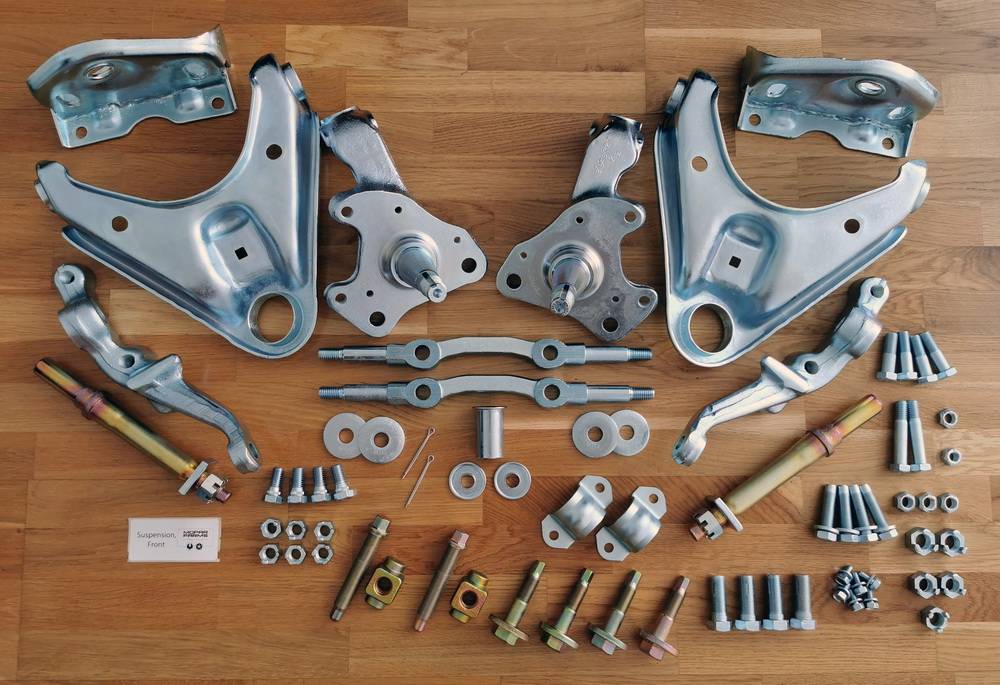

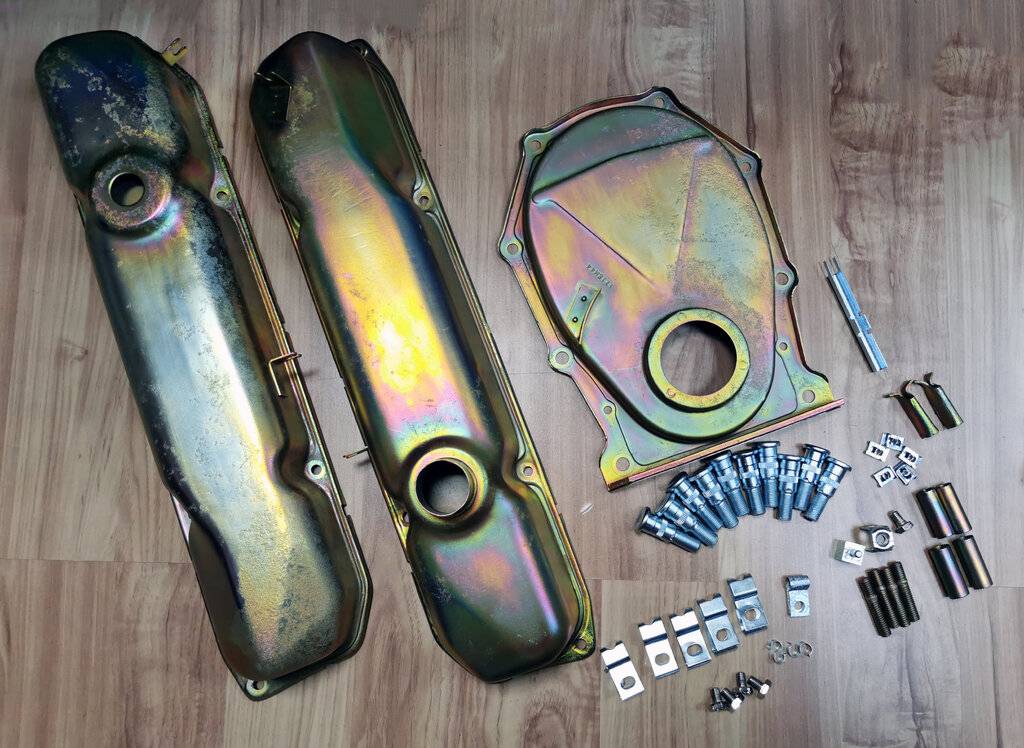

... before they went to get zinc plated.
UCA - 06a.jpg

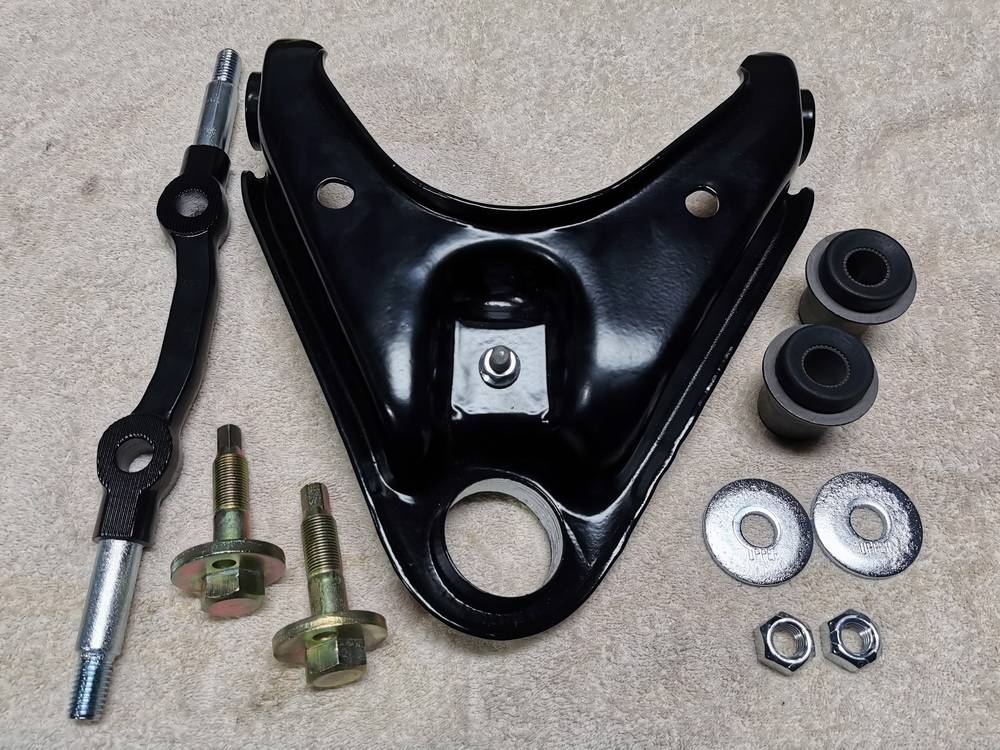

With a fresh coat of chassis paint, they were ready for assembly.
UCA - 007.jpg


New Bushings (Rare Parts 15136) took place of the old ones.

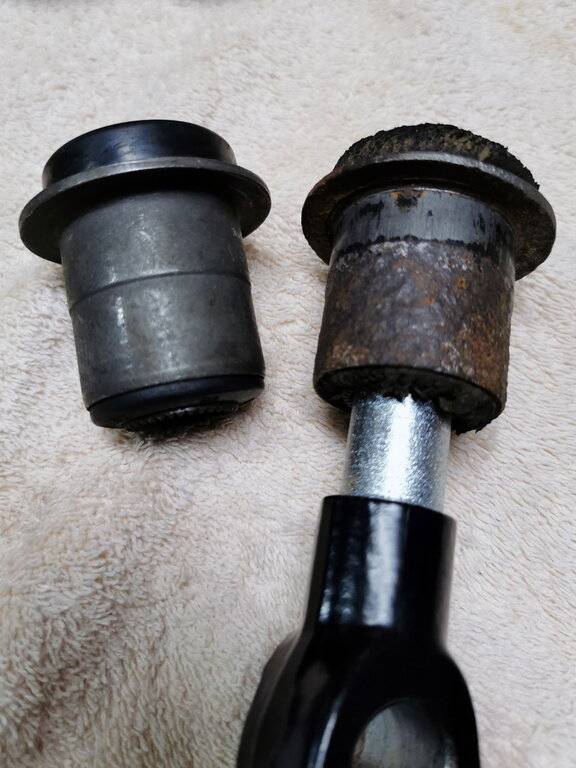

UCA - 008.jpg

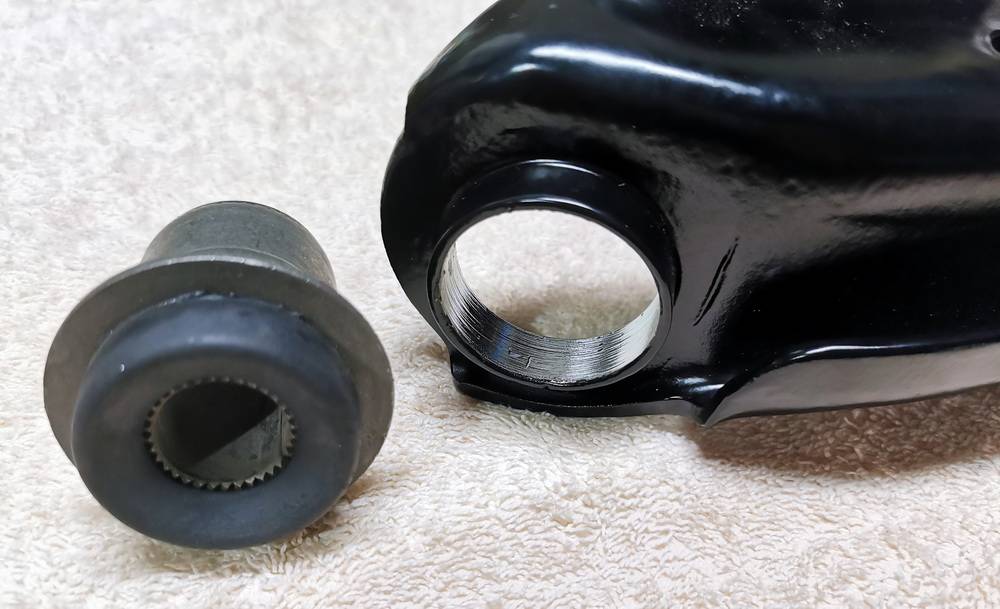

UCA - 009.jpg

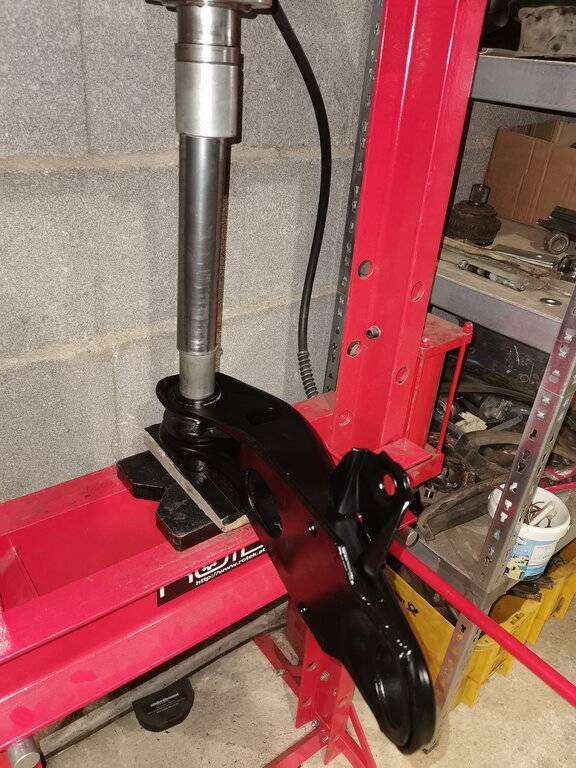

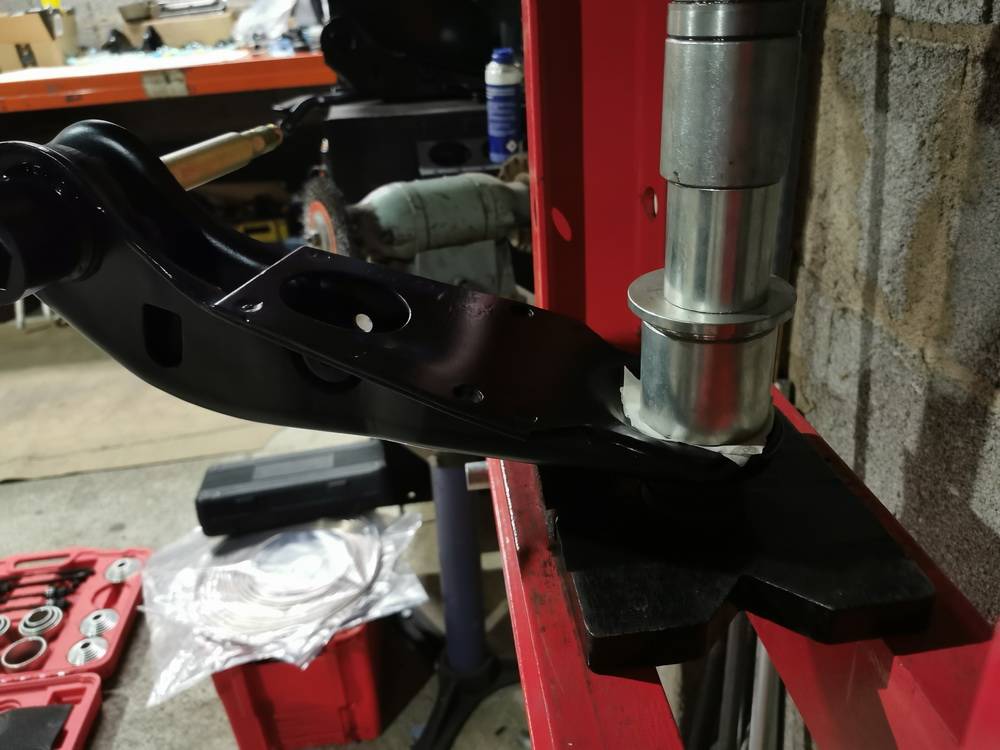

Pressing them in was not that easy because the control arm is quite bulky...

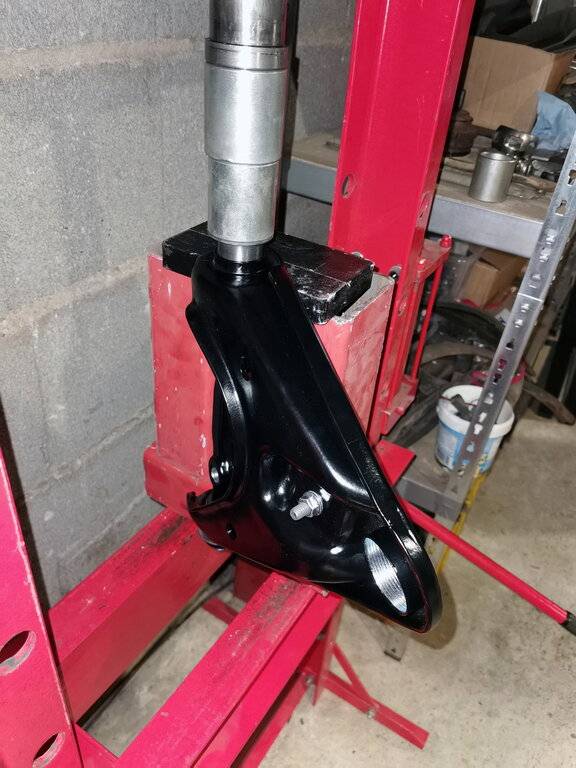

UCA - 010.jpg

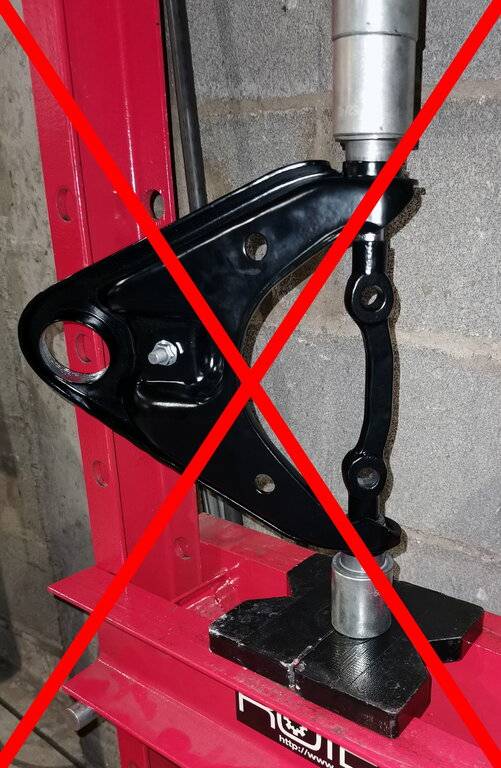

Do NOT attempt to press the bushings in like this, it will bent the control arm!
UCA - 010a.jpg


In the end, I managed to press all 4 of them in with just minor scratches :O

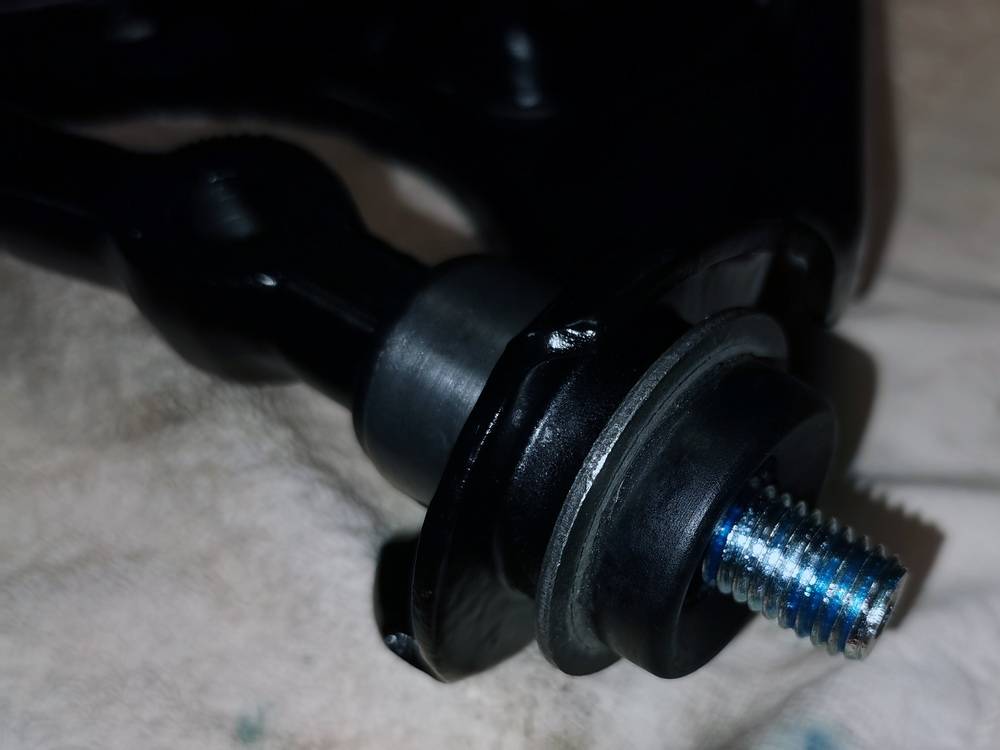

UCA - 011.jpg

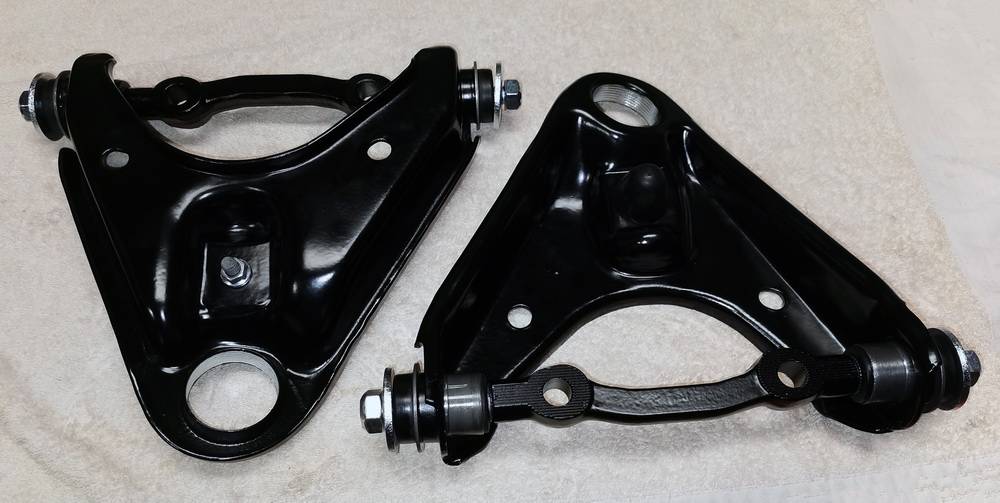

UCA - 012.jpg

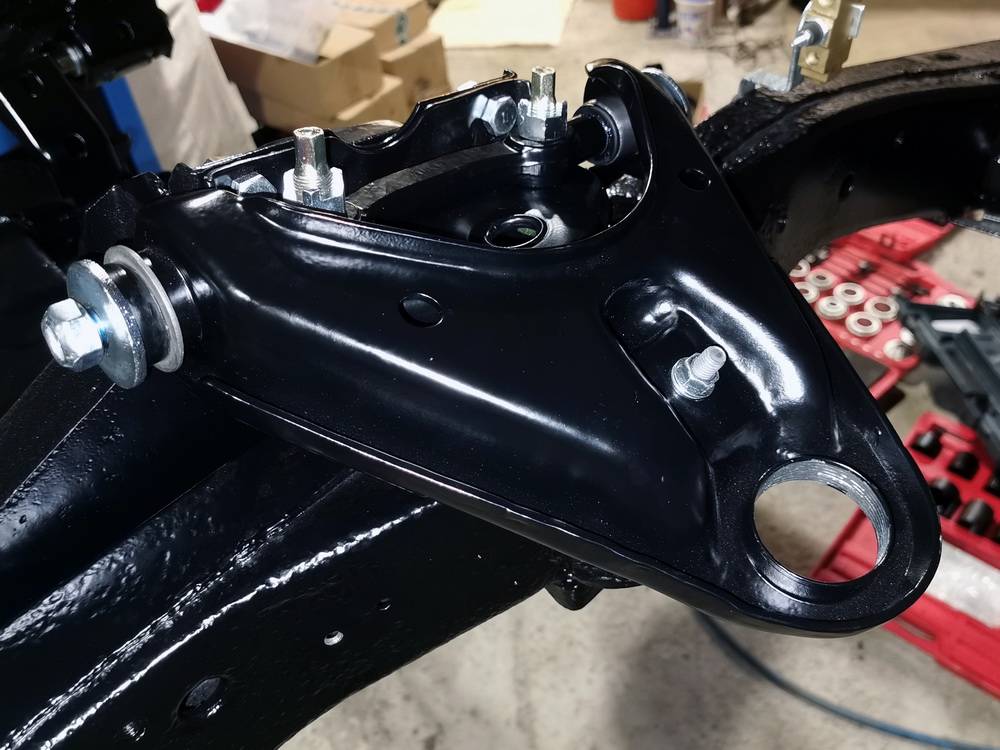

They installed on the car easily! Everything still has to be tightened to spec but I will do that when I'm sure it doesn't have to come apart again.
UCA - 013.jpg

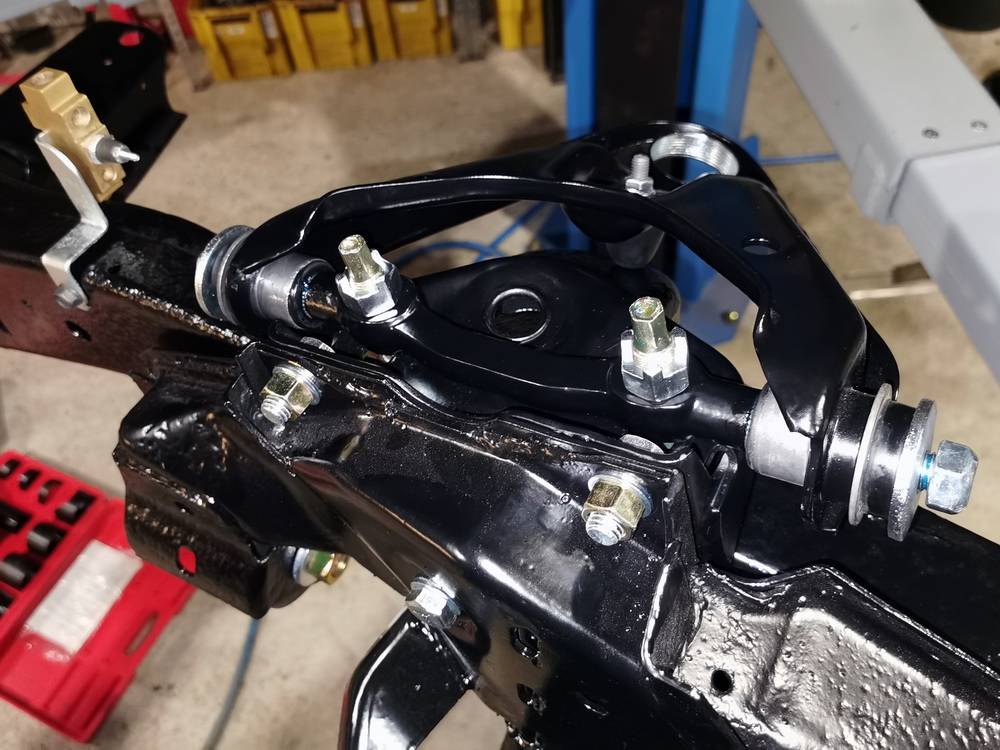

UCA - 014.jpg

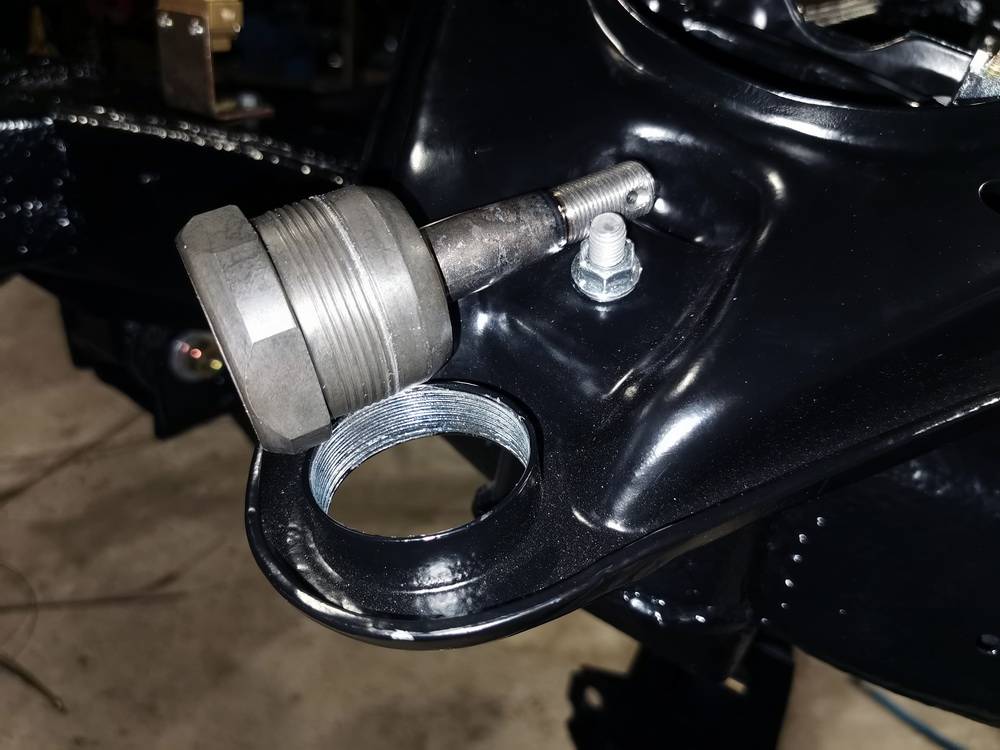

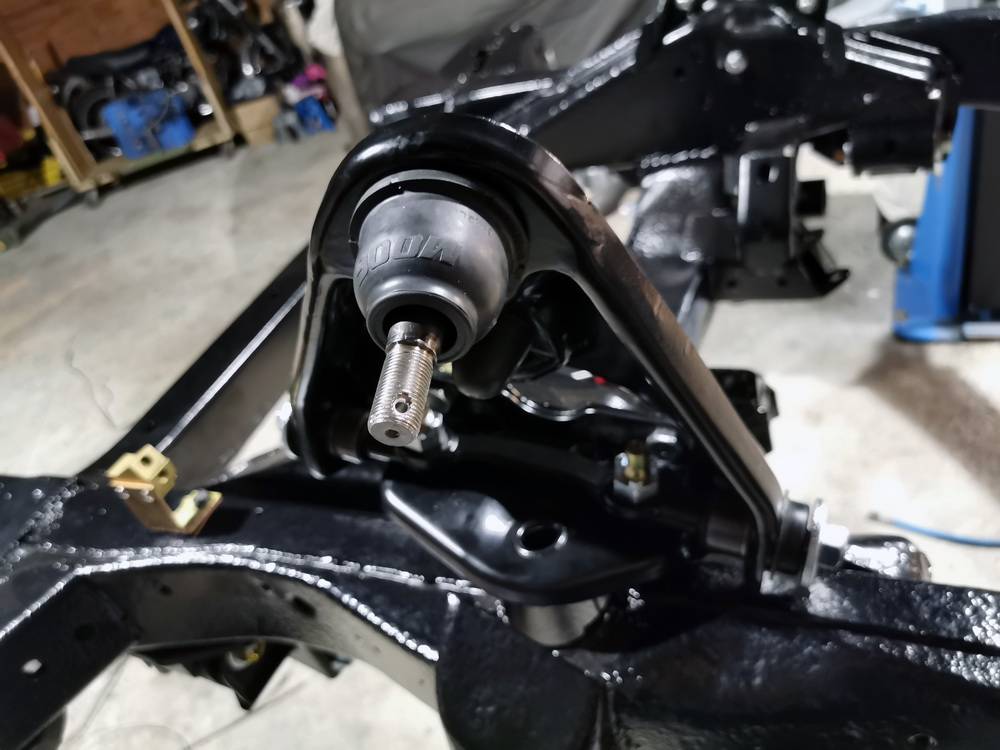

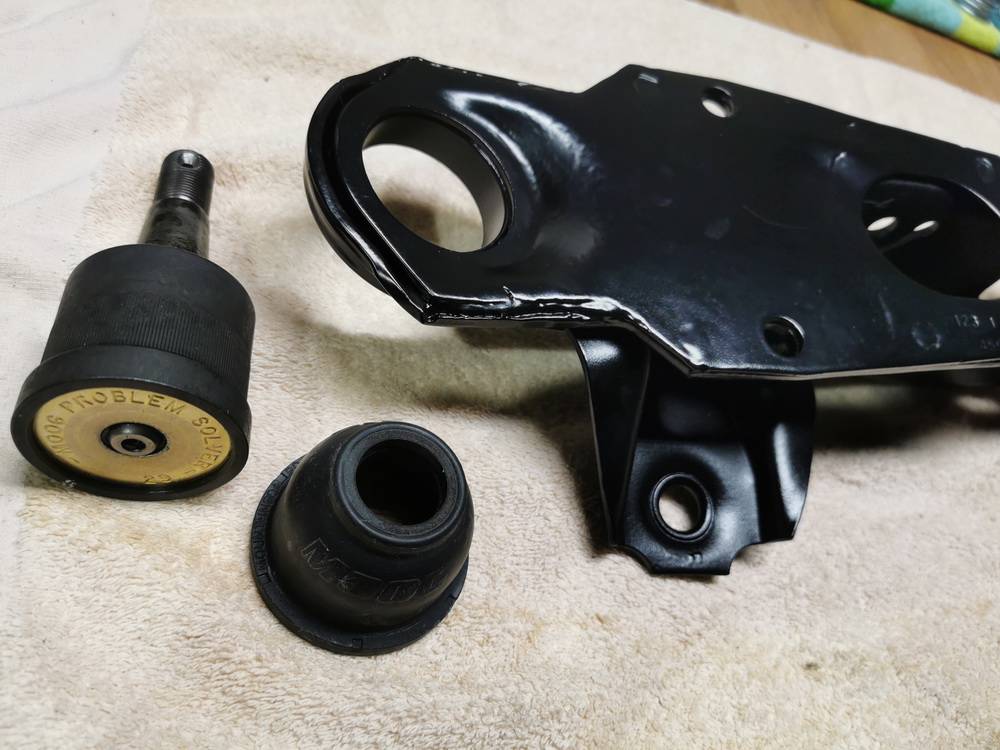

Ball joints screwed in easily as well and are already torqued down to 160ft·lb (FSM says min. 150ft·lb)
UCA - 015.jpg

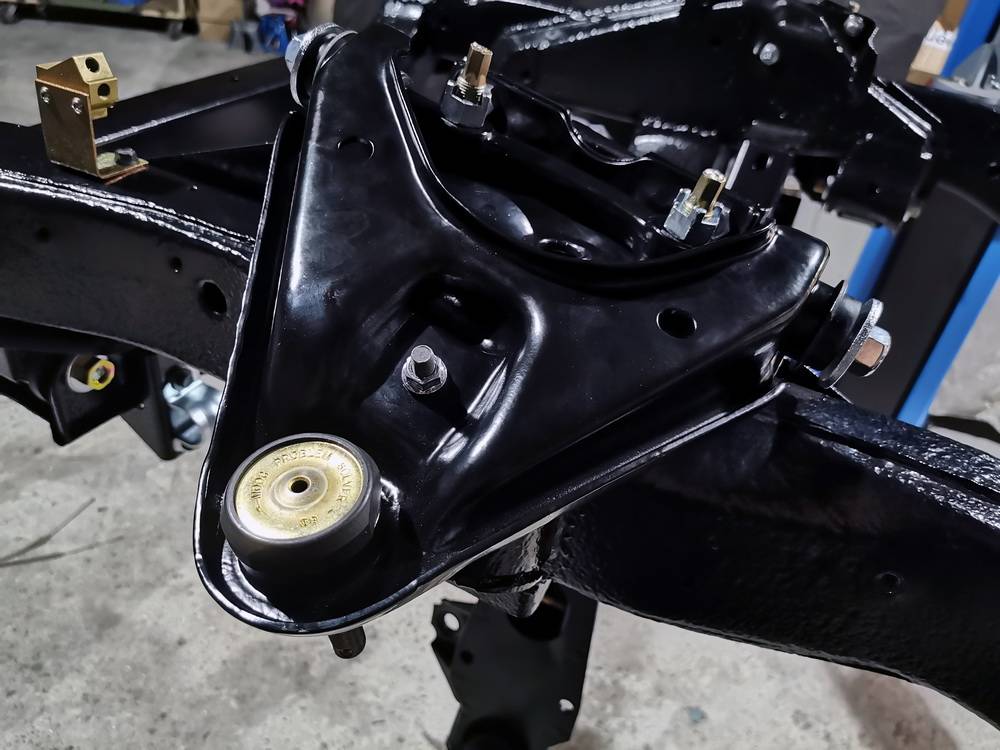

UCA - 016.jpg
UCA - 017.jpg

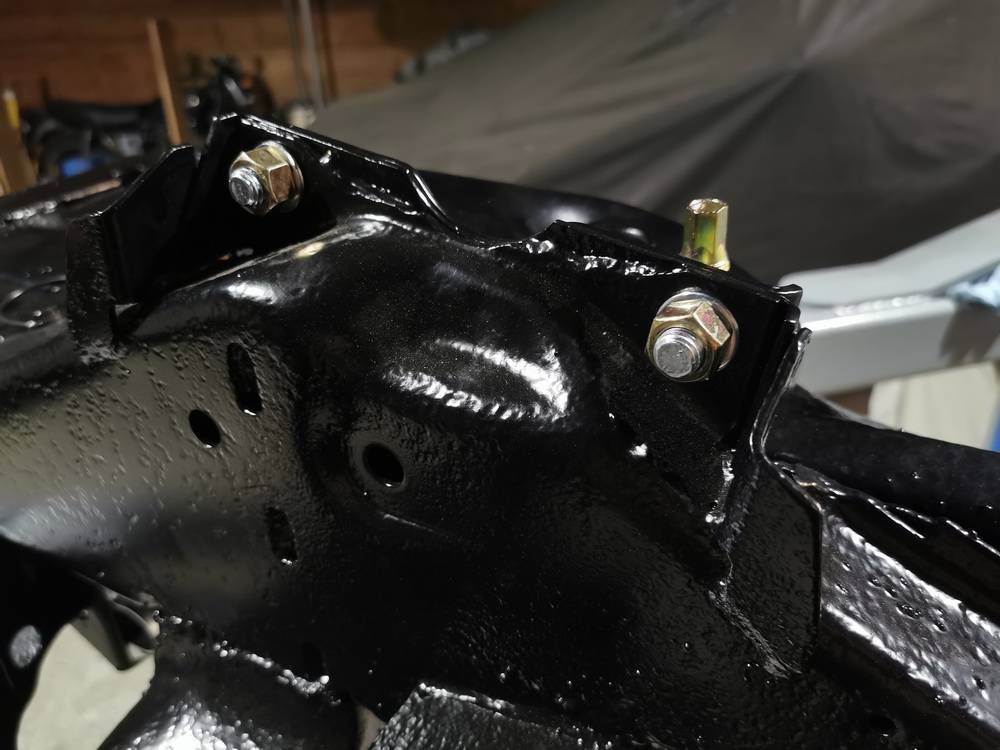

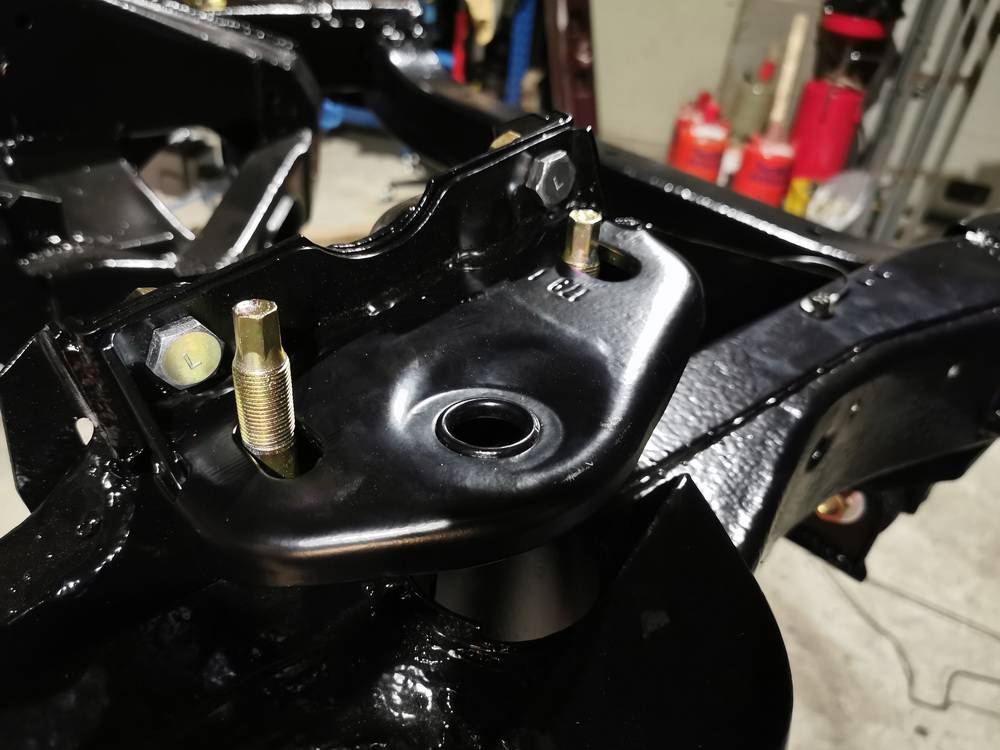

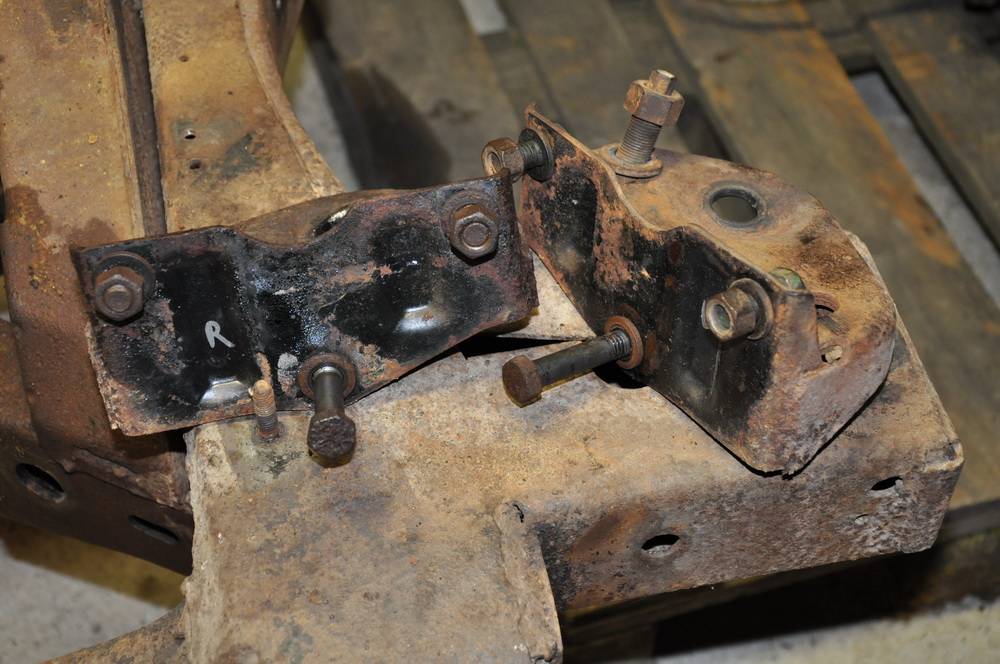

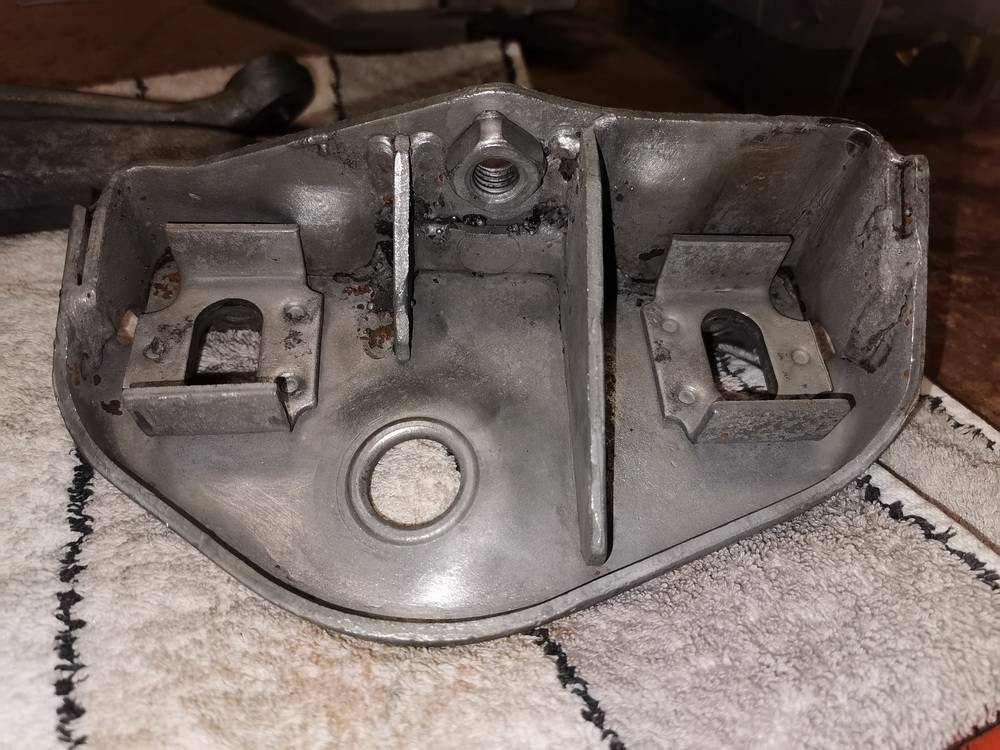

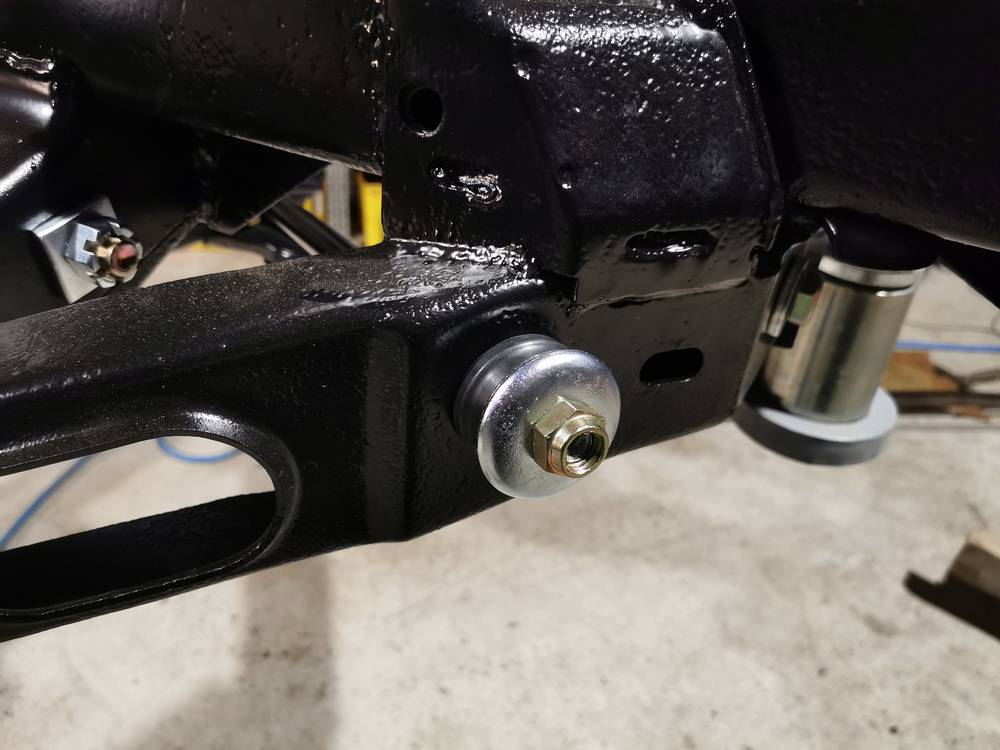

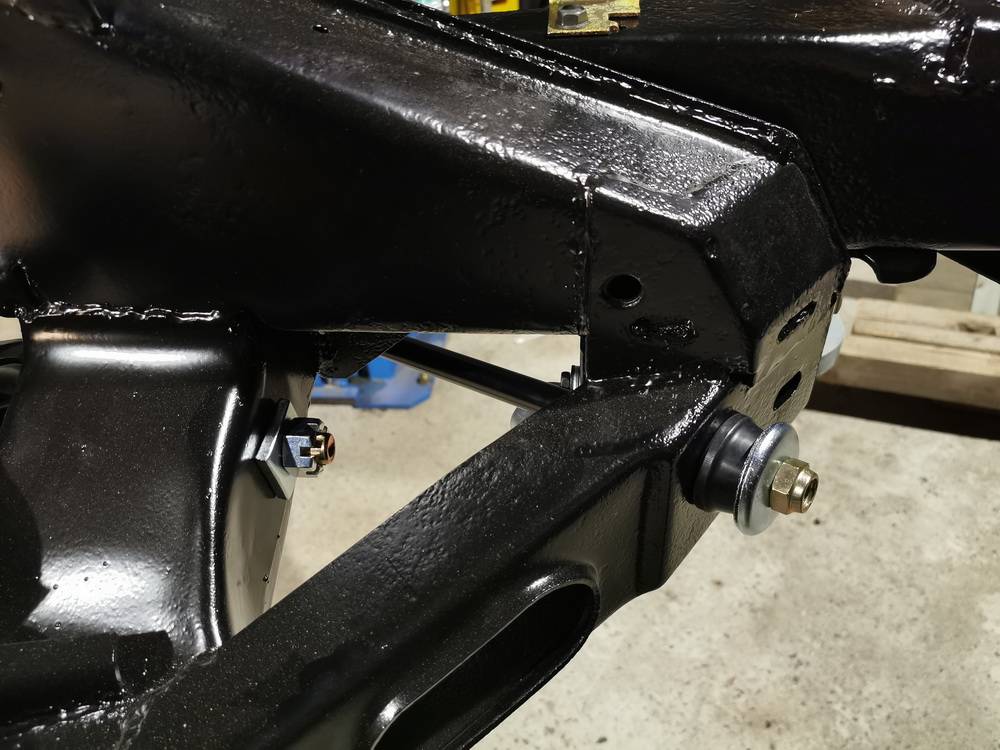

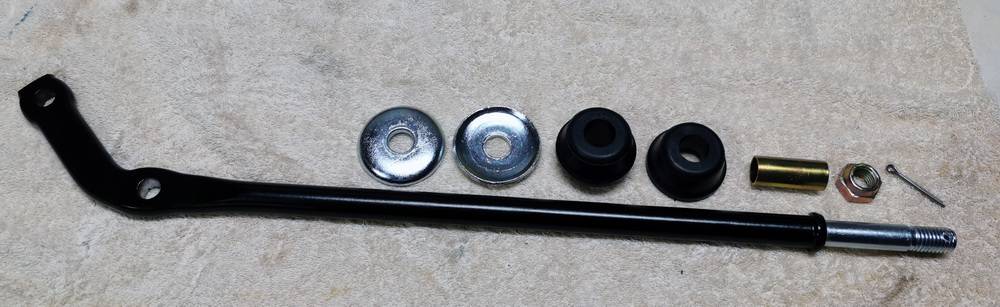

To install the UCAs I had to install their brackets first:

They got the same treatment of media blasting, acid, zinc and paint as the other parts. I was albe to reuse all the original hardware, I replaced only the nuts and washers because they are available cheap.

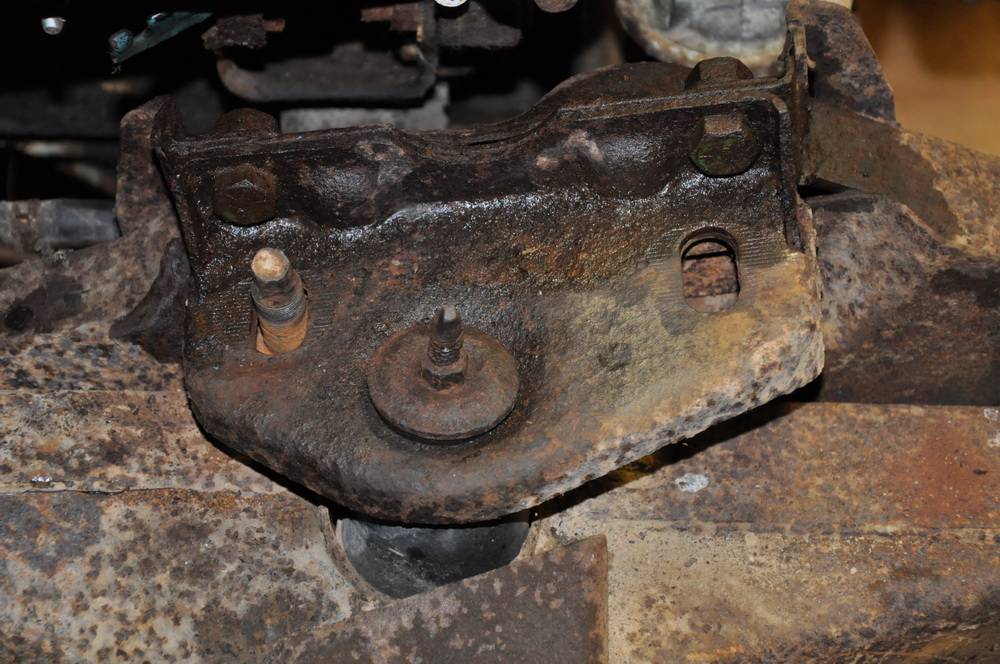

UCA Brackets - 001.JPG

UCA Brackets - 002.JPG

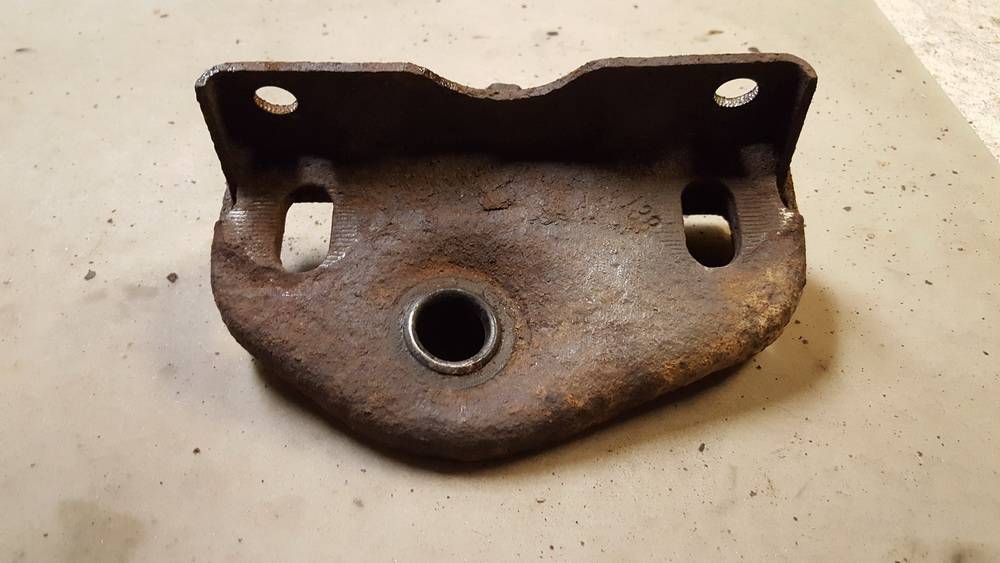

UCA Brackets - 003.jpg

UCA Brackets - 004.jpg

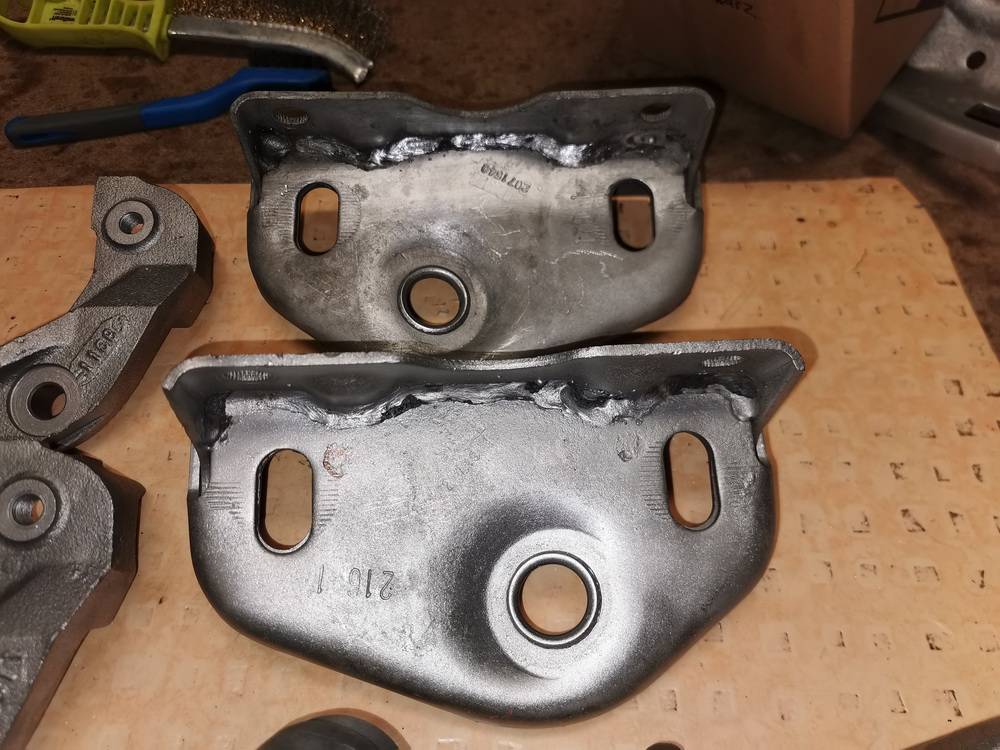

UCA Brackets - 005.jpg



UCA Brackets - 006.jpg

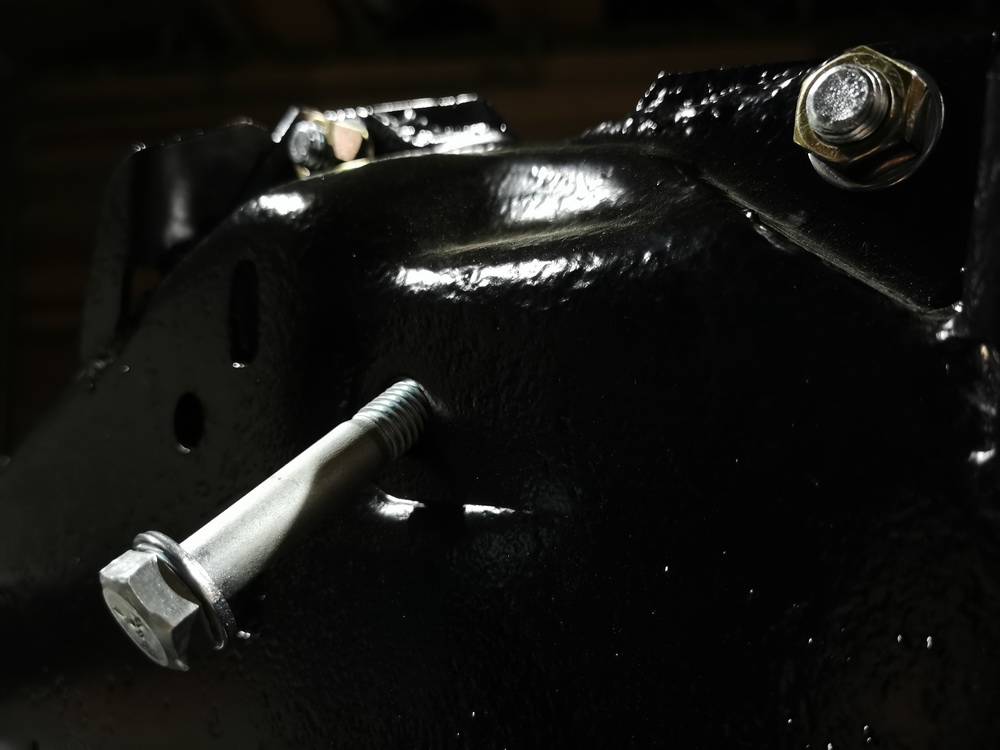

UCA Brackets - 007.jpg

UCA Brackets - 008.jpg

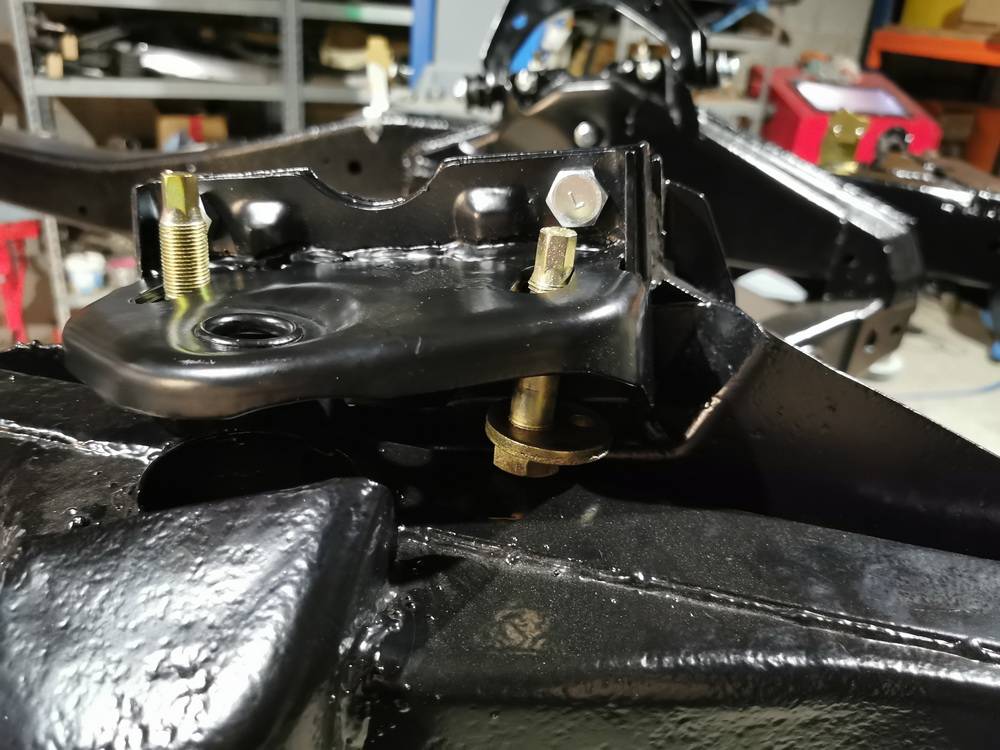

UCA Brackets - 009.jpg

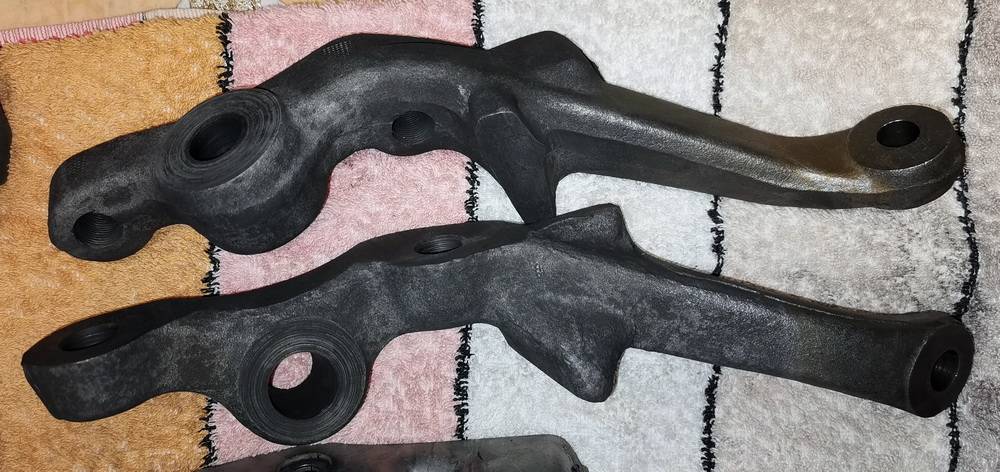

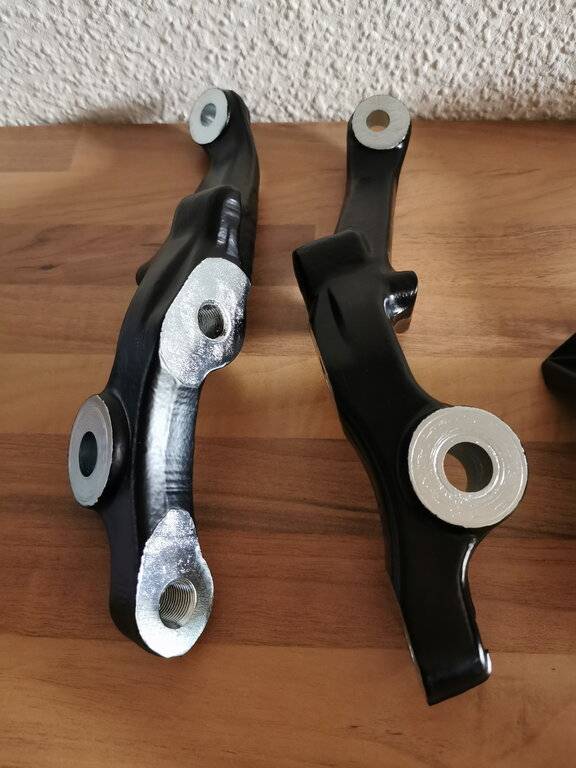

The spindles came from my 72 donor car bacause I will swap over the complete Kelsey Hayes brakesystem onto my 69.

They were not very rusty, just packed with 50 years of dirt and grease.

In the end they looked just like all the other parts :)

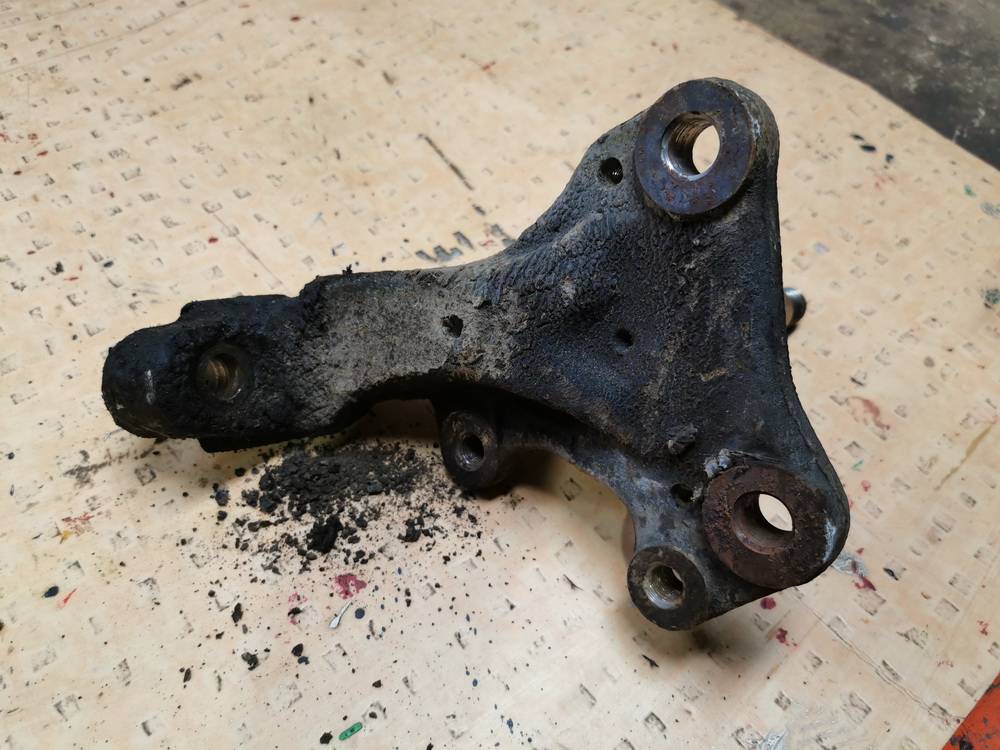

Spindle - 01.jpg
Spindle - 02.jpg
Spindle - 03.jpg
Spindle - 04.jpg


Spindle - 05.jpg

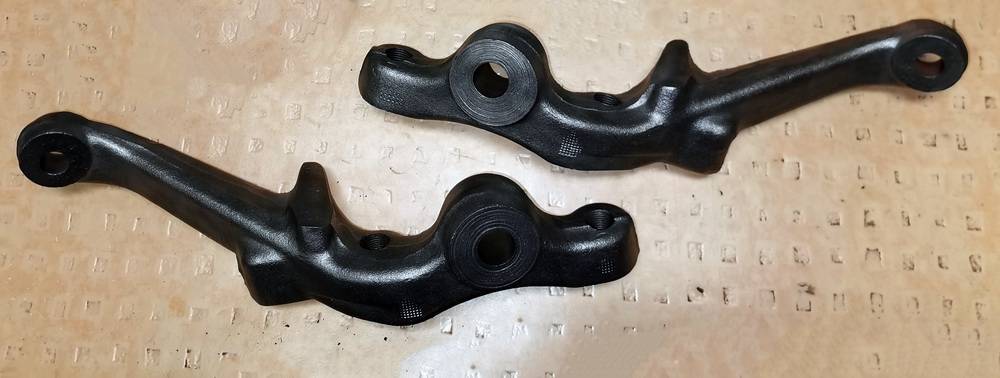

Spindle - 06.jpg

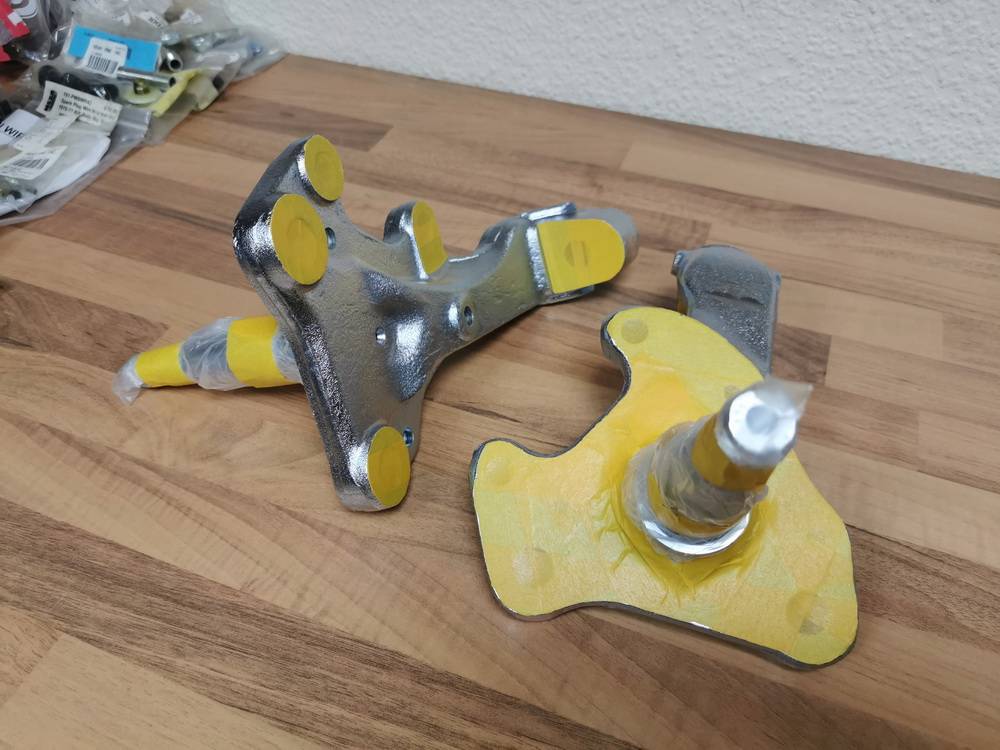

Spindle - 07.jpg


Spindle - 08.jpg

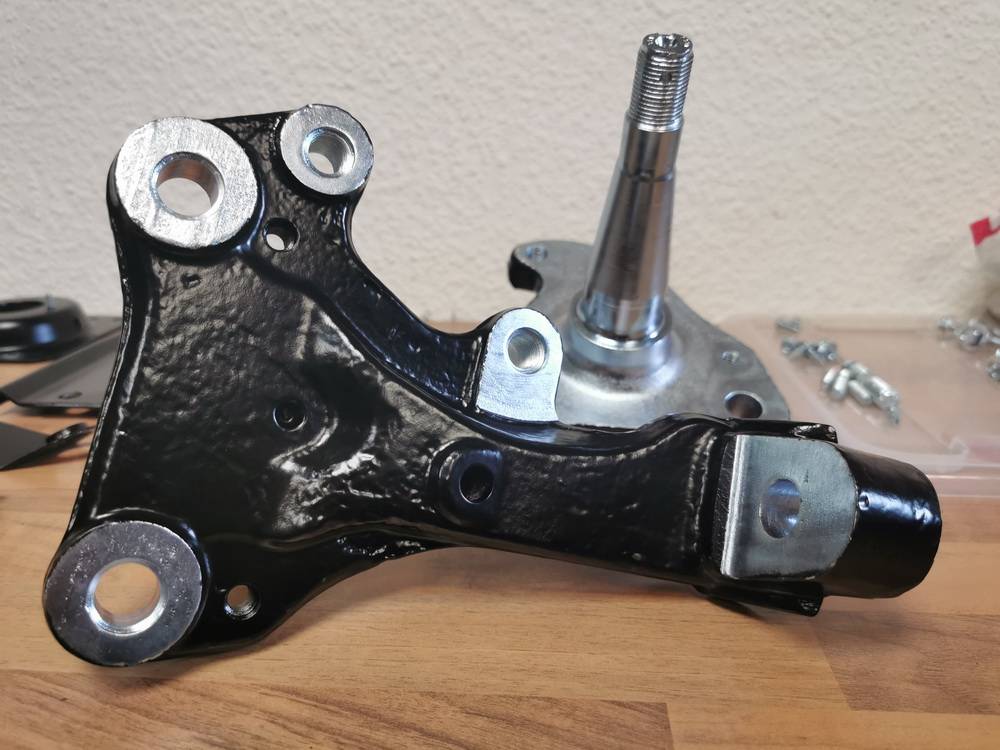

Spindle - 09.jpg


Spindle - 10.jpg
