Some more classic pictures

[Welder guy]

i consider these as classic pictures. but if you think a classic truck thread would be better then i can start one. content yea there is plenty of that. as far as knowledge no am not that smart.

LOL you’re plenty smart, no doubt about that .



[67newport]

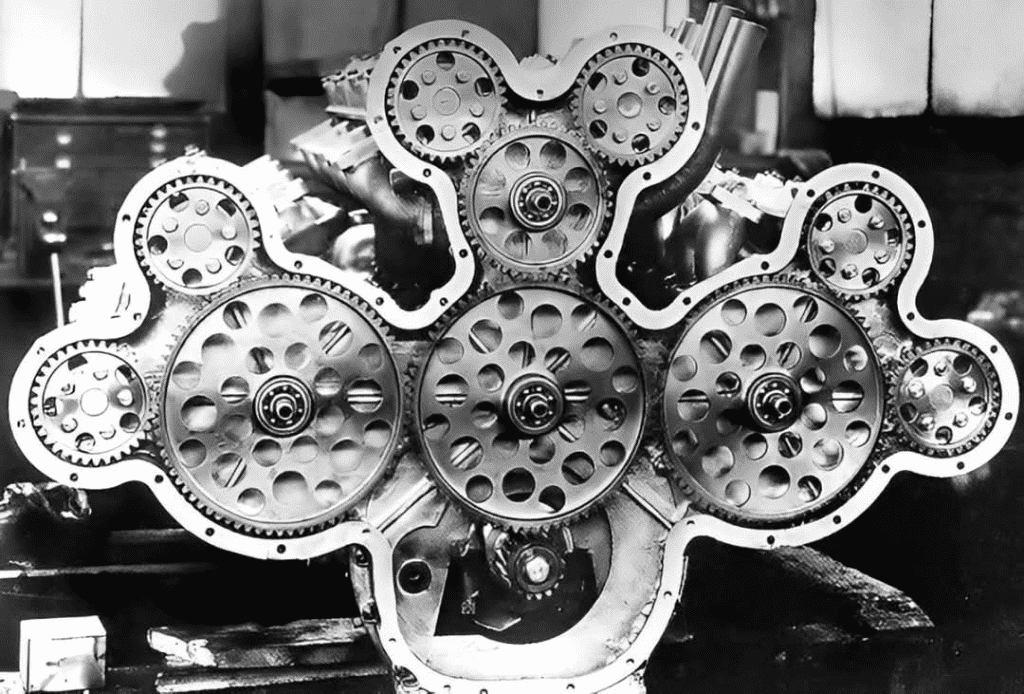

The complex gear-drive arrangement for the camshafts at the rear of the 24-cylinder Duesenberg. The pinion on the crankshaft had 17 teeth, the intermediate gears had 74 teeth, and the camshaft gears had 34 teeth. The center intermediate gear engaged an idler gear that had 45 teeth. The gearing drove the camshafts at half engine speed.

9 March 2013 – Old Machine Press

1 post published by William Pearce on March 9, 2013

oldmachinepress.com



[67newport]



[Welder guy]



[Welder guy]
