Stock leaf spring shackle length -- 5 3/8"???

[cld]

Hi folks,
I'm about to replace the rear springs in my 68 Fury with a set from General Spring. I'm wondering if the spring shackles are original. When I got the car many years ago, there was some talk about it having extended shackles from an unsuccessful attempt to correct the sagging rear. I haven't been able to find dimensions of this part in the service manual or parts catalog. The ones on the car are 5 3/8" long. Does that sound stock? I appreciate any input the FCBO gurus may have...

Thanks!



[polara71]

To answer this correctly please post a photo or two of what you have.



[cld]

Good point, should have snapped a pic on the way out the door. I measured it quickly before heading to work but didn't take a picture. Will do that after work.



[polara71]

There seems to be a variety of shackles out there. You want the correct ones.



[68plymouth383]

I have a good used pair of rear shackles from a 68 fury.



[cld]

I have a good used pair of rear shackles from a 68 fury.

How long are they? Can you get a quick measurement? If they're shorter than 5 3/8, then I probably need your set...



[MrMoparCHP]

Sometime questions are easily answered with the Factory Parts Book.

In 1968 ALL C-Bodies used the same shackle (Station Wagon was different)
Interesting, the 68 Imperial used the standard (non wagon) one with the tow package and a third number for the non tow package.


Alan



[cld]

I do have the 1968 parts book but I'll be damned if I can find dimensions for parts such as shackles in it.

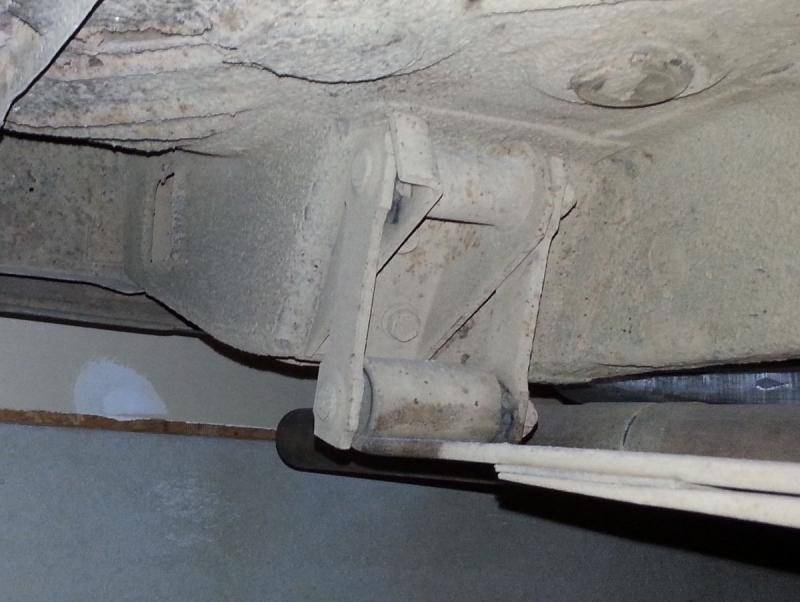

Here is a photo of one of the current shackles... it looks stock compared to diagrams in the service manual and parts book, but I'd like to find some confirmation if I could. And if I need to buy that set from Jason, I'd like to get moving on it... what do you guys think?



[commando1]

Those are the OEM shackles. They are what you want.



[polara71]

I agree, those are the factory shackles. I would replace the rubber if you're replacing the springs.



[mr. fix it]

triple agreement on this one. I just bought a set from springs n' things they look just like these ones pictured above only clean... and new.....:icon_lol:



[68plymouth383]

I agree you have the correct ones. I measured my good used ones there 5 3/8 also.



[commando1]

4 and oh....



[cld]

I agree you have the correct ones. I measured my good used ones there 5 3/8 also.

Jason, thanks a million for measuring them, it's great to have that confirmation. Thanks to everyone for weighing in based on experience as well. Good illustration of what a great resource this site is!
