383 kickdown rod spring

[rl000999]

which is correct spring pulling forward or backward -illustration or picture ???



[1970FuryConv]

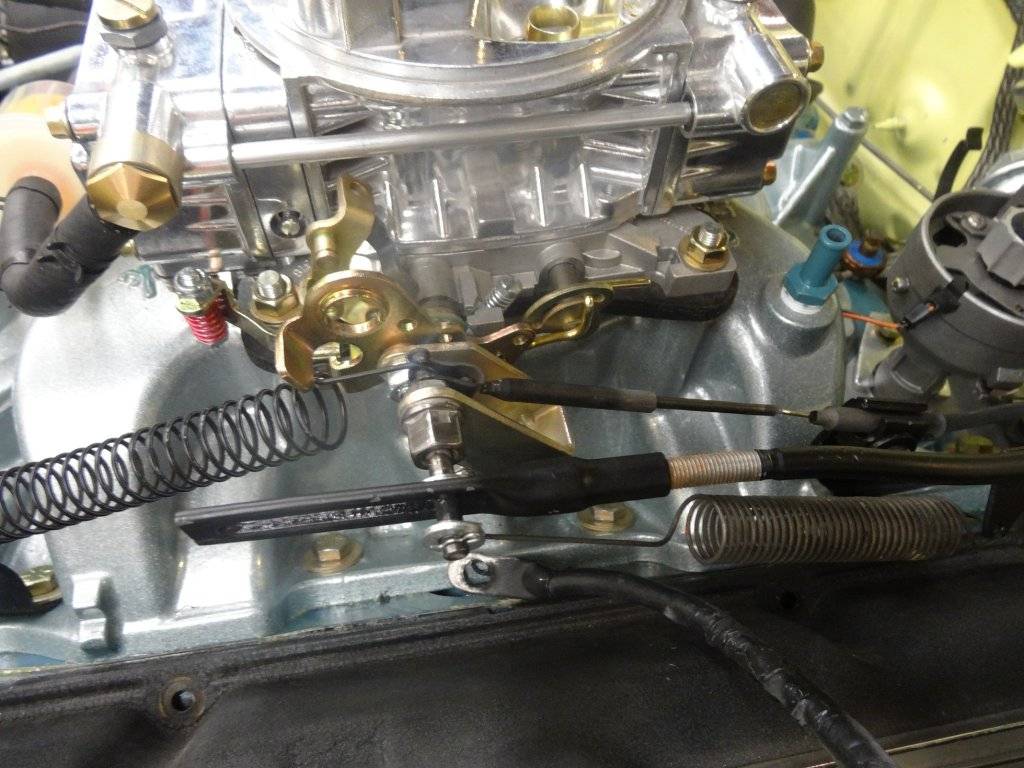

I have always used spring pulling backward to keep the back of the kickdown slot engaged with the throttle linkage stud



[Toolmanmike]

Some applications have the spring on the front and some at the rear, as long as the spring keeps the slotted rod against the pin on the throttle.



[rl000999]

Some applications have the spring on the front and some at the rear, as long as the spring keeps the slotted rod against the pin on the throttle.

I need this rod....what is the part # or description I should look for ???THX



[Toolmanmike]

I need this rod....what is the part # or description I should look for ???THX

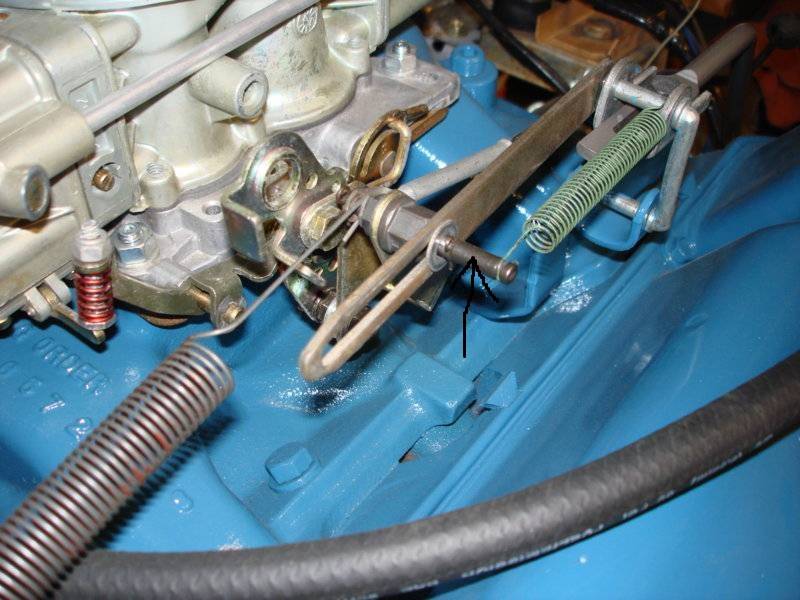

View attachment 694079

I'll let someone else answer that. I have info on small block applications.



[polarus]

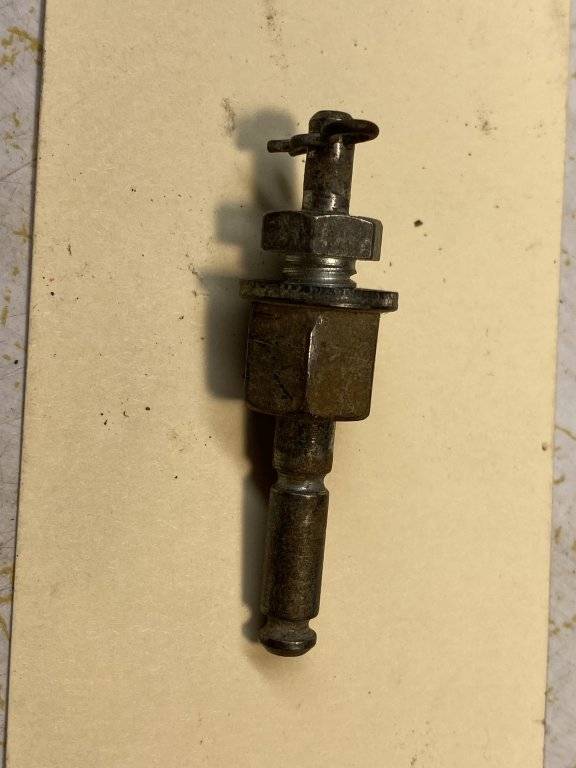

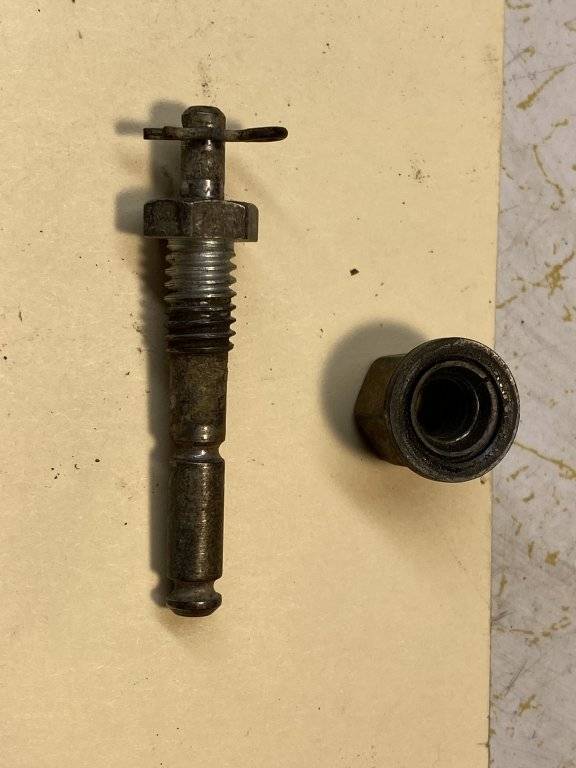

Air/Fuel, Carburetor Linkage/Linkage Studs :Mega Parts USA

www.megapartsusa.com

You can place an ad here, someone might have a used one.
