I thought the ones with the resistors on the bottom is the mechanical voltage regulator and the solid bars is the solid state

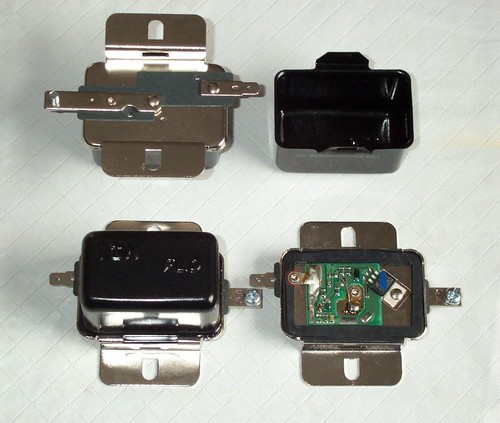

I stand corrected. I got things reversed. Here is a photo of a solid state VR.
I thought the ones with the resistors on the bottom is the mechanical voltage regulator and the solid bars is the solid state
Well..........Maybe you sell a regulator with a max Amp rating and it gives you a fuzzy feeling but my point is this. A voltage regulator regulates voltage period. It does not take into consideration as to how many amps the alternator is generating. It's job is to keep the system at a desired voltage. Nothing more. Here is more proof. I have a 68 Charger with an 06 SRT 6.1 Hemi. The 6.1 alternator has a 160 amp rating. The computer normally regulates the voltage internally via two field wires. If there were any amps flowing through those two wires they would need to be way bigger than the size 22 they are. When the PCM internal regulator fails, there is a recommended fix. The fix is to bypass the PCM and install an external regulator like the 1970-1987 cars used. We are talking about installing the same regulator used on a 1970 35 Amp system on a 160 Amp Alternator. As I said before and you gave me the big red X......The regulator does not care about amperes. I would have returned your red X in post 23 but I agree with almost all of it.Then I guess you learned something new today because the manufacturer of the voltage regulators that I sell lists a maximum of 65 amps.
Here is a photo of a solid state VR.
Well..........Maybe you sell a regulator with a max Amp rating and it gives you a fuzzy feeling but my point is this. A voltage regulator regulates voltage period. It does not take into consideration as to how many amps the alternator is generating. It's job is to keep the system at a desired voltage. Nothing more. Here is more proof. I have a 68 Charger with an 06 SRT 6.1 Hemi. The 6.1 alternator has a 160 amp rating. The computer normally regulates the voltage internally via two field wires. If there were any amps flowing through those two wires they would need to be way bigger than the size 22 they are. When the PCM internal regulator fails, there is a recommended fix. The fix is to bypass the PCM and install an external regulator like the 1970-1987 cars used. We are talking about installing the same regulator used on a 1970 35 Amp system on a 160 Amp Alternator. As I said before and you gave me the big red X......The regulator does not care about amperes. I would have returned your red X in post 23 but I agree with almost all of it.
Well it sounds like the old mechanical ones had current pass through them? If so then 2 people are correct.
Hasn't been said in this thread yet, but amp capacity of an alt doesn't matter, it's the draw of the components hooked up in the car. A 160a alt will only ever produce 30a if that's all the system needs
READ THIS AND ACCEPT IT:Well it sounds like the old mechanical ones had current pass through them? If so then 2 people are correct.
Hasn't been said in this thread yet, but amp capacity of an alt doesn't matter, it's the draw of the components hooked up in the car. A 160a alt will only ever produce 30a if that's all the system needs
Simplified explanation....
All the regulator does is turn the field off and on. All it does... it senses voltage, sees that it's down, switches the field on and then off when it hits the right voltage. No current passes through them. Don't believe me? Look at the small wires going to the field connectors. 65 amps would fry those pretty fast...
Mechanical or electronic regulators do the same job... The electronic ones do it a little better and (in theory) are more reliable because of no moving parts. It's still just turning the field off and on.
The current load is what's important with alternator sizing. You can bolt a 100 amp alternator on a car that has a 35 amp draw and it's not going to fry anything. All you are going to draw is 35 amps and all the alternator is ever going to do is put out 35 amps. Put a giant amplifier or two, and A/C system, fuel pumps etc. and now your are drawing more than 35 amps and your 100 amp alternator is now going to do its job and then you should be increasing wire size etc. Common sense needs to prevail.
A standard automotive lead acid battery at 100% charge should measure 12.6 volts. (2.1 volts per cell ) unhooked from the car. While I suppose that if you unhook it immediately after running the car, it might be over 13 volts, I would expect it to settle back down to 12.6 volts.
OK, back to my suggestion... Did you check it with another voltmeter?
I've gone through 3 of those CPS with nothing but problems before I wised up and went with the newer style regulators. I know of others have had problems with them too. I'm not getting into another pissing match about these from people that say otherwise! Do yourself a favor, just upgrade to the new style regulator and be done with it! Good Luck
Stubs, I have never disagreed with you that the "new style" '70 & up voltage regulator is a better part. Please stop implying that the ones that I sell are junk. There is more than one manufacturer of this style voltage regulator. Please stop implying that the ones that I sell are junk. There is more than one manufacturer of this style voltage regulator. The ones that I sell are made by Regitar, a huge worldwide manufacturer of automotive parts.

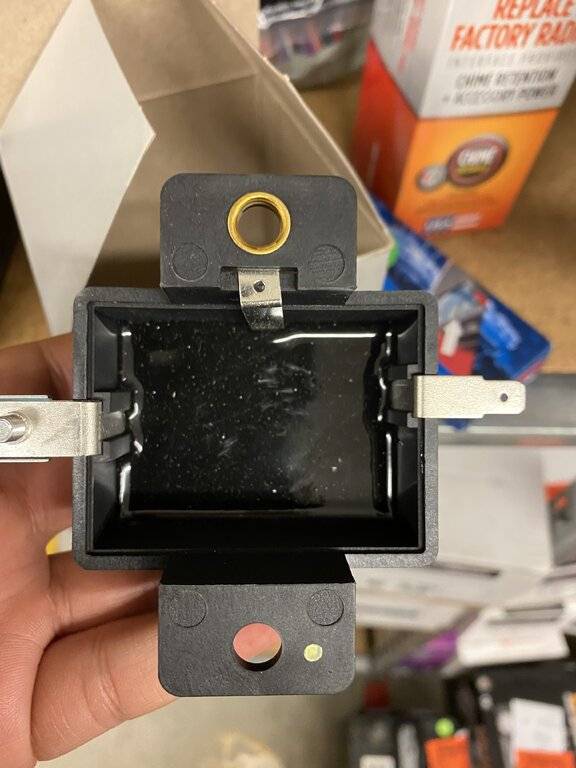

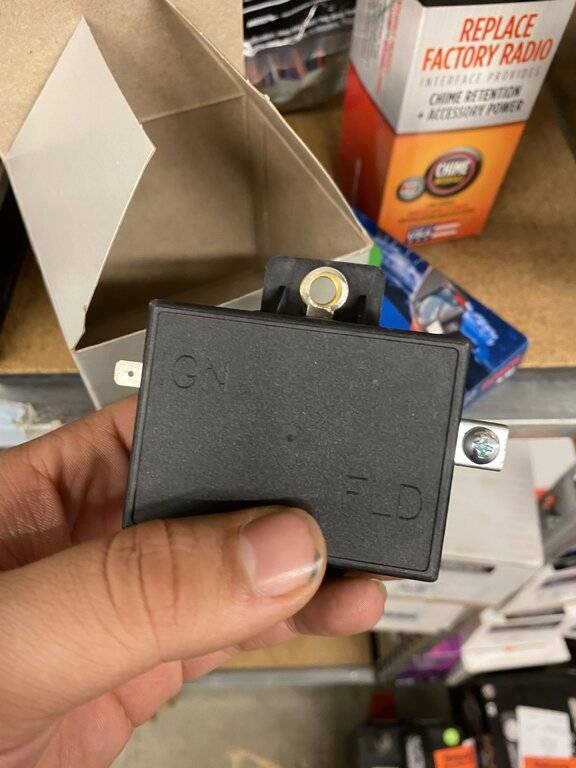

I just ordered in a new one, this is it. Looks to be a solid state, looks identical to the one I already purchased but ill try it out
View attachment 373201
View attachment 373202
When Big John talks, I listen. He is the EF Hutton of the C body world.
Get it working right first.Going to attempt to get everything put back together and hopefully fix my issue, going to buy a new DVOM just for the sake of it. Now as far as the ammeter bypass ive seen alot of people saying to run a wire from the Alt to the Starter relay with a fusible link, what gauge wire should I buy?
Get it working right first.
Then read this: Some considerations about the charging and wiring upgrade and your worries about
But get it working correctly before you start adding other variables.
Ill take your word for it, thanks
This will be my next step, thanks!I just did exactly what you're doing with both my VR and the by-pass
By-pass is easy. Run a 10 gauge wire from the Alt output to the BAT terminal on the starter relay. Add in a 14 gauge fusible link at the starter relay.
That's it. Electricity follows the path of least resistance and you will notice the AMP meter won't show properly anymore. End of fire hazard in bulkhead connector.
