Thought a few of you might find my way of replacing a 5th wheel plate on an aluminum trailer interesting.
They initially told me to pull the deck off of it to get at the huck bolts. The head broke off of 1st deck screw and the second one broke the Torx driver. I told them no way they could remove the deck and it's not like a wooden deck where you can just move the screw over if you hit an original broken off bolt. They have one spot in their groove in the decking where it meets the crossmember.

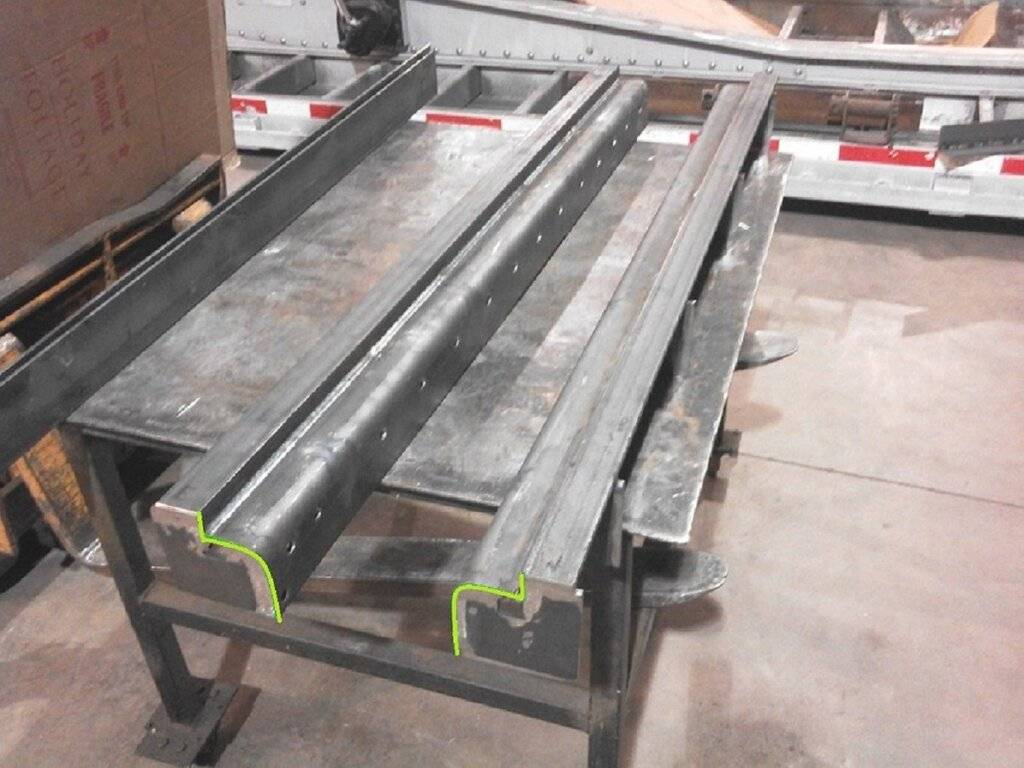

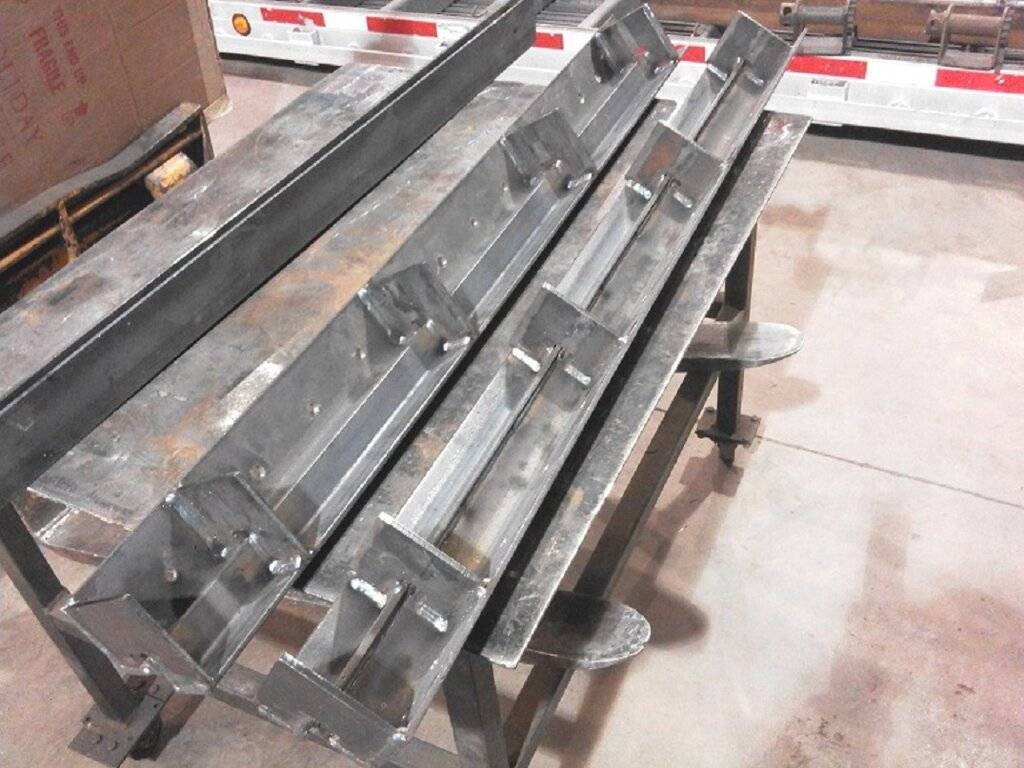

I made the structure out of 1/4" material and the original was 3/16" and badly rusted because it couldn't drain. Also had to build it in sections because the crossmembers overlap and the huck bolts were all decent and tight, so I didn't want to mess with them. I used masking tape and clamped the side rails level with the bottom of the I beam to transfer the bolt locations. The radius in the rails fit the beams perfectly as well. The original structure depended on the bolts for upward shock.
They initially told me to pull the deck off of it to get at the huck bolts. The head broke off of 1st deck screw and the second one broke the Torx driver. I told them no way they could remove the deck and it's not like a wooden deck where you can just move the screw over if you hit an original broken off bolt. They have one spot in their groove in the decking where it meets the crossmember.
I made the structure out of 1/4" material and the original was 3/16" and badly rusted because it couldn't drain. Also had to build it in sections because the crossmembers overlap and the huck bolts were all decent and tight, so I didn't want to mess with them. I used masking tape and clamped the side rails level with the bottom of the I beam to transfer the bolt locations. The radius in the rails fit the beams perfectly as well. The original structure depended on the bolts for upward shock.
has2bmopar
Senior Member

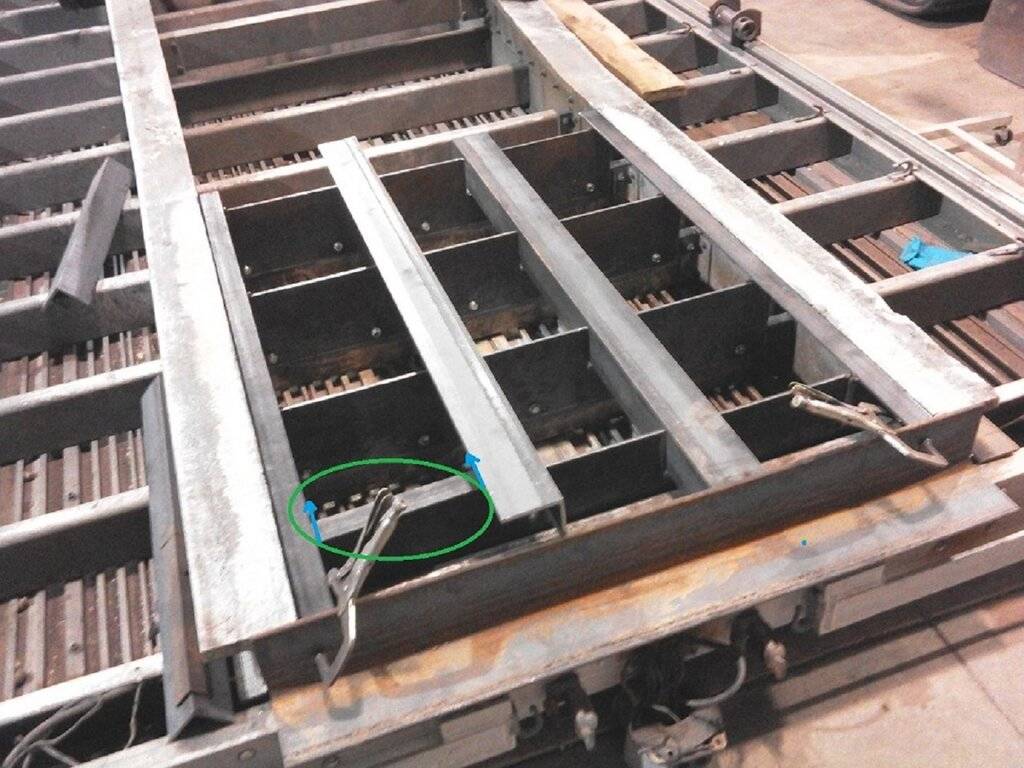

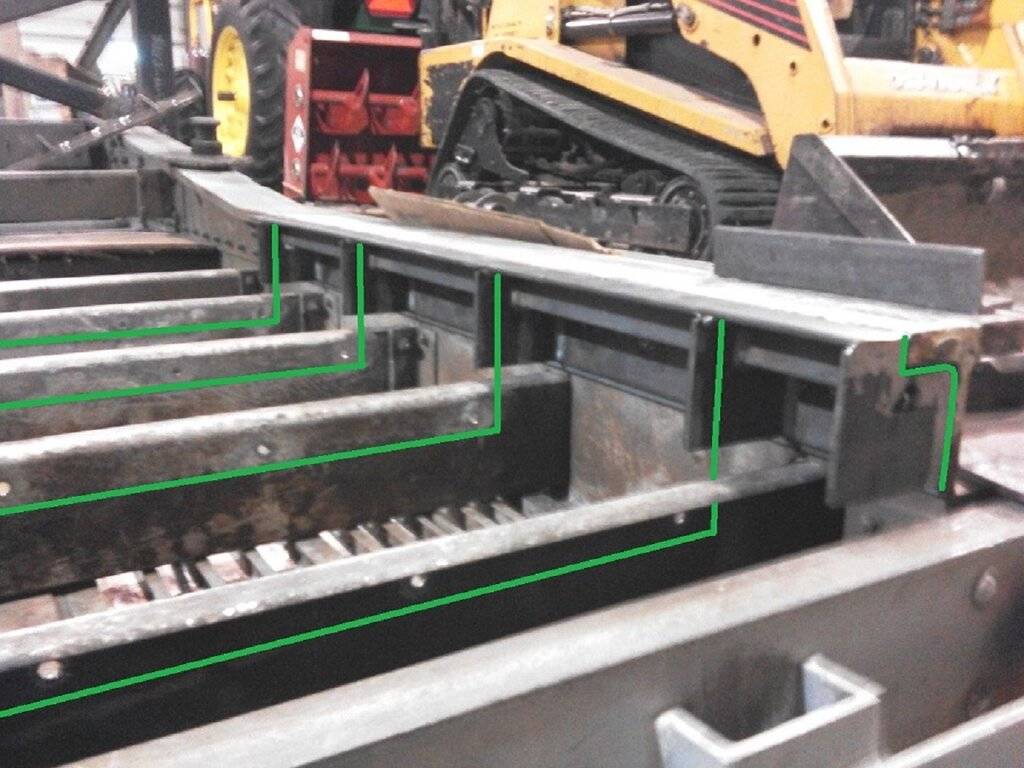

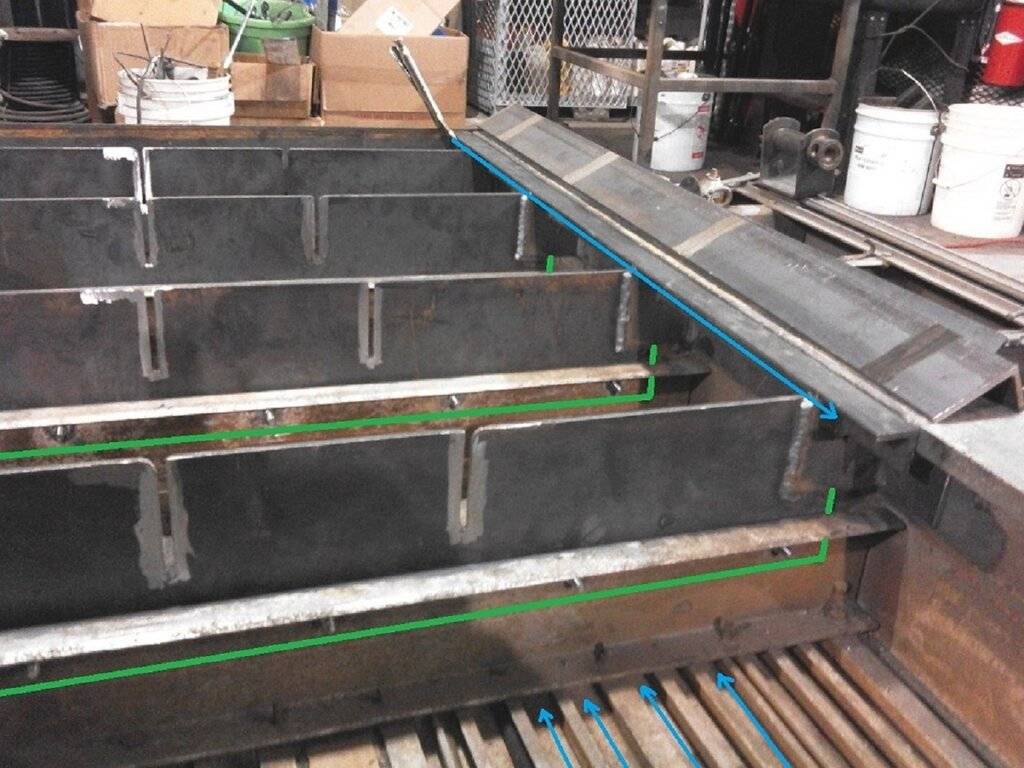

The blue lines represent where water can enter and exit. The water and snow pretty much boils behind the drive axles and there are dozens of open grooves where moisture can blow in. I could't believe how badly rusted the original structure was in about a 10 year old trailer. I left about 3/8" gaps between the angle iron cross pieces that I put on for a plug weld base, so all the compartments could drain.
I painted all the contact surfaces between the steel and aluminum with Eck. Some black goowey crud somewhat resembling cosmoline.
View attachment 394080

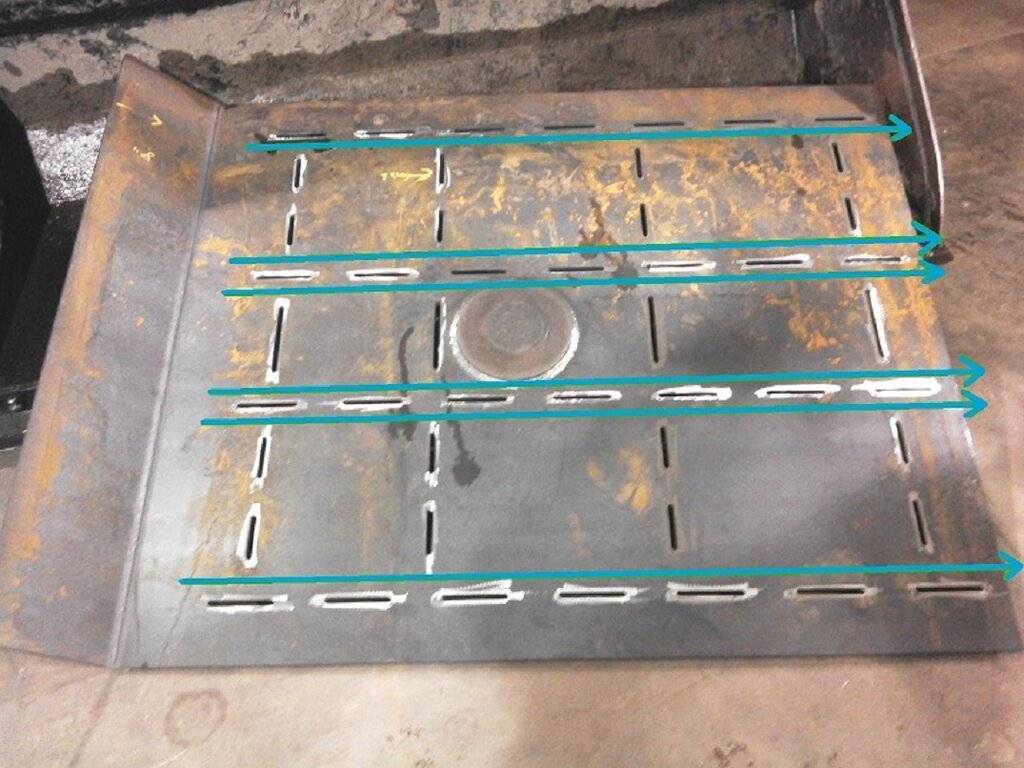

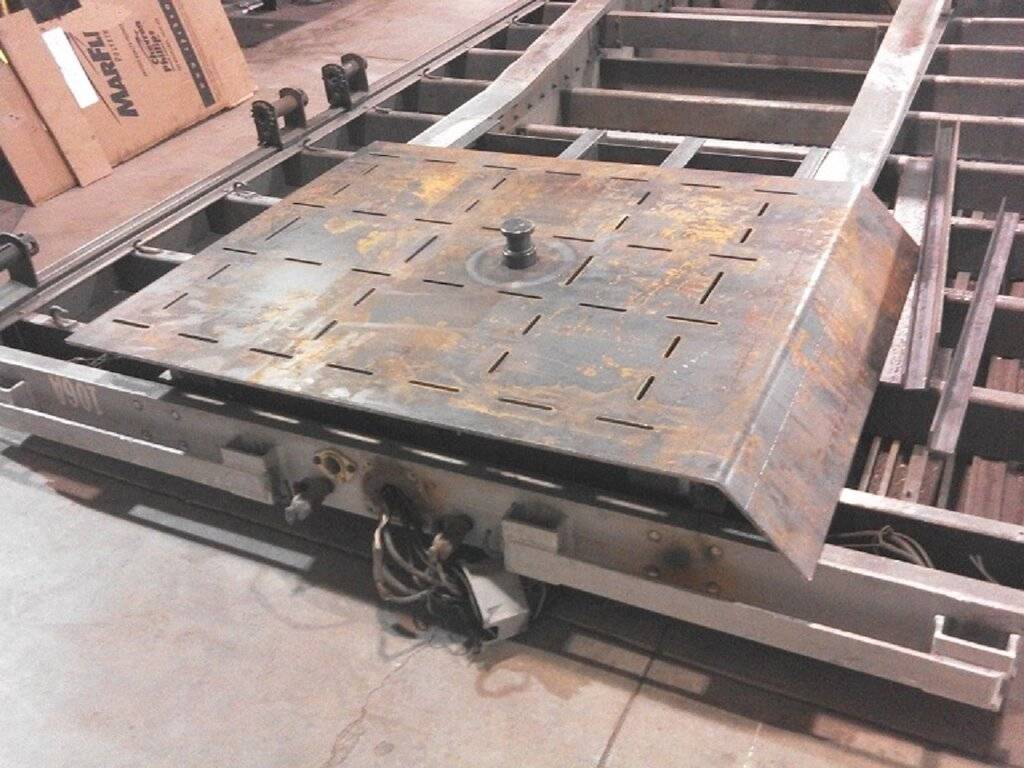

I drew up a detailed pattern for our drafters and had the 3/8" plate cut out on the plas table, then took it over to the hydraulic press brake. The original plate was 5/16" and was bent badly from driving the truck on it's side. Also messed up the holes and sheared off some bolts and tweaked the frame where the front axle mounted. They had a bunch of weird ideas how to shim and do a bunch of office engineering to align it. They finally took my advice and just moved the axle back I believe 20" where everything was straight and true. It was a spread axle and think they were originally about 8-10 feet apart. We mostly just haul mono pole sections and other cell tower structure, so weight capacity wouldn't be an issue moving the axles together a bit. Just had to add a few unions and some air line.

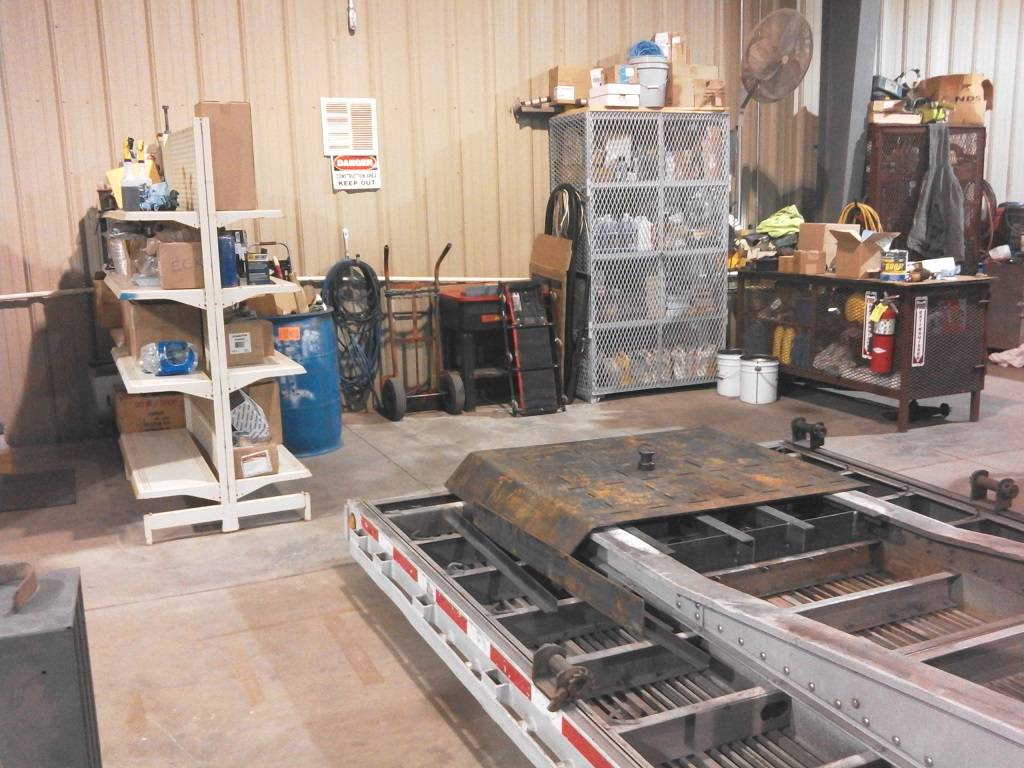

The mill scale is always removed and the plug welding was done with a Miller 452 with .052" wire, so it doesn't take long to fill in all the slots.
I painted all the contact surfaces between the steel and aluminum with Eck. Some black goowey crud somewhat resembling cosmoline.
View attachment 394080
I drew up a detailed pattern for our drafters and had the 3/8" plate cut out on the plas table, then took it over to the hydraulic press brake. The original plate was 5/16" and was bent badly from driving the truck on it's side. Also messed up the holes and sheared off some bolts and tweaked the frame where the front axle mounted. They had a bunch of weird ideas how to shim and do a bunch of office engineering to align it. They finally took my advice and just moved the axle back I believe 20" where everything was straight and true. It was a spread axle and think they were originally about 8-10 feet apart. We mostly just haul mono pole sections and other cell tower structure, so weight capacity wouldn't be an issue moving the axles together a bit. Just had to add a few unions and some air line.
The mill scale is always removed and the plug welding was done with a Miller 452 with .052" wire, so it doesn't take long to fill in all the slots.
Last edited:
